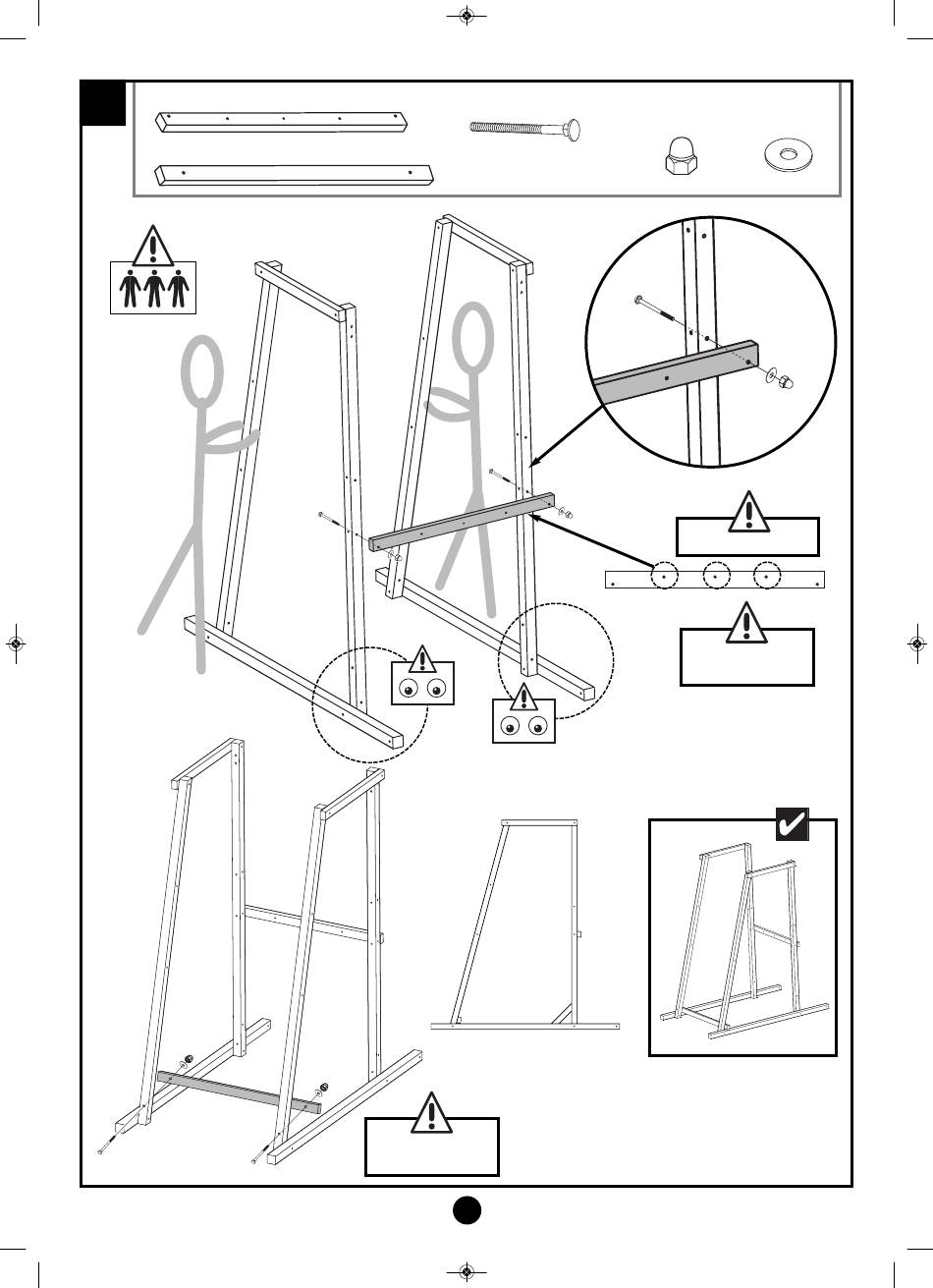

TP476 Kingswood2 Tower In0476-E 05 15.qxp_TP476 Kingswood2 Tower In0476-E 05 15 14/05/2015 10:24 Page 13
9
MW2070
MW2071
MW2071
Rear Platform Rail 1206mm
Front Brace Bar 1346mm
x1
Do not fully tigthen
x1
M8 x 120mm Bolt x4
FA8434
MW2070
Note:
13
M8 Nylon Insert
M8 x 25mm
Dome Nut
Large washer
FA7184
FA8163
x4
x4
120mm
M8
M8
Note: 3 holes on top
Note:
Do not fully tigthen
TP Kingswood2 Tower
