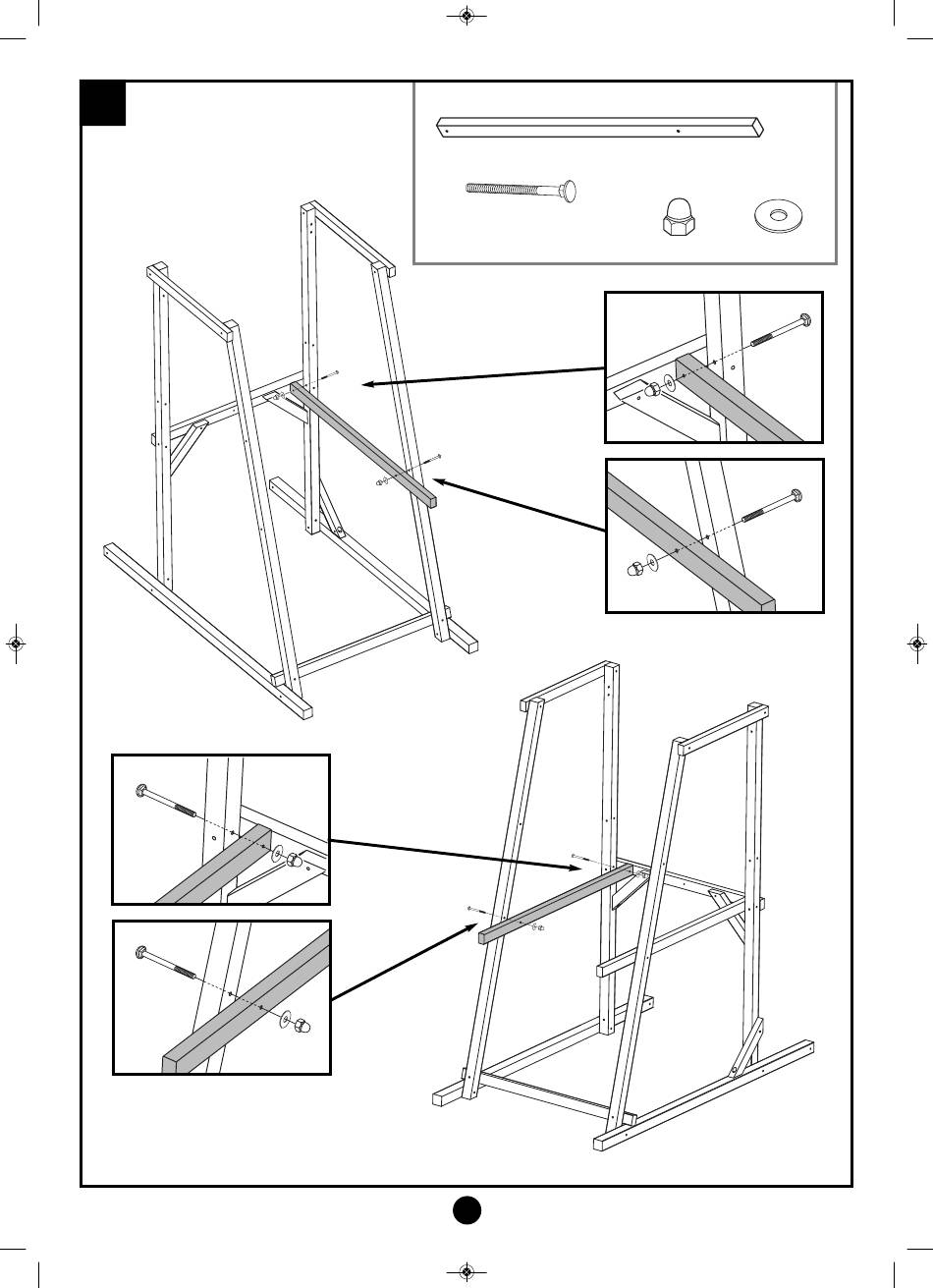

MW2067 Platform Deck Support 1582mm
M8 x 120mm Bolt x4
FA8434
15
x2
M8 Nylon Insert M8 x 25mm
Large washer
Dome Nut
FA8163 FA7184
x4 x4
TP Kingswood2 Tower
