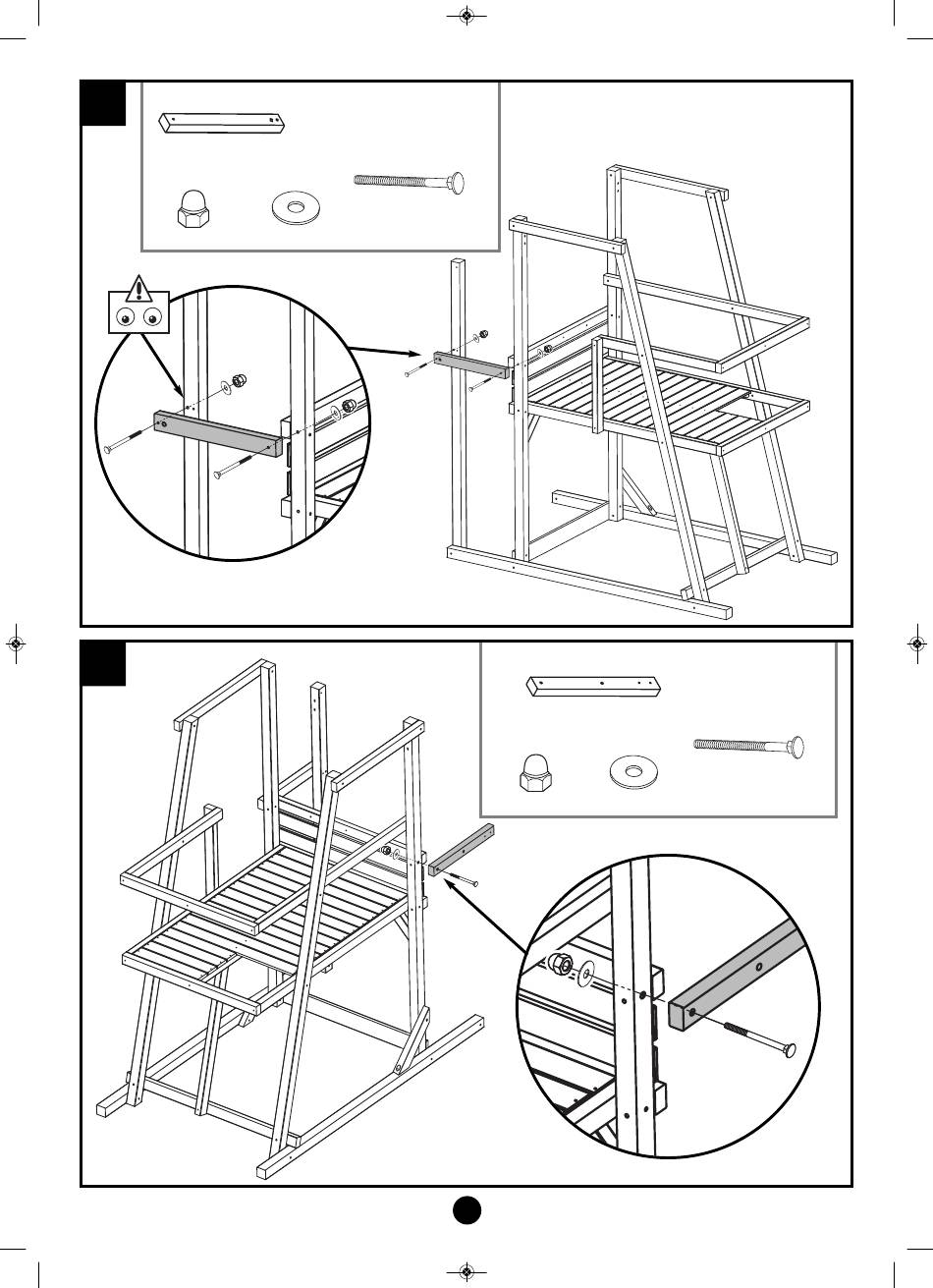

21
MW2076
M8 Nylon Insert
Dome Nut
FA8163
x2
22
Climbing Wall Top Brace 573mm
M8 x 25mm M8 x 120mm Bolt x2
Large washer
FA8434
FA7184
x2
x1
MW2083 Balcony Deck Support 617mm
M8 Nylon Insert M8 x 25mm
Large washer
Dome Nut
FA8163 FA7184
x1
22
x1
M8 x 120mm Bolt x1
FA8434
x1
