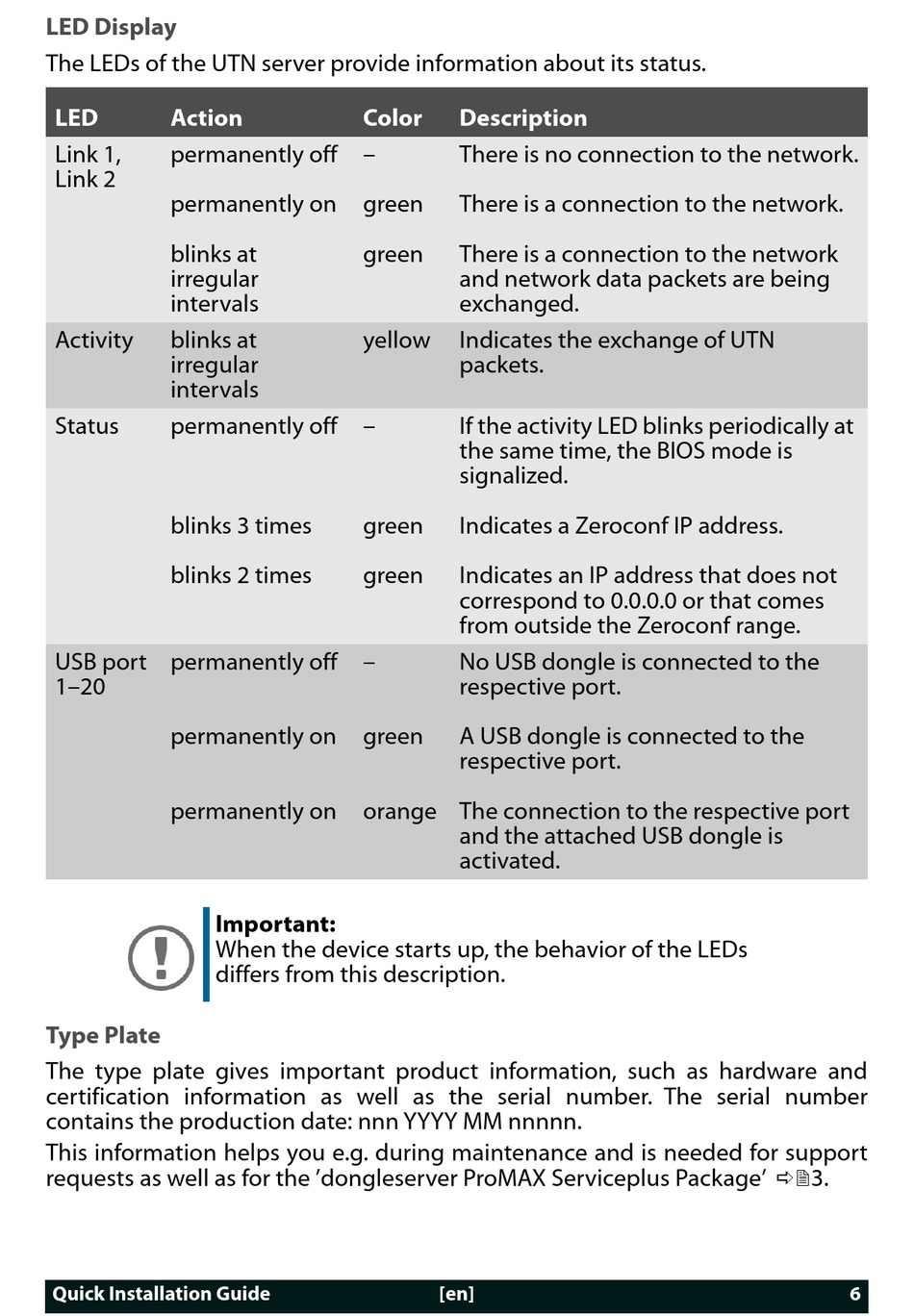

LED Display

The LEDs of the UTN server provide information about its status.
LED Action
Link 1, permanently off
Link 2
permanently on
blinks at
irregular
intervals
Activity blinks at
irregular
intervals
Status permanently off
blinks 3 times
blinks 2 times
USB port permanently off
1–20
permanently on
permanently on
Important:
When the device starts up, the behavior of the LEDs
differs from this description.

Type Plate

The type plate gives important product information, such as hardware and
certification information as well as the serial number. The serial number
contains the production date: nnn YYYY MM nnnnn.
This information helps you e.g. during maintenance and is needed for support
requests as well as for the 'dongleserver ProMAX Serviceplus Package'
Quick Installation Guide
Color Description
– There is no connection to the network.
green There is a connection to the network.
green There is a connection to the network
and network data packets are being
exchanged.
yellow Indicates the exchange of UTN
packets.
– If the activity LED blinks periodically at
the same time, the BIOS mode is
signalized.
green Indicates a Zeroconf IP address.
green Indicates an IP address that does not
correspond to 0.0.0.0 or that comes
from outside the Zeroconf range.
– No USB dongle is connected to the
respective port.
green A USB dongle is connected to the
respective port.
orange The connection to the respective port
and the attached USB dongle is
activated.
[en]

