TOHATSU MFS 6BZ Benutzerhandbuch Seite 50

48
ENGINE OPERATION
2
3 2
4
7
1. Thrust rod
2. Preset knob
3. Higher
4. Lower
1. Thrust rod
2. Higher
3. Lower
Remark: Thrust rod is for MF and EF, and
preset knob is for EP .
ENOF00053-0
1
3
3
4
ENOF00532-0
1
2 2
3
ENOF00674-B

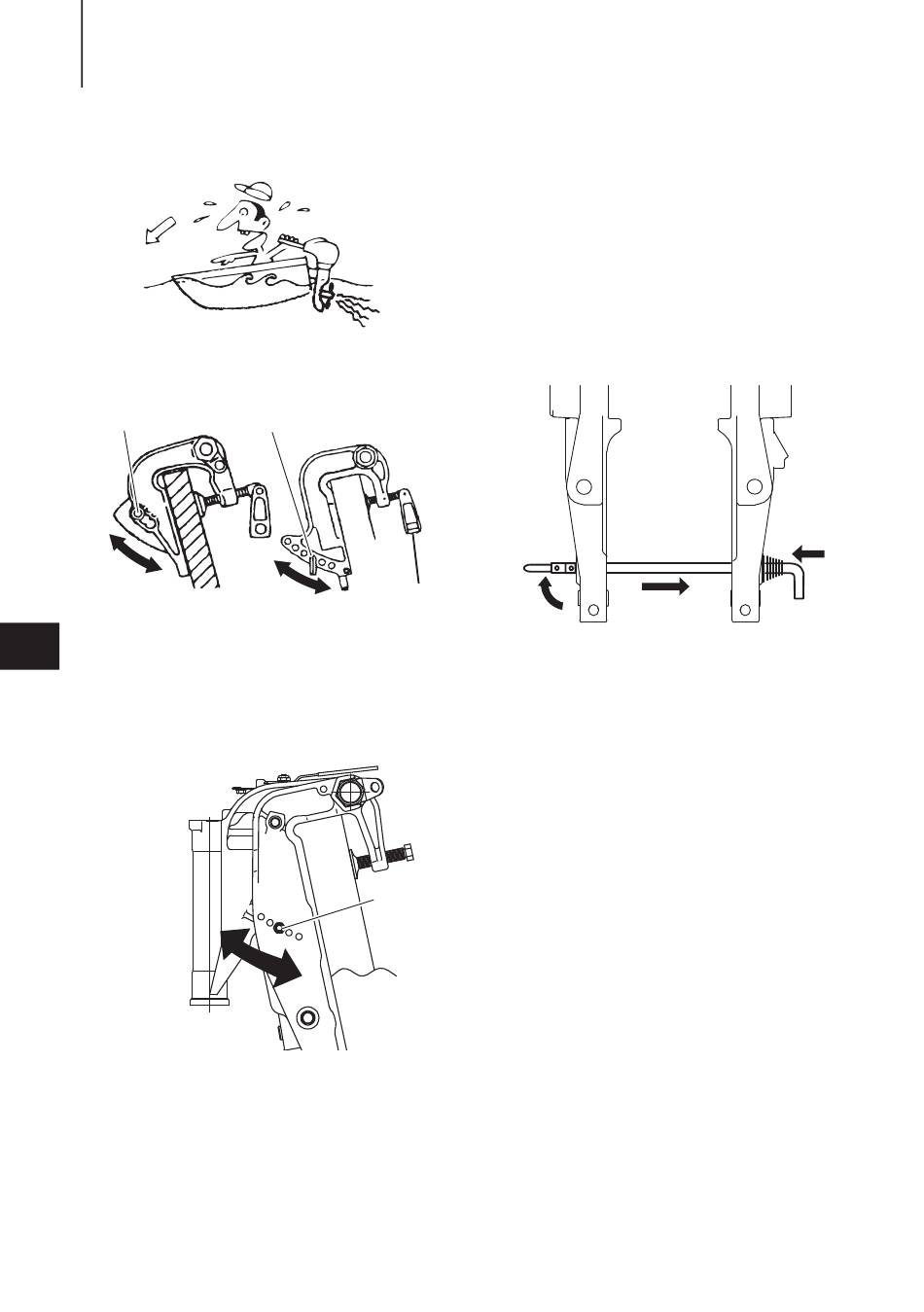

Trim angle adjustment (Manual tilt MF,
EF type)
The transom angle adjustment
1. Stop the engine.
2. Shift into neutral.
3. Raise the outboard motor to the tilt
up position.
4. Change the thrust rod position as
following picture.
2
1. Push in
2. Rise the stopper
3. Pull out
5. Reinstall the thrust rod securely.
6. Gentry lower the outboard.
Trim angle adjustment (Manual tilt RC
type)
The transom angle adjustment
1. Stop the engine
2. Shift into forward.
3. Raise the outboard motor to the tilt
up position.
1
3
ENOF01238-1
