Menu

The main menu can be reached from any screen by pressing the MENU
keys are used to navigate the menu items which can be activated with the OK
button. The BACK button is used to return from sub menus. The main menu consists of the
sub menus Measurement, Calibration, Settings and Info which are explained in detail below.
5.1

Measurement

The sub menu Measurement is used to configure the different options of the vibration
measurement: Measuring unit, parameter, ISO evaluation, display max value.
5.1.1 Measuring unit
The measuring unit and the respective frequency range can be adjusted with this menu. The
options include acceleration a (10 Hz ... 10 kHz), acceleration a (1 kHz ... 10 kHz), velocity v (10
Hz ... 1 kHz) and displacement d (10 Hz ... 200 Hz). This sub menu can also be directly accessed
from the main screen by pressing the left arrow key
5.1.2 Parameter
This sub menu is used to adjust the metric of the measured vibration which is displayed as the
measurement value on the main screen. It is possible to switch between RMS, peak, peak-peak
and crest factor. This sub menu can also be directly accessed from the main screen by pressing
the right arrow key .
.

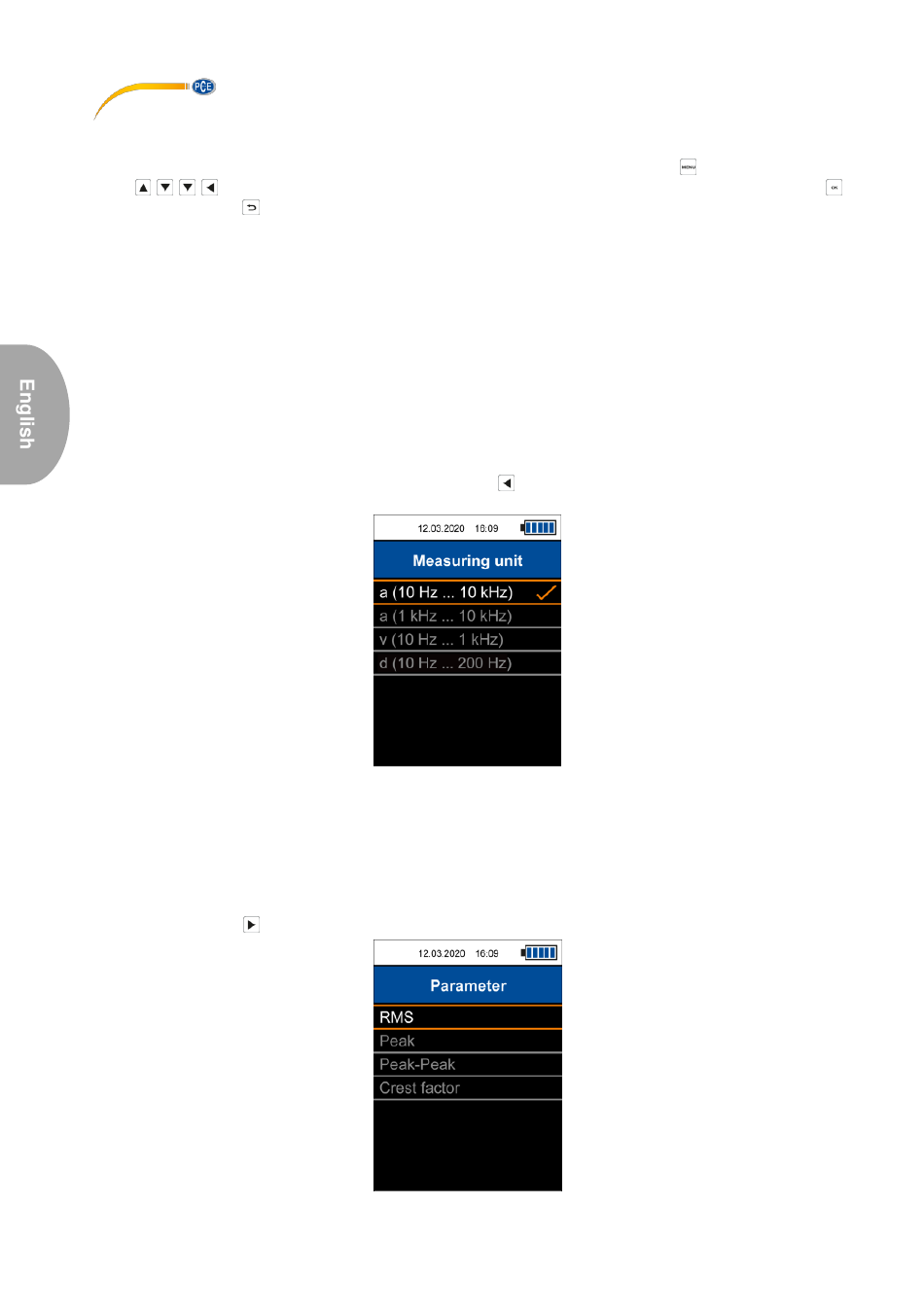

Fig. 5 Measuring unit
Fig. 6 Parameter
