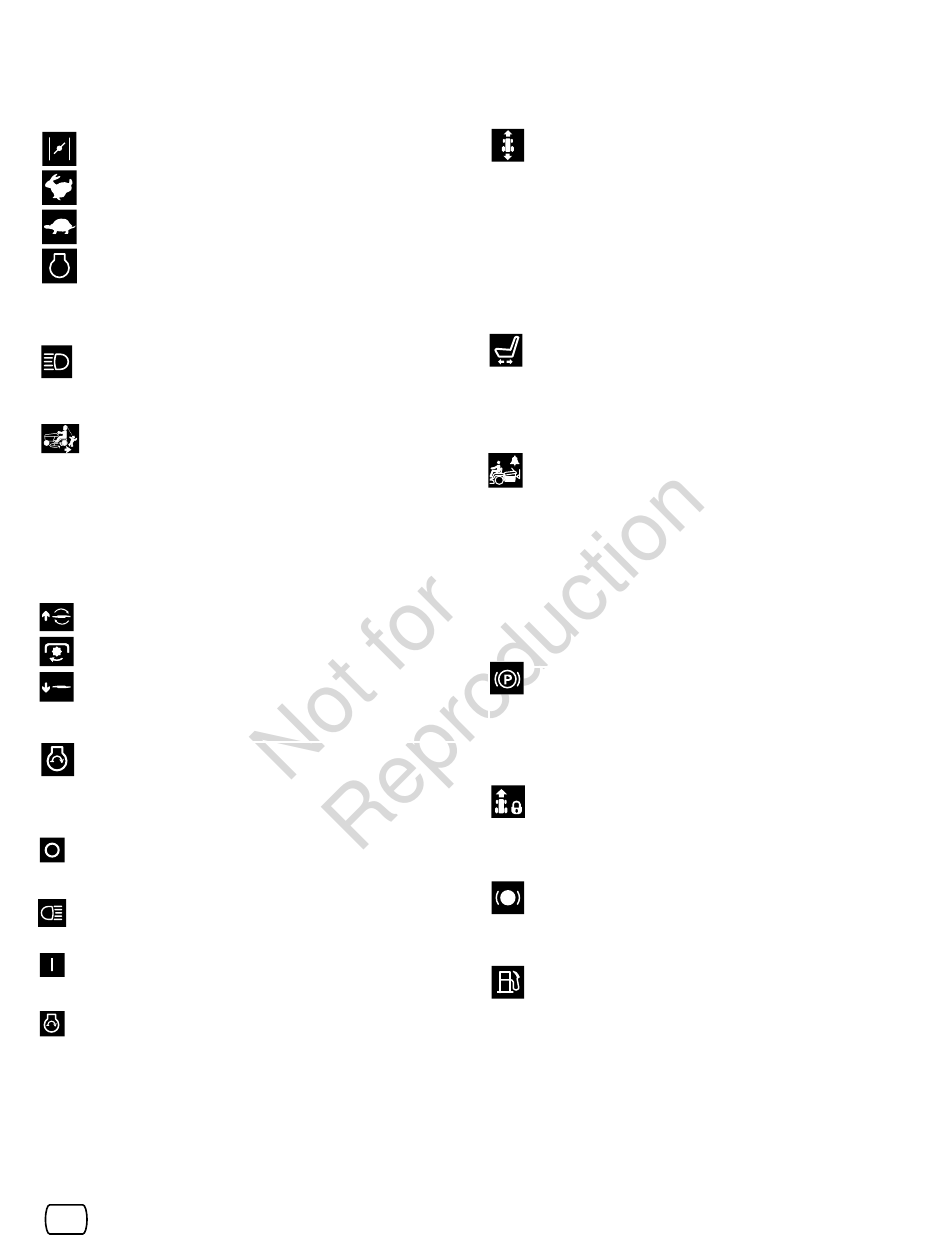

Tractor Controls
Throttle/Choke Control (Choke-A-Matic)
This controls the engine speed and choke (See
Figure 2). Move the throttle/choke control to the
FAST position to increase engine speed, and to the
SLOW position to decrease engine speed. Move
the throttle/ choke control past the FAST position to
the CHOKE position to start a cold engine. A warm
engine may not require choking.
NOTE: Always operate the rider with the throttle/
choke control in the FAST position.
Headlights
This switch turns the tractor headlights on and off.
Reverse Mowing Option (RMO)
The Reverse Mowing Option allows for mowing (or use of
other PTO driven attachments) while traveling in reverse. If
you choose to mow in reverse, turn the RMO key after the
PTO is engaged. The L.E.D. light will illuminate, and the
operator can then mow in reverse. Each time the PTO is en-
gaged the RMO needs to be reactivated if desired.
power Take-Off (pTO) Switch
The PTO (Power Take-Off) switch engages and
disengages attachments that use the PTO. To en-
gage the PTO, pull UP on the switch. Push DOWN
to disengage. Note that the operator must be seated
firmly in the tractor seat for the PTO to function.

Ignition Switch

The ignition switch starts and stops the engine, it has four po-
sitions:
OFF Stops the engine and shuts off the
electrical system.
LIGHTS Allows the headlights to turn on.
ON
RUN Allows the engine to run and powers the
electrical system.
START Cranks the engine for starting.
NOTE: Never leave the ignition switch in the RUN position
with the engine stopped. This drains the battery.
en
Ground Speed Pedals
The tractor's forward ground speed is controlled by the
forward ground speed control pedal. The tractor's reverse
ground speed is controlled by the reverse ground speed con-
trol pedal.
Depressing either pedal will increase ground speed. Note that
the further down the pedal is depressed, the faster the tractor
will travel.
Seat Adjustment lever
The seat can be adjusted forward and back. Move the lever,
position the seat as desired, and release the lever to lock the
seat into position.
Catcher Full Alarm
The "catcher full" alarm sounds when the grass catcher has
been filled with cut grass. When the alarm sounds, disengage
the PTO, travel to the area in which you desire to dump the
grass, then empty the catcher.
NOTE: When using the unit for leaf collection, the alarm may
not be activated by dry leaves.
Parking Brake Knob
This is used to lock the parking brake when the tractor is
stopped. Fully depressing the brake pedal and pulling up on
the knob engages the parking brake.
Cruise Control
The cruise control is used to lock the ground speed control in
forward. The cruise control has five lock positions.
Brake Pedal
Depressing the brake pedal applies the tractor brake.
Fuel Tank
Pull up tractor hood to access the fuel tank. Turn cap counter-
clockwise to remove.
17
