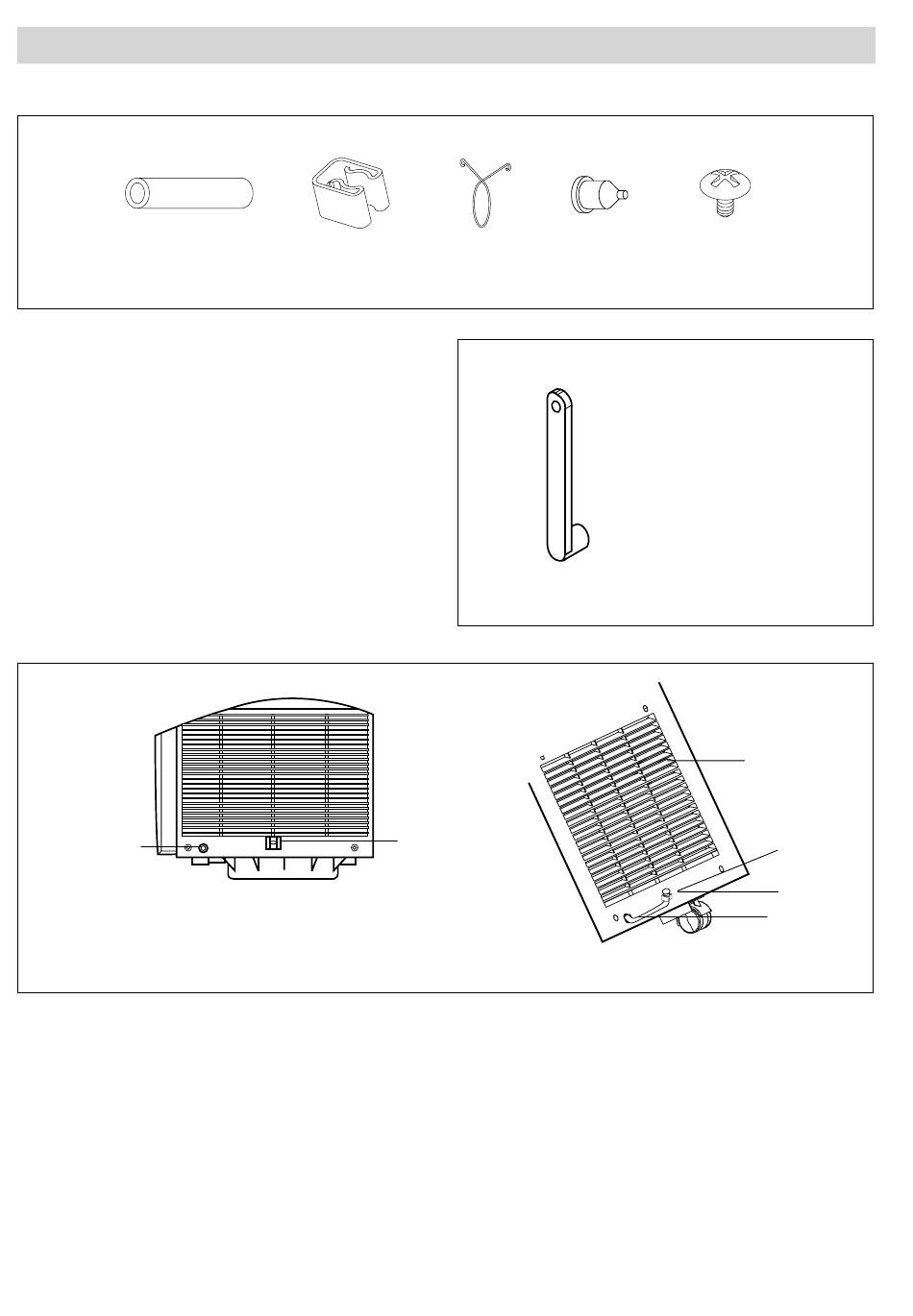

Instruction to install drainage pipe accessories

Parts included:

Drainage pipe

Installation Method:

Caution:
- To prevent drained water from staining the floor or carpet install
the drainage pipe before starting the unit.
- Keep the L-type rubber plug carefully taken from drainage hole
to avoid loss.
1 . Take out the L-type rubber plug from drainage hole on the
unit.
2 . Install the rubber plug in the drainage pipe.
3 . Fix the clamp on the rear plate with screws.
4 . Insert one end of the drainage pipe into the bottom of the
drainage hole,and then install pipe hoop to prevent
water leakage.
5 . Fix the drainage pipe in the clamp.
Drainage hole
GB - 10
Clamp Pipe hoop
Clamp
Rubber plug Screw
L - type rubber plug
Rear plate
Rubber plug
Clamp
Drainage
pipe
