Charging Instructions

1. When the charging process is interrupted, press the ON/OFF
button, and then restart the charger.
2. To turn off the charger by pressing and holding the ON/OFF but-
ton for 3 seconds.
3. To restart the charger by pressing and holding the ON/OFF but-
ton for 3 seconds.

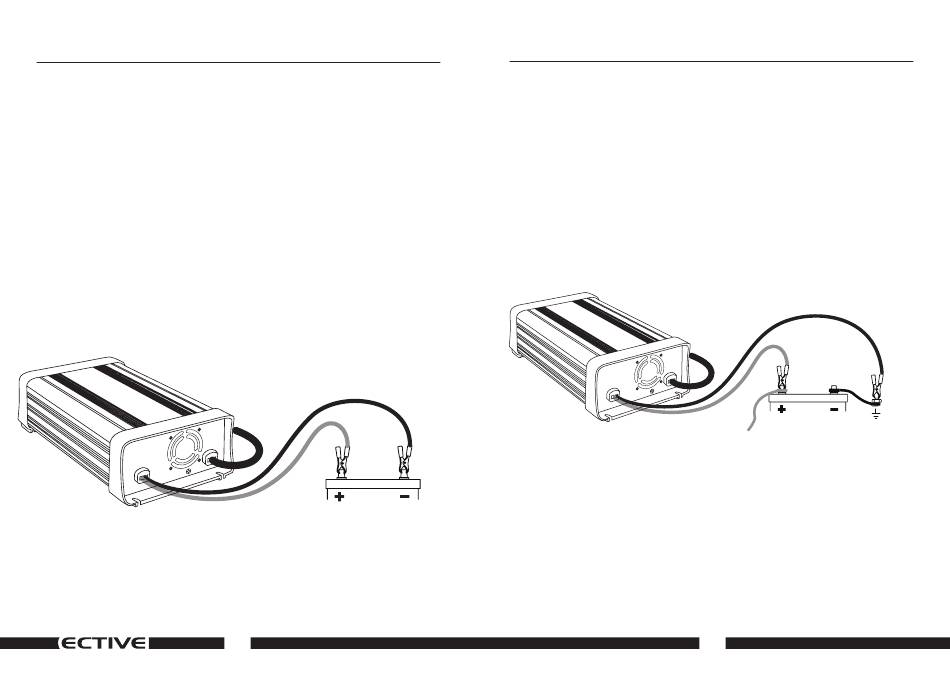

Step 1 A: Connection out of the vehicle
Connect the RED lead (battery clip) from the charger to the Posi-
tive (+) battery post. Connect the BLACK lead (battery clip) from
the charger to the Negative (-) battery post.
F A N
Black
Red
Connection outside
vehicle
44
Charging Instructions
Step 1 B: Connection in the vehicle
Determine if the vehicle is Positively (+) or Negatively (-) earthed.
Negatively earthed vehicles have a cable (usually black) from the
Negative battery terminal to the vehicle's chassis.
Negatively earthed (most vehicles)
Connect the RED lead (battery clip) from the charger to the Posi-
tive (+) battery terminal. Connect the BLACK lead (battery clip)
from the charger to the vehicle's chassis away from the fuel line
or moving parts.
FA N
Black
Red
Connection inside
vehicle (negatively earthed)
