Technical Information
Interconnections
Interconnections

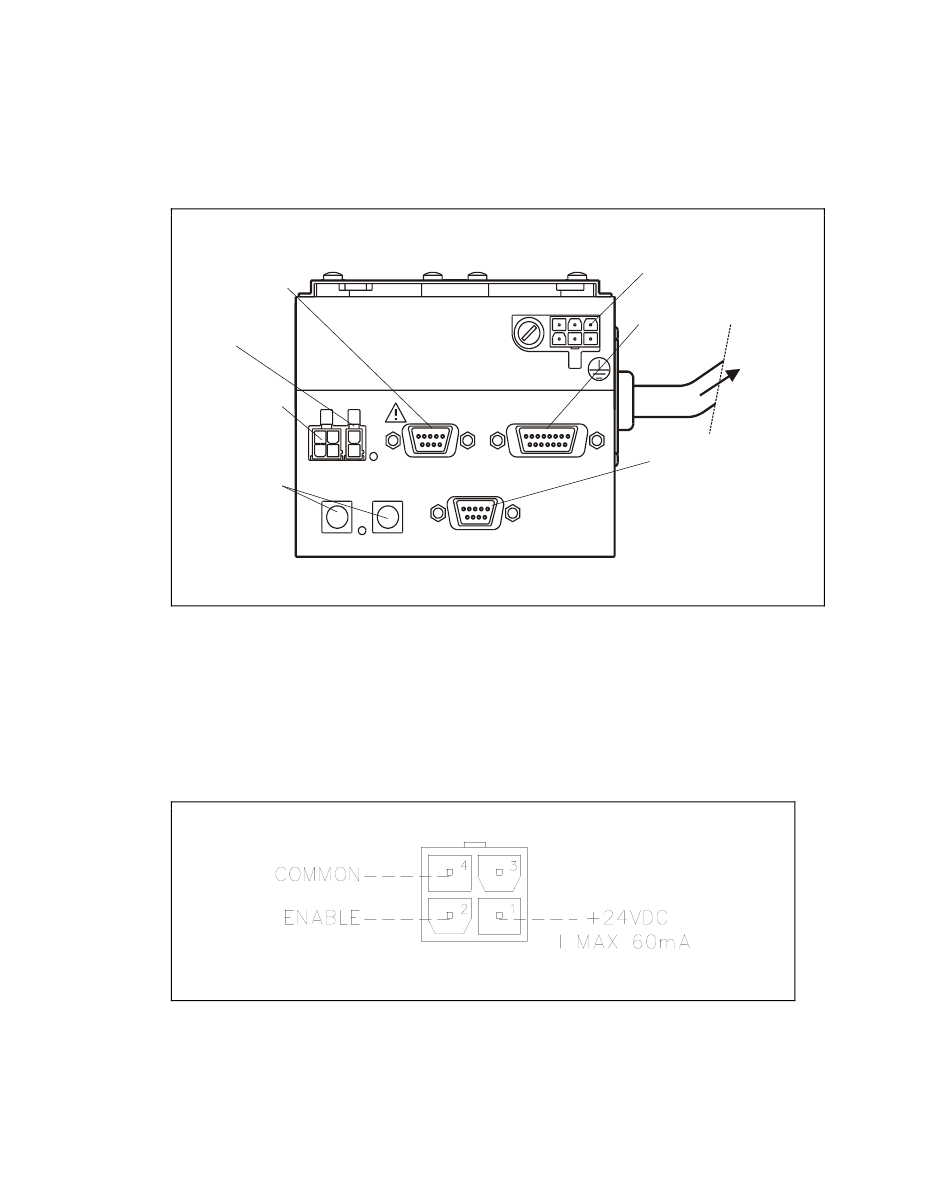

The following figure shows the TV 301-P interconnections.
VENT VALVE
Figure 2
P3 – Vent
Figure 3
This is a dedicated 24 Vdc connector to control the optional vent
valve.
178/224
SERIAL LINE
EXTERNAL
FAN
LD1
STATUS
P3
P5
VENT
ADDRESS
FAN
ADDRESS
STATUS
MSD
LSD
STATUS
Interconnections
P3 – Vent
TV 301-P Navigator Controller User Manual / 87-901-001-01 (B)
MAINS
FUSE TYPE
250V T 8A
J6 SERIAL
J5 IN-OUT
J2 PROFIBUS
MAINS POWER
IMPUT/OUPUT LINE
TO PUMP
PROFIBUS LINE
