Charging Instructions

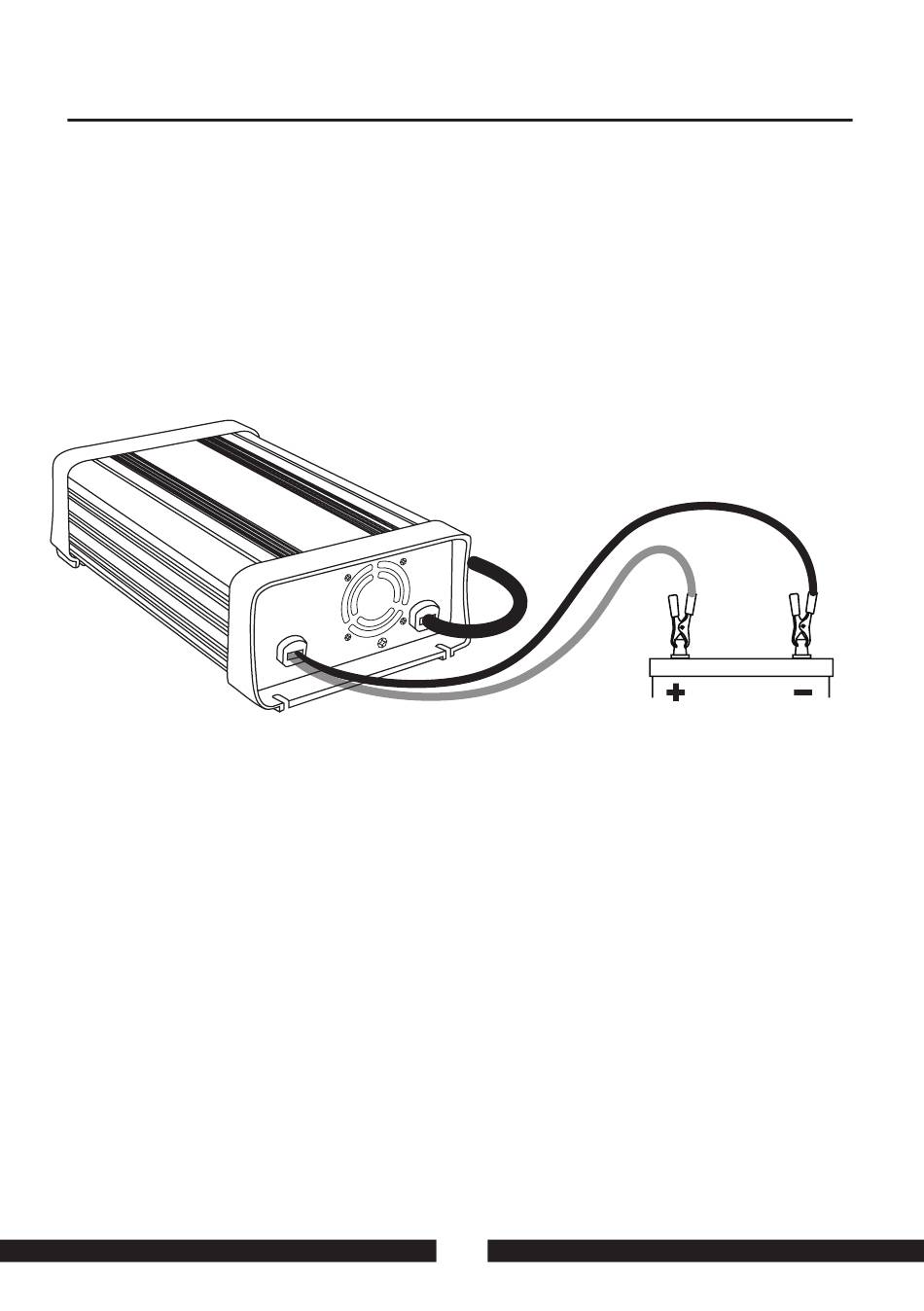

Step 2 A: Connection out of the vehicle
Connect the RED lead (battery clip) from the charger to the Posi-
tive (+) battery post. Connect the BLACK lead (battery clip) from
the charger to the Negative (-) battery post.
Black
Red
F A N
Connection outside
vehicle
Step 2 B: Connection in the vehicle
Determine if the vehicle is Positively (+) or Negatively (-) earthed.
Negatively earthed vehicles have a cable (usually black) from the
Negative battery terminal to the vehicle's chassis.
