Installation

Connection

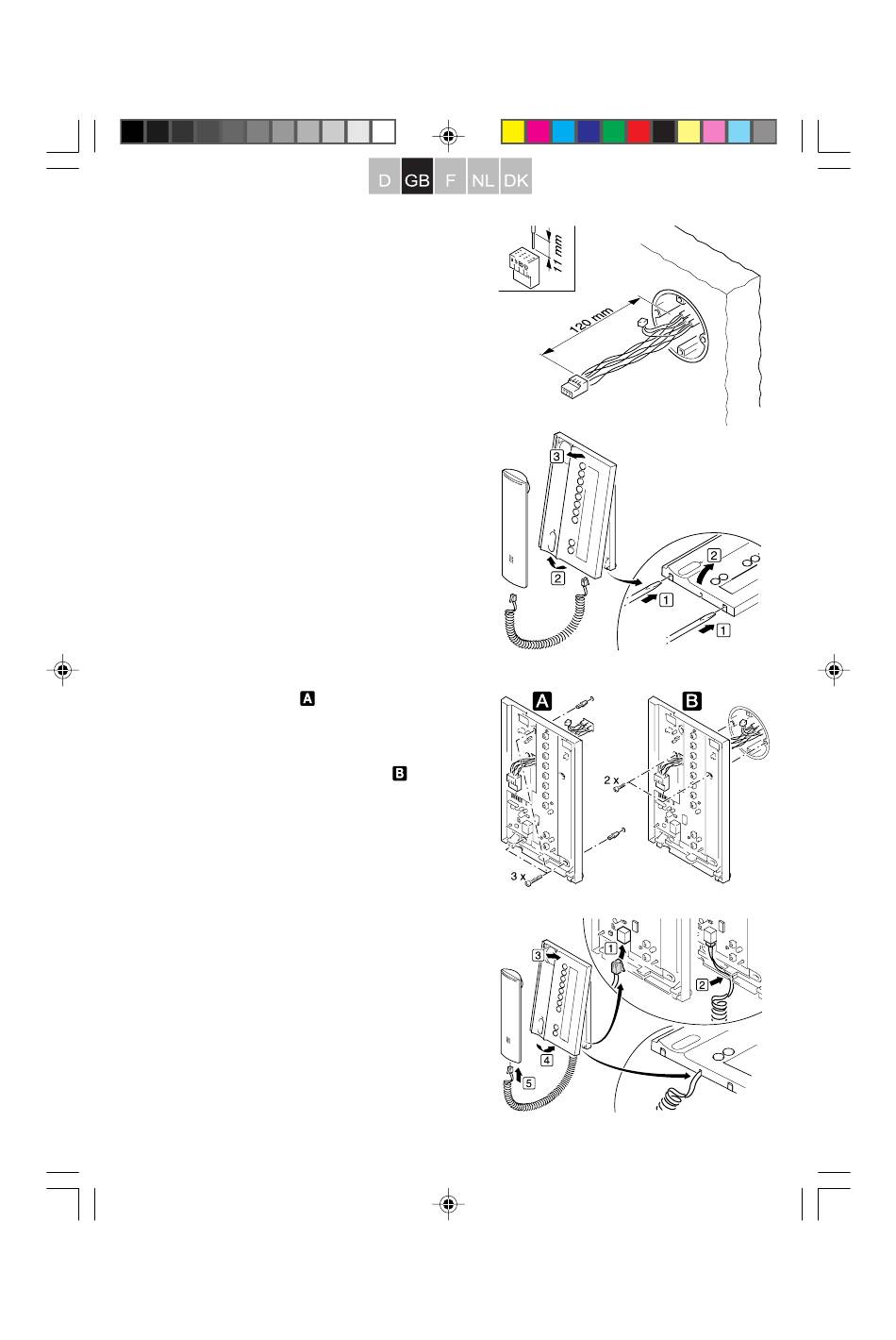

• Dismantle the cable (out-of-the-wall length:
min. 120 mm) and connect the special con-
tact plug according to the wiring diagram (see
page 2). Connect the screen through with a
suitable contact plug.
• Press the fastener on the bottom of the tele-
phone smoothly and lift off the cover.
• Guide the contact plug through the opening of
bottom section (2) of the telephone
Mounting on the wall
• Screw the bottom section of telephone on the
wall. Use the corresponding holes.
Mounting on a flush-mounted box
• Screw the bottom section of telephone on the
box. Use the corresponding holes.
• Plug the contact plug onto the printed circuit
board
• Plug the black connector of the spiral cord into
the jack of the printed circuit board (1).
• Guide the cord through the strain reliev.
• Remount the front lid of the telephone on the
upper edge (3) and snap the lower edge into
position.
• Plug the transparent connector of the spiral
cord into the handset (5).
