HELIX P ONE Bedienungsanleitung Seite 21

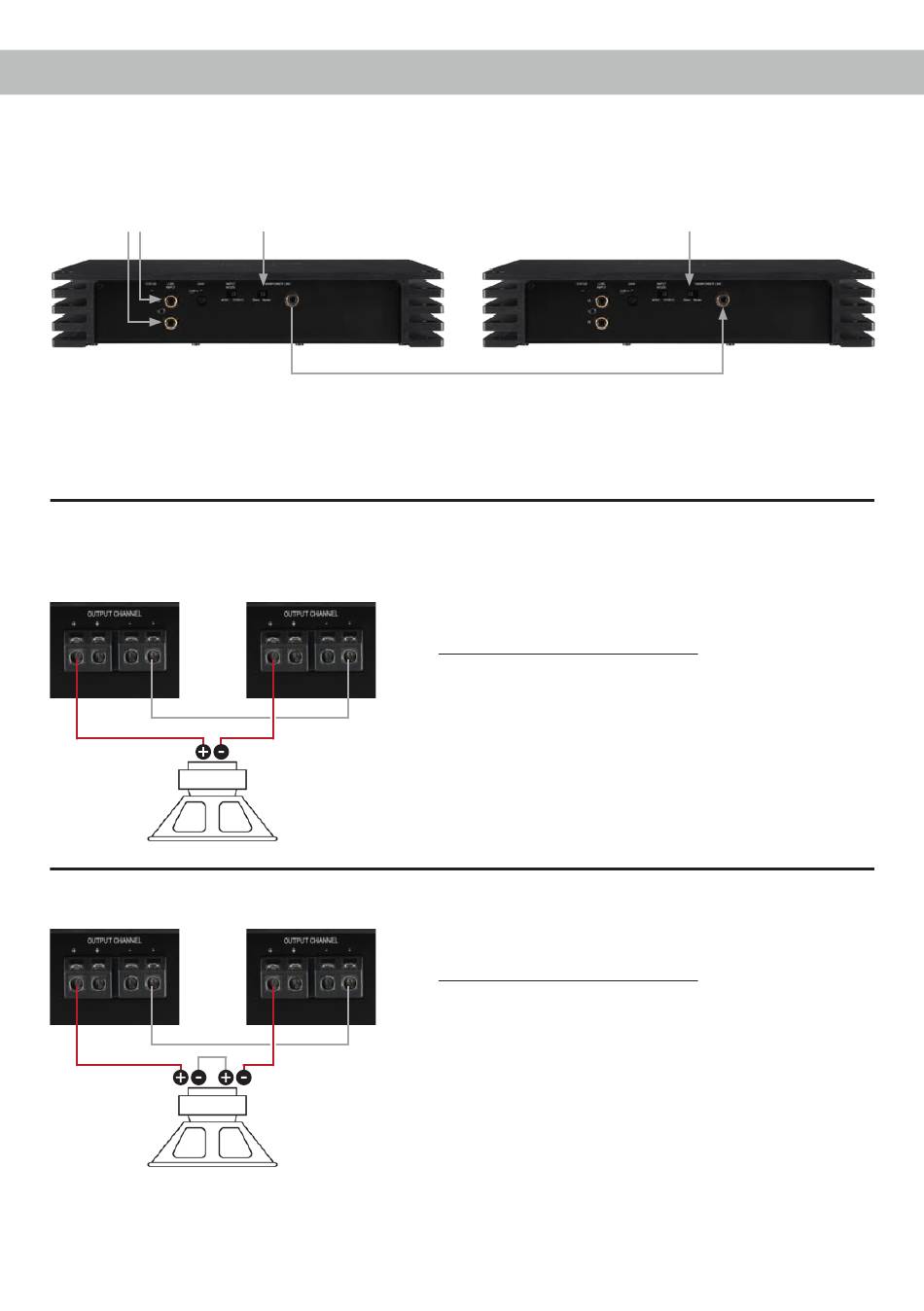

Example configurations for TwinPower Link operation
Master
RCA / Cinch signal
from the radio
Important: The filter settings for the high- and lowpass must be adjusted in an upstream DSP or DSP am-
plifier. The GAIN setting is assumed by the master amplifier.
* It is sufficient to connect only one input channel (see page 22, item 1).
Master
Master
Amplifier connection in TwinPower Link operation
Switch setting:
Master
Speaker connection in TwinPower Link operation
Slave
Slave
RCA / Cinch cable
One subwoofer with one voice coil
(single voice coil)
RMS output power ≤ 1% THD+N:
1 x 4 Ohms: 1,760 Watts
1 x 2 Ohms: 3,000Watts
Note: The negative terminals of both amplifiers have to
be connected by using a speaker wire. The size should
be similar to the speaker wires which are used for the
subwoofer connection.
One subwoofer with dual voice coil in mono
operation (dual voice coil)
RMS output power ≤ 1% THD+N:
2 x 4 Ohms: 1,000 Watts
2 x 2 Ohms: 1,760 Watts
2 x 1 Ohm: 3,000 Watts
Note: The negative terminals of both amplifiers have to
be connected by using a speaker wire.
The negative terminal of the first voice coil has to be con-
nected to the positive terminal of the second voice coil.
The gauge of the wires should be similar to the speaker
wires which are used for the subwoofer connection.
Slave
Switch setting:
Slave
21
