Occupancy button
When the Occupancy button is held depressed for more than 5
seconds, the controller changes operating mode to Unoccupied,
regardless of the current operating mode.
If you press the Occupancy button for less than 5 seconds when the
controller is in operating mode Unoccupied or the preset operating
mode, the controller changes to operating mode Bypass. If you press
the button for less than 5 seconds when the controller is in Bypass,
it changes operating mode to the Preset operating mode. After a
configurable time in Bypass (FS=2 hours), the controller returns to the
preset operating mode.
Open window
Heating and cooling are disconnected.
Setpoint
Local setpoint displacement (+/-3°C) set with the knob on the front of
the controller.
In Occupied mode, the controller operates from a heating setpoint
(22°C), or a cooling setpoint (24°C) that can be changed locally using
the DIP switches and local setpoint displacement.
Switching between heating and cooling setpoints is done automatical-
ly in the controller depending on the heating and cooling requirement.
The controller's control setpoint is the same as the current setpoint
plus/minus the local setpoint displacement.
Frost protection
Independent of the operating mode, the heating control is forced on
when the room temperature drops below 8°C. Return to normal con-
trol occurs automatically when the room temperature exceeds 8°C.
Condensation detector
If there is condensation, the cooling control is blocked. Return to nor-
mal control occurs automatically when condensation ceases.
Indications
RC-TO has an LED shaped like a thermometer on the front. A red
indication is shown when heating control is functional and a blue
indication when cooling control is active. No LED indication shows
that neither heating nor cooling control is active. A flashing red/blue
indication shows that a setting is incorrect.
Actuator exercise
All actuators are exercised. The exercise takes place at intervals of
23 hours. An opening signal is sent to the actuator for 120 s (the ac-
tuator running time). Then a closing signal is sent for the same length
of time and the exercise is finished.
This product carries the CE mark.
For more information, see www.regincontrols.com.
Contact
AB Regin, Box 116, 428 22 Kållered, Sweden
Tel: +46 31 720 02 00, Fax: +46 31 720 02 50
www.regin.se, info@regin.se
RC-TO
INSTRUKTION
SV
REGIO RC-TO
i
Läs denna instruktion innan produkten
monteras och ansluts
Rumsregulator med utgångar för två ventiler
med trepunktsställdon
RC-TO är en rumsregulator i Regio Mini-serien avsedd att styra
värme och kyla i efterbehandlingssystem. Den har fyra digitala
utgångar för styrning av två ventiler med trepunktsställdon (öka-
minska). Montage sker direkt på vägg eller eldosa. Regulatorn har ej
kommunikationsanslutning.
Tekniska data
Matningsspänning 18...30 V AC, 50...60 Hz
Egenförbrukning 2,5 VA
Omgivningstemperatur 0...50°C
Omgivande luftfuktighet Max 90% RH
Lagringstemperatur -20...+70°C
Inbyggd temperaturgivare Typ NTC, mätområde 0...50°C,
mätnoggrannhet +/-0,5°C vid 15...30°C
Gångtid, 3-punktsställdon 120 s
Ingångar och utgångar Se inkopplingsbilder och tabell nedan
Anslutningsplintar Av hisstyp för kabelarea max 2,1 mm
Skyddsklass IP20
Material hölje Polycarbonat, PC
Vikt 110 g
Mått 95 x 95 x 31 mm

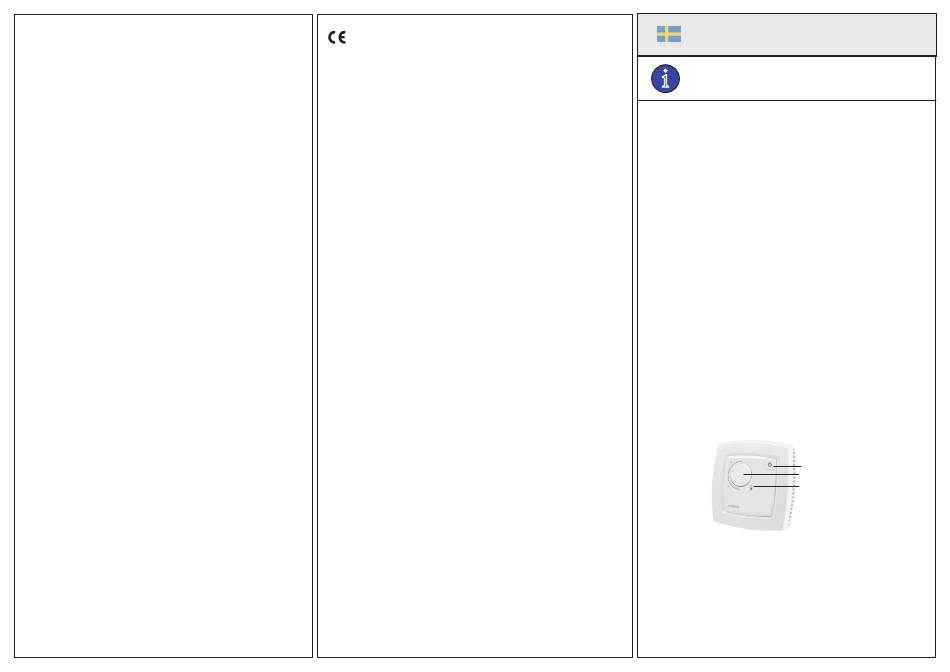

Närvaroknapp
Börvärdesknapp
Lysdiod

Installation

Montera regulatorn på en plats med för rummet representativ tem-
peratur. Lämplig placering är ca 1,6 m över golvet, utan omgivande
hinder för luftcirkulation. Ta av ramen genom att trycka in låshaken i
nederkanten av kåpan med en skruvmejsel. Se figur 1.
