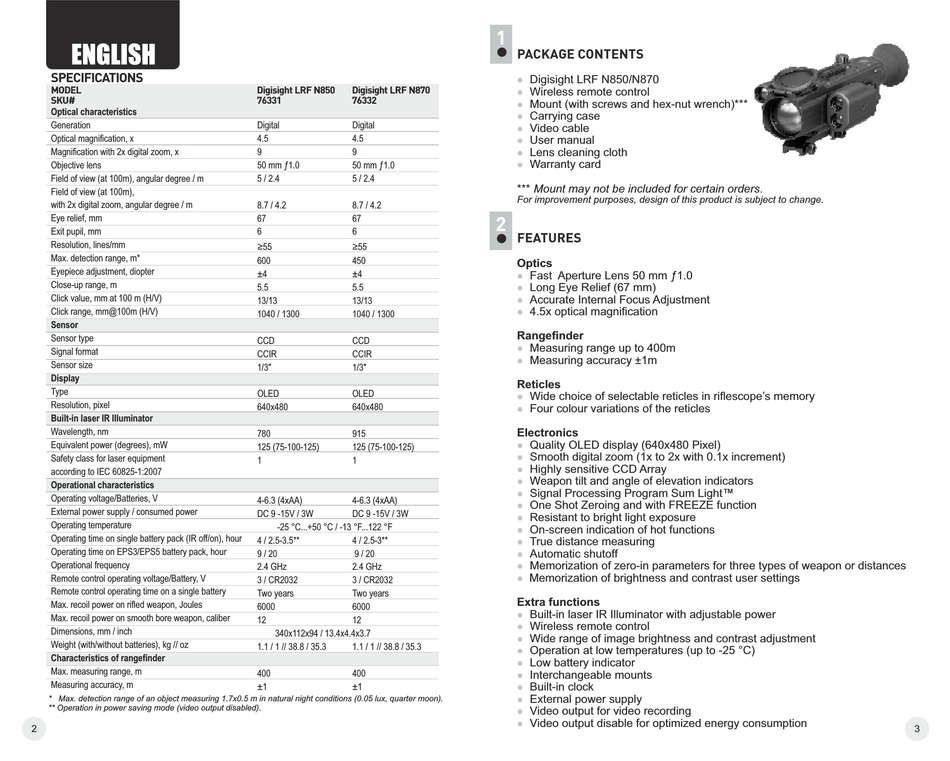

SPECIFICATIONS

MODEL
SKU#
Optical characteristics
Generation
Optical magnification, x
Magnification with 2x digital zoom, x
Objective lens
Field of view (at 100m), angular degree / m
Field of view (at 100m),
with 2x digital zoom, angular degree / m
Eye relief, mm
Exit pupil, mm
Resolution, lines/mm
Max. detection range, m*
Eyepiece adjustment, diopter
Close-up range, m
Click value, mm at 100 m (H/V)
Click range, mm@100m (H/V)
Sensor
Sensor type
Signal format
Sensor size
Display
Type
Resolution, pixel
Built-in laser IR Illuminator
Wavelength, nm
Equivalent power (degrees), mW
Safety class for laser equipment
according to IEC 60825-1:2007
Operational characteristics
Operating voltage/Batteries, V
External power supply / consumed power
Operating temperature
Operating time on single battery pack (IR off/on), hour
Operating time on EPS3/EPS5 battery pack, hour
Operational frequency
Remote control operating voltage/Battery, V
Remote control operating time on a single battery
Max. recoil power on rifled weapon, Joules
Max. recoil power on smooth bore weapon, caliber
Dimensions, mm / inch
Weight (with/without batteries), kg // oz
Characteristics of rangefinder
Max. measuring range, m
Measuring accuracy, m
* Max. detection range of an object measuring 1.7x0.5 m in natural night conditions (0.05 lux, quarter moon).
** Operation in power saving mode (video output disabled).
2
Digisight LRF N850 Digisight LRF N870
76331 76332
Digital Digital
4.5 4.5
9 9
50 mm ƒ1.0 50 mm ƒ1.0
5 / 2.4 5 / 2.4
8.7 / 4.2 8.7 / 4.2
67 67
6 6
≥55 ≥55
600 450
±4 ±4
5.5 5.5
13/13 13/13
1040 / 1300 1040 / 1300
CCD CCD
CCIR CCIR
1/3" 1/3"
OLED OLED
640х480 640х480
780 915
125 (75-100-125) 125 (75-100-125)
1 1
4-6.3 (4xAA) 4-6.3 (4xAA)
DC 9 -15V / 3W DC 9 -15V / 3W
-25 °C...+50 °C / -13 °F...122 °F
4 / 2.5-3.5** 4 / 2.5-3**
9 / 20 9 / 20
2.4 GHz 2.4 GHz
3 / CR2032 3 / CR2032
Two years Two years
6000 6000
12 12
340x112x94 / 13.4x4.4x3.7
1.1 / 1 // 38.8 / 35.3 1.1 / 1 // 38.8 / 35.3
400 400
±1 ±1

PACKAGE CONTENTS

Digisight LRF N850/N870

Wireless remote control

Mount (with screws and hex-nut wrench **

Carrying case

Video cable

User manual

Lens cleaning cloth

Warranty card

*** Mount may not be included for certain orders.
For improvement purposes, design of this product is subject to change.
FEATURES
Optics
Fast Aperture Lens 50 mm ƒ1.0

Long Eye Relief (67 mm)

Accurate Internal Focus Adjustment

4.5x optical magnification

Rangefinder
Measuring range up to 400m

Measuring accuracy ±1m

Reticles
Wide choice of selectable reticles in riflescope's memory

Four colour variations of the reticles

Electronics
Quality OLED display (640x480 Pixel)

Smooth digital zoom (1x to 2x with 0.1x increment)

Highly sensitive CCD Array

Weapon tilt and angle of elevation indicators

Signal Processing Program Sum Light™

One Shot Zeroing and with FREEZE function

Resistant to bright light exposure

On-screen indication of hot functions

True distance measuring

Automatic shutoff

Memorization of zero-in parameters for three types of weapon or distances

Memorization of brightness and contrast user settings

Extra functions
Built-in laser IR Illuminator with adjustable power

Wireless remote control

Wide range of image brightness and contrast adjustment

Operation at low temperatures (up to -25 °С)

Low battery indicator

Interchangeable mounts

Built-in clock

External power supply

Video output for video recording

Video output disable for optimized energy consumption

)*
