5.7.2.4.
Zwei Mal RS485 Bus, mit Oneloc mit Abgesetztem Leser

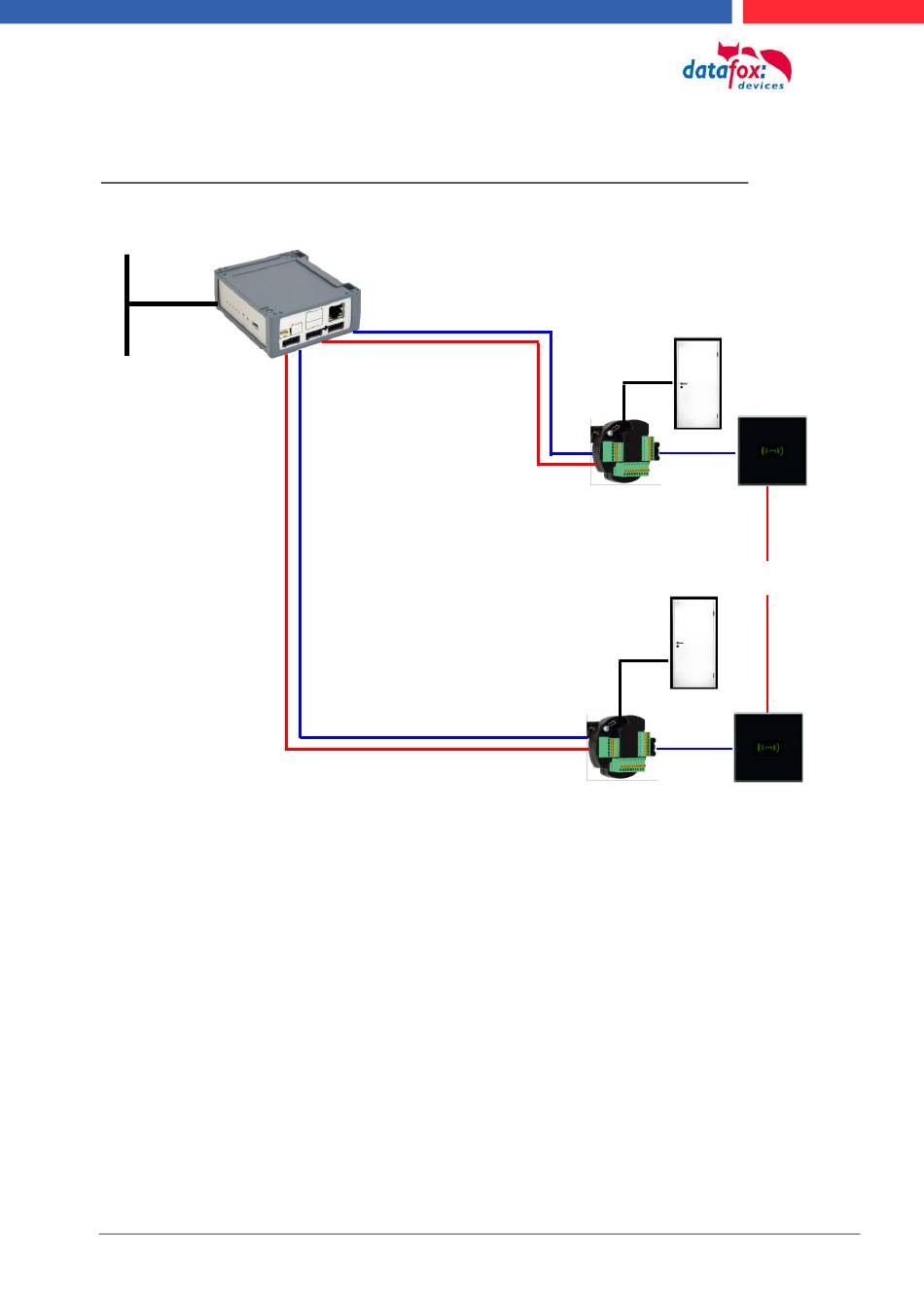

Verkabelungsplan für 2 Türen, je ein KYO Oneloc am ZK-Bus mit abgesetztem Leser:
TCP / IP (LAN)
Handbuch Datafox IO-Box V4
RS 485 ZK
Bus-ID 1
Spannungsversorgung
KYO Oneloc über Inloc
RS 485 ZK
Bus-ID 2
Spannungsversorgung
KYO Oneloc über Inloc
Seite 75
Relaiskontakt
für Türöffner
Bus Nr. 1
(011)
RS485-Bus
Bus Nr. 1
(010)
Netzteil 12VDC zur Spannungs-
versorgung der Zutrittsleser
Relaiskontakt
für Türöffner
RS485-Bus
Bus Nr. 1
Bus Nr. 1
(011)
(010)
