ABB Orion1 Extended Bedienungsanleitung Seite 14

Receiver
AOPD mode
OSSD error
Microprocessor error
Optical error
EDM error
Error
Reset error
Communication error
BCM configuration error
Critical error
Power supply error
It is not possible to acknowledge a critical error. The device must be switched off and on. If the error persists, contact
your ABB Jokab Safety representative.
2TLC172296M0201 Rev A
2015-03-20
Status

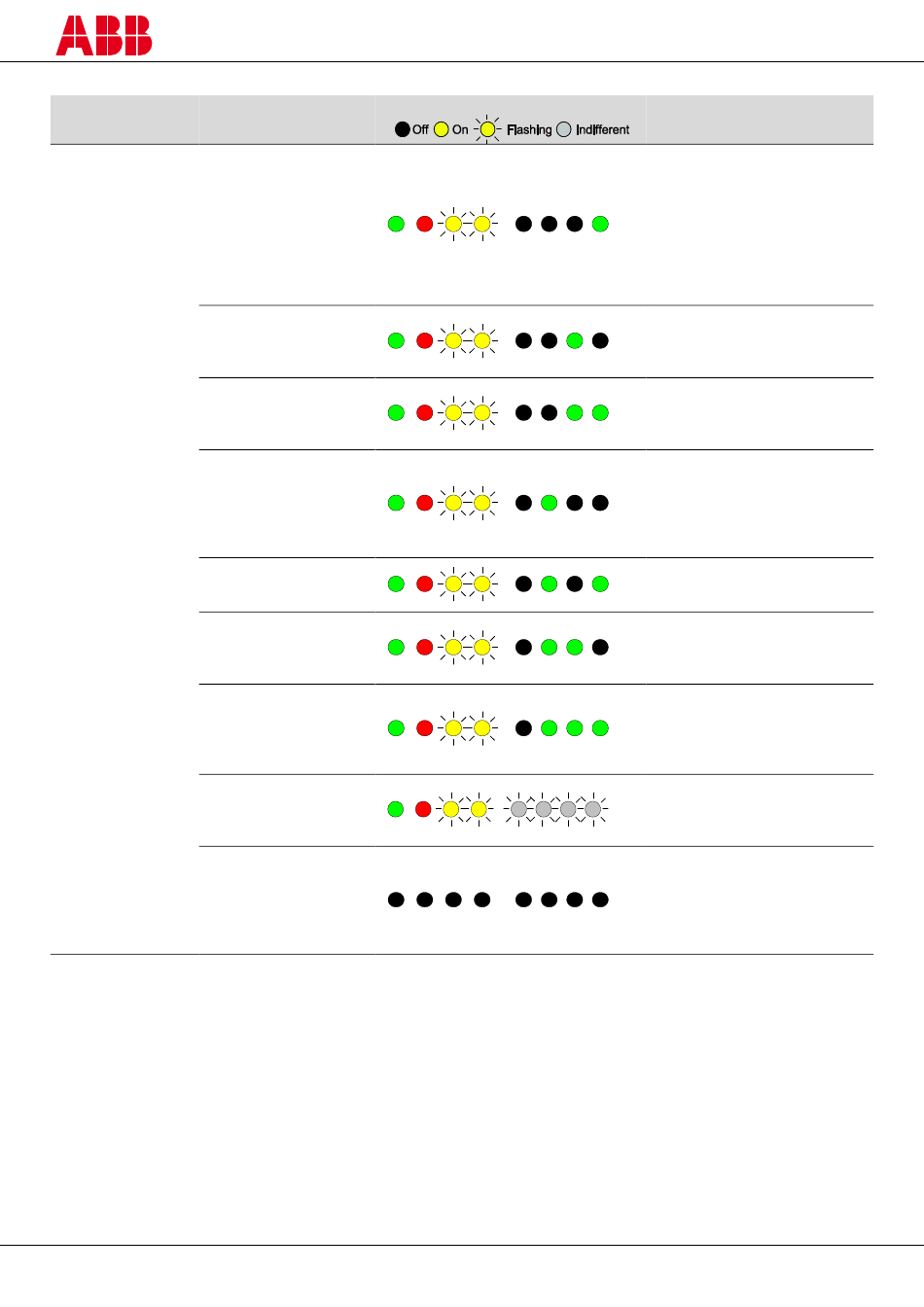

LED configuration
14
Action
Check the wiring and
connections of the OSSD
outputs. Make sure that there
is no short-circuit between
them or with the power supply.
Then Acknowledge. If the error
persists, contact your
ABB Jokab Safety
representative.
Acknowledge. If the error
persists, contact your
ABB Jokab Safety
representative.
Acknowledge. If the error
persists, contact your
ABB Jokab Safety
representative.
Check the connections and the
wiring of the EDM function,
inclusive EDM selection. Check
the time sequence (see the
instruction manual Time chart).
Acknowledge.
Check the connections and the
wiring of the Reset function.
Acknowledge.
Check the cascade connection
and the presence of the
terminator caps.
Acknowledge.
Perform a new BCM
configuration. If the error
persists, contact your
ABB Jokab Safety
representative.
Switch the AOPD off and on. If
the error persists, contact your
ABB Jokab Safety
representative.
Check the connections and
wiring of the power supply
Connection. If the error
persists, contact your
ABB Jokab Safety
representative.
