2.3 Mounting the tonearm base and folding base on a other manufacturers' turntables
In order to mount the tonearm base on the turntable chassis, please first drill three holes into the
turntable chassis. To ensure the correct position of the three holes, please use the measurements
given in the drawing template below. For this step, use a 3.3mm drill. After you have drilled the
three holes, thread the holes using an appropriate tap cutter. If the material of the turntable chassis
is not suitable for threading, please use a 4.5mm drill for the holes. In this case you will need longer
screws with nuts to fit the tonearm base.
Now you can mount the tonearm base on the clean and dry surface of the turntable chassis.
Please note that this image is not true to scale.

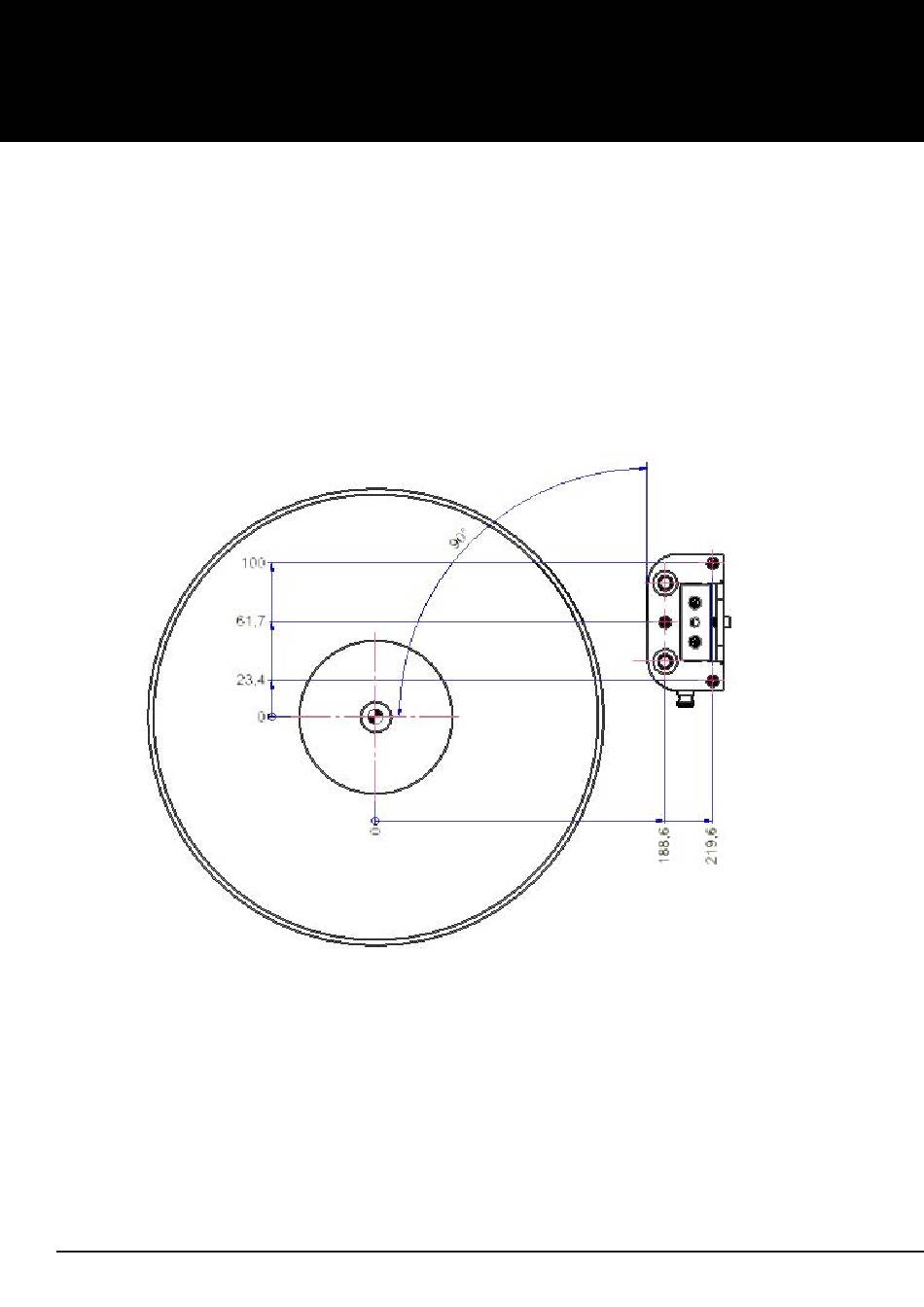

Pic. 8: Drilling template
