Part 3: Functions:

The device has 8 operating modes. You can choose and set the various operating modes via the on-board menu.
In DMX mode, the functions are controlled on 6, 7, 8, 9 or 11 channels. You can control the "SLIMPAR710PRO"
with any DMX controller.
3.
4.

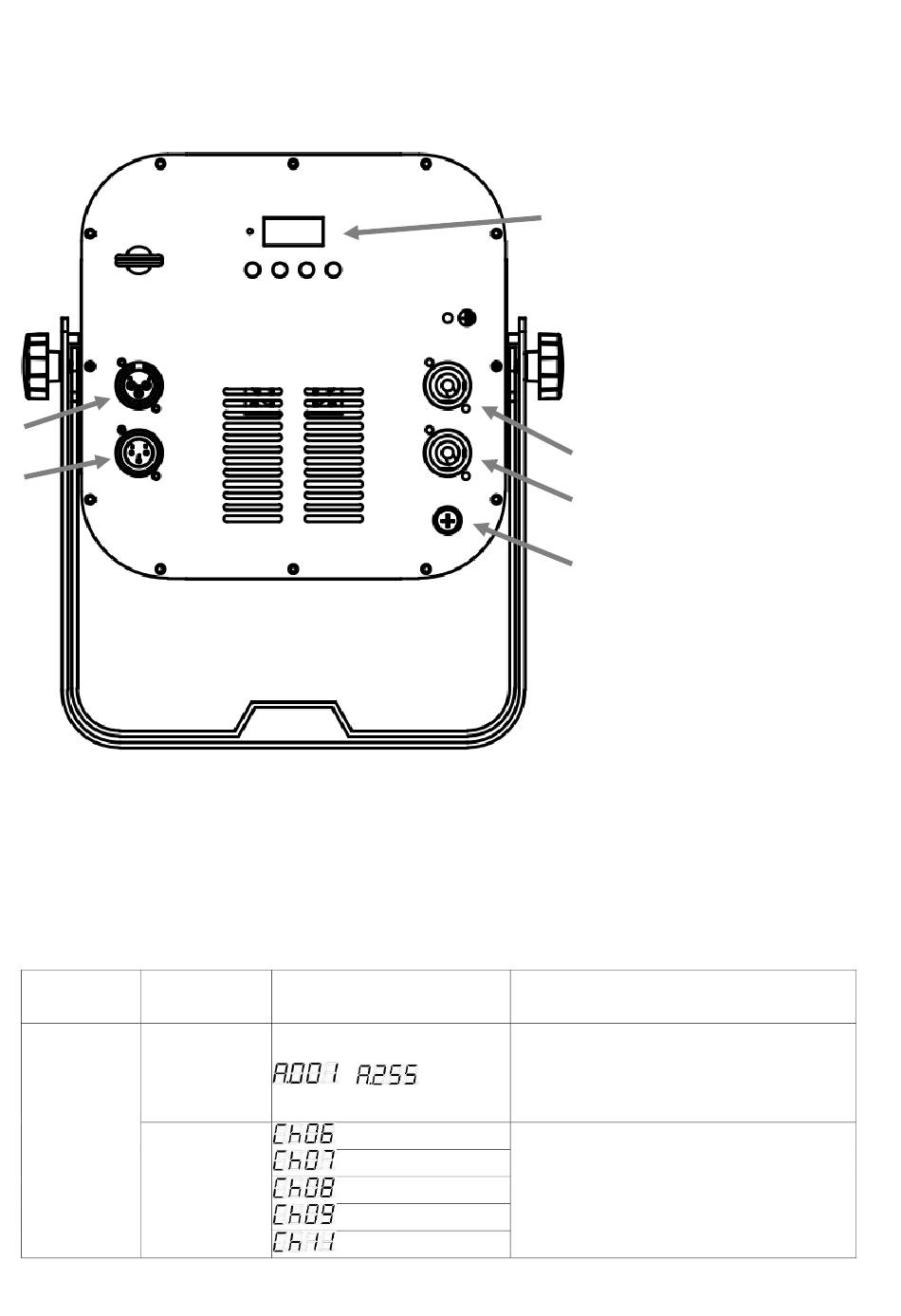

1. POWER IN - POWERCON-COMPATIBLE POWER IN CORD
2. POWER OUT - POWERCON-COMPATIBLE POWER OUT CORD.
3. DMX IN - 3-pole XLR socket for DMX IN
4. DMX OUT - 3-pole XLR socket for DMX IN
5. LED-DISPLAY – Shows the operation mode and can set up the functions
6. FUSE HOLDER - FUSE F2A 250V

3.1 Operation modes and set up the menu:

Modus Funktion
Address
DMX MODE
Channels
Menü
Set up the DMX starting address. Choose with
[UP] and [DOWN] one DMX value between 1
and 507. Push the [ENTER] to confirm the
-
setting and push the [MENU] to return to main
menu.
Channel modes „DMX": With [UP] and
[DOWN]
choose the requested DMX-mode: 6, 7, 8, 9
or 11 channels.
21
5.
2.
1.
6.
