Assembly instructions
No.
01
02
03L/04L
03R/04R
05L/R
06
07
08
18
21
22
23
24
25
26
27/32
28/33
34/35
37/38
40
41
43
Before starting to assemble we recommend to look for a place with sufficient space. Use a floor protection.
Remove all parts from the carton and spread them on the floor. Check according to the checklist, if all parts
are complete. Perhaps some parts are already pre-assembled for your convenience. We recommend to use
the provided tools to set-up this device and to set-up the device with 2 persons.

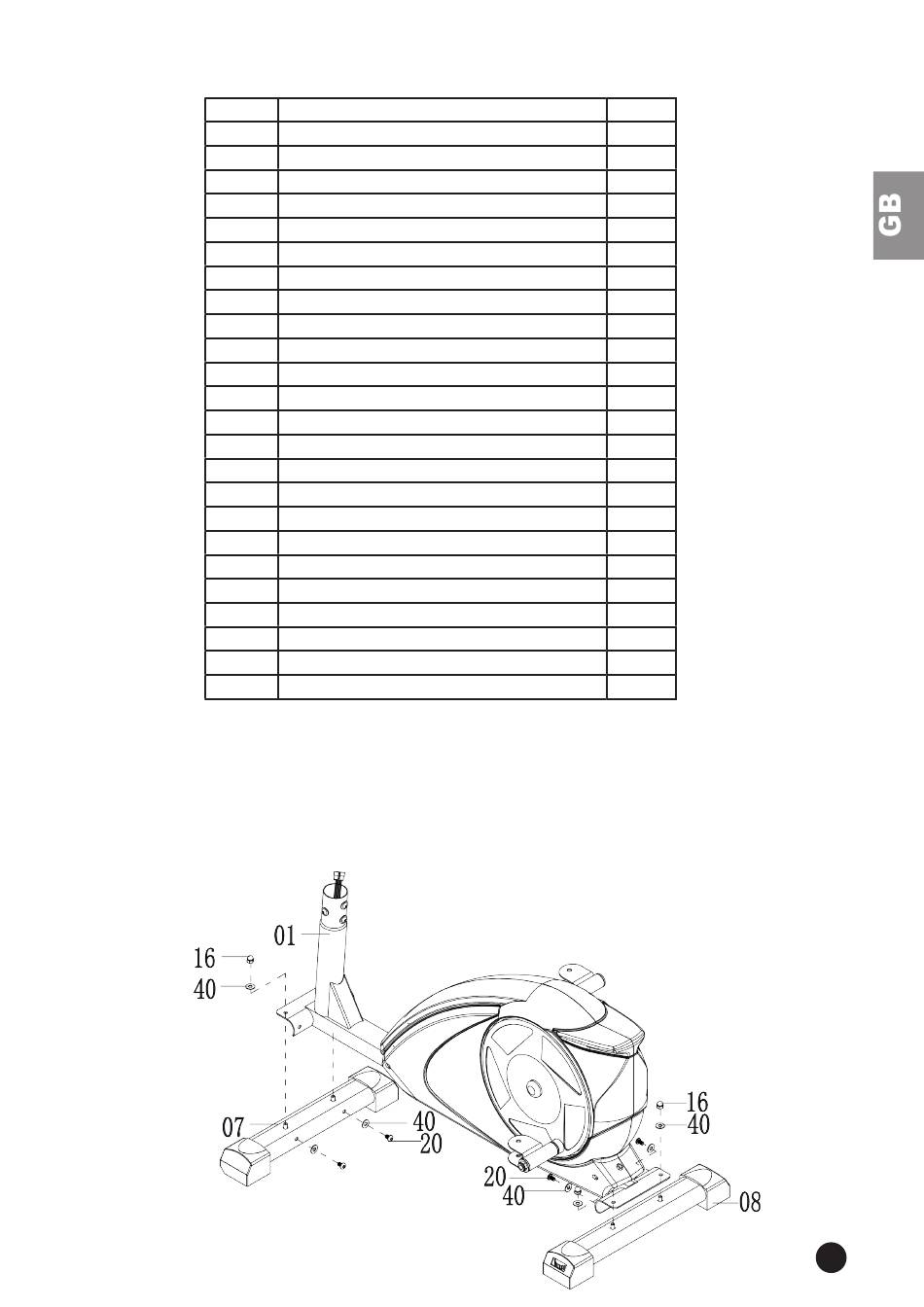

Step 1
Fix the front stabilizer (07) on front part of main frame (01) with screws (20), flat washers (40) and nuts (16)
as shown. Then fix the rear stabilizer (08) on rear part of main frame (01) with screws (20), flat washers (40)
and nuts (16).
Description
Main frame
Front post
Pedal Tube(L) / Lower handlebar (L)
Pedal Tube(R) / Lower Handlebar (R)
Upper Handlebars L/R
Stationery Handlebars
Front Stabilizer
Rear Stabilizer
Carriage Bolt
Allen Screw M6x15L
Allen Screw M8x30L
Nylon Nut
Computer
Pedal
Hex Head Bolt M8x45L
Decorative covers for handle bar joint (L)
Decorative covers for handle bar joint (R)
Decorative covers for Pedal Tube Joint L/R
Decorative covers for Pedal Tube Joint L/R
Flat Washer ø8.5xø16x1.5t
Decorative cover for Stationery Handlebars
PVC Cap
Box Wrench
Allen key
Q'ty
1
1
1/1
1/1
1/1
1
1
1
4
4
2
6
1
2
6
1/1
1/1
1/1
1/1
6
1
6
2
1
