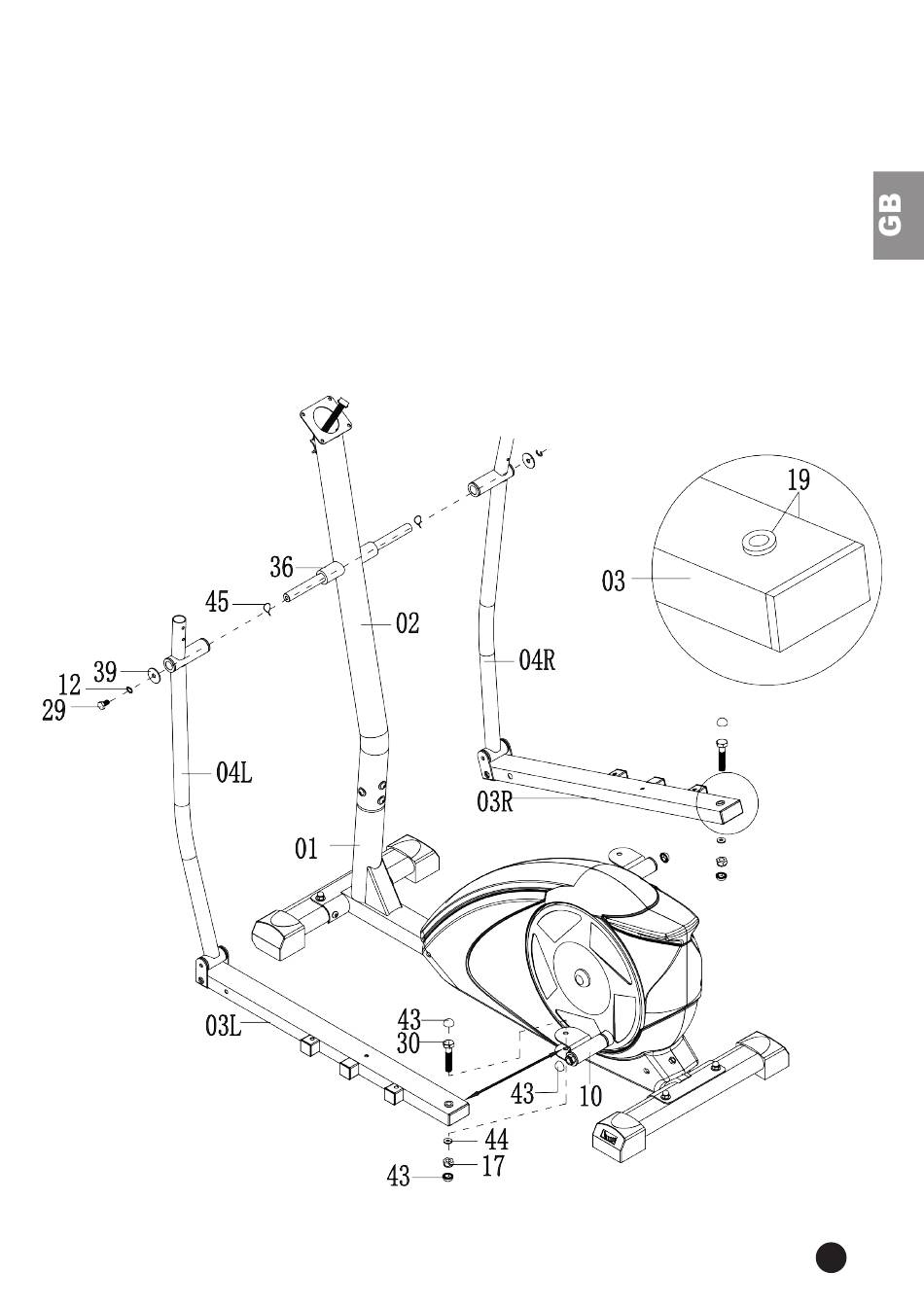

Step 3
Remove the hex head bolt (29), spring washer (12) and flat washer (39) from the left of the front support
(02). Remove the hex head bolt (30), flat washer (44) and nylon nut (17) from U type connecting plate (10).
Attach lower handlebar left (04L) to the left side of the front post (02). Secure with one hex head bolt (29),
one spring washer (12), one flat washer (39) and one wave washer (45) as shown.
Check the pedal tube left (03L) and right (03R), which have two spacers (19) on it. Ensure that these spacers
do not fall down!
Attach the pedal tube left (03L) to the left U type connection plate (10). Secure with one hex head bolt (30),
one flat washer (44) and one nylon nut (17). Then put the PVC caps (43) to cover the hex head bolt (30), the
nylon nut (17) and the left U type connecting plate (10).
Repeat the same steps as above for the right lower handlebar (04R) and the right pedal tube (03R).
