'STORAGE' CONTROL OF LITHIUM BATTERY
This function is for charging/discharging batteries which are not used at
once. This program is designed for charging or discharging of batteries
of specific original state. They are classified by types: 3.80V LiPO, 3.30
V LiFe, 3.70V LiIon, and 3. 90V LiHV. The program will begin to discharge if
the original state of battery exceeds the voltage level
of storage.
- +
DEC. INC.
Batt type
Start
Stop
Enter
www.modster.at
Start
Enter
00757
Current
Supplied
voltage
capacity
battery
- +
DEC. INC.
>3 seconds
MODSTER Charger 60
If both numbers are identical you can start
charging process. If not, press BATT TYPE/
STOP button to go back to previous screen
to recheck the number of cells of the
battery pack before going ahead.

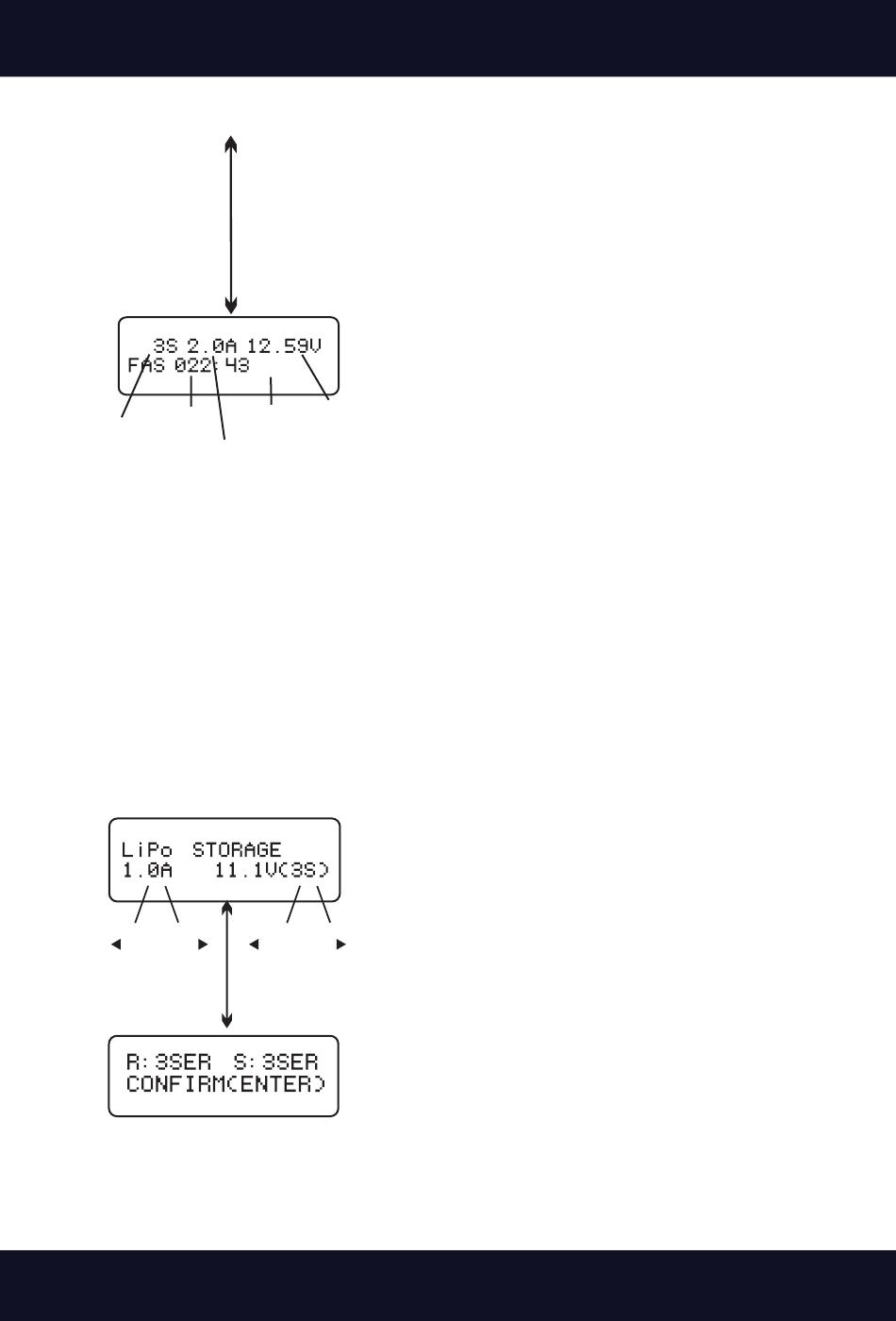

This screen shows the real-time status
during charge process. Press BATT TYPE/
STOP button once to stop the charge
process.
At this screen, you can set up the current
and voltage of the battery pack. Charging
and discharging will make the batteries
come to the voltage level of storage state.
This screen displays the number of cells
you set up and the processor detects.
R=Number of cells detected by charger.
S=Number of cells set by you at the
previous screen. If both numbers are
identical you can start charging process by
press START/ENTER button. If not, press
BATT TYPE/STOP button to go back to
previous screen to recheck the number
of cells of the battery pack before going
ahead.
