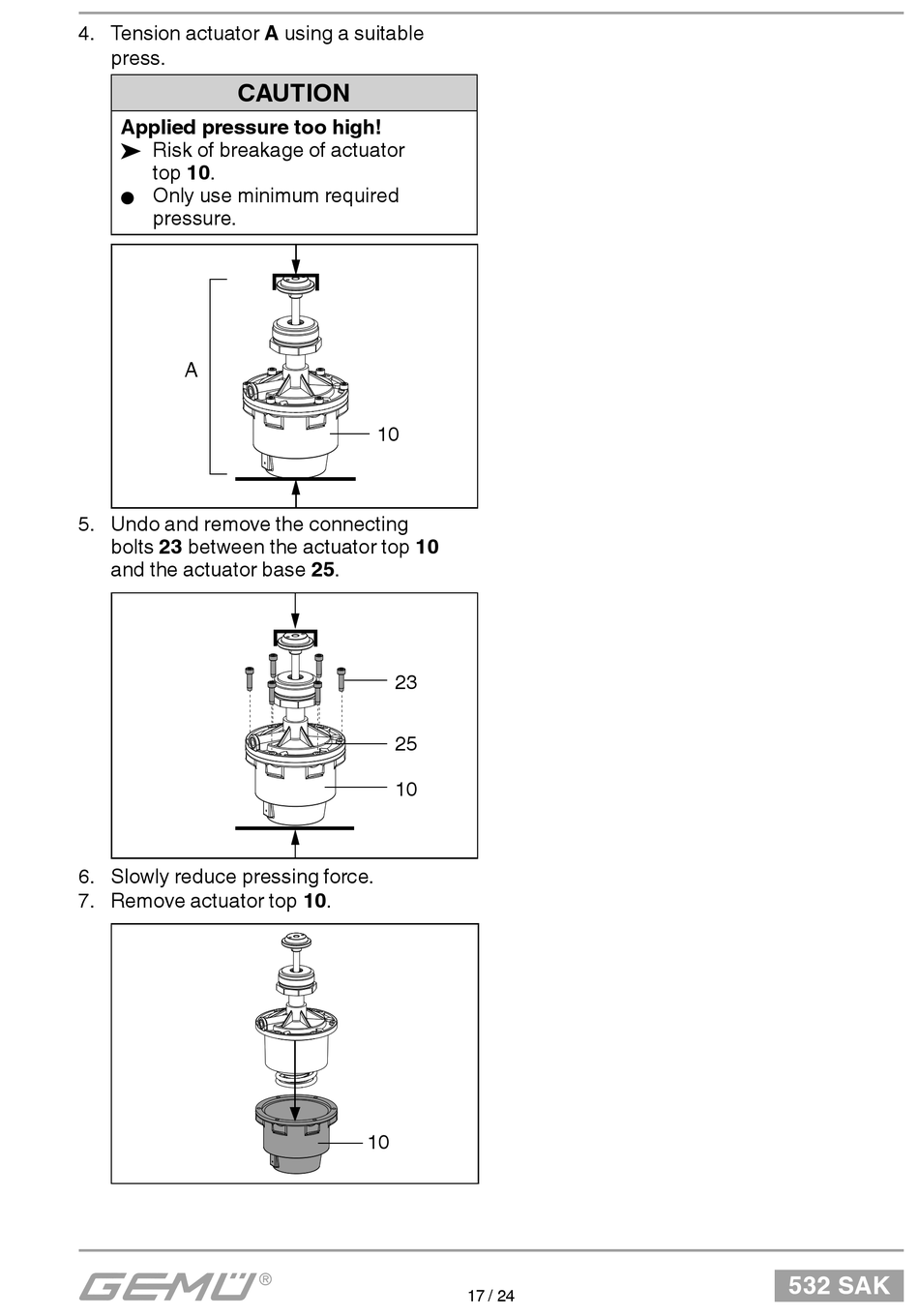

4. Tension actuator A using a suitable
press.
CAUTION
Applied pressure too high!
® Risk of breakage of actuator
top 10.
Only use minimum required
G
pressure.
A
5. Undo and remove the connecting
bolts 23 between the actuator top 10
and the actuator base 25.
6. Slowly reduce pressing force.
7. Remove actuator top 10.
10
23
25
10
10
17 / 24
532 SAK
