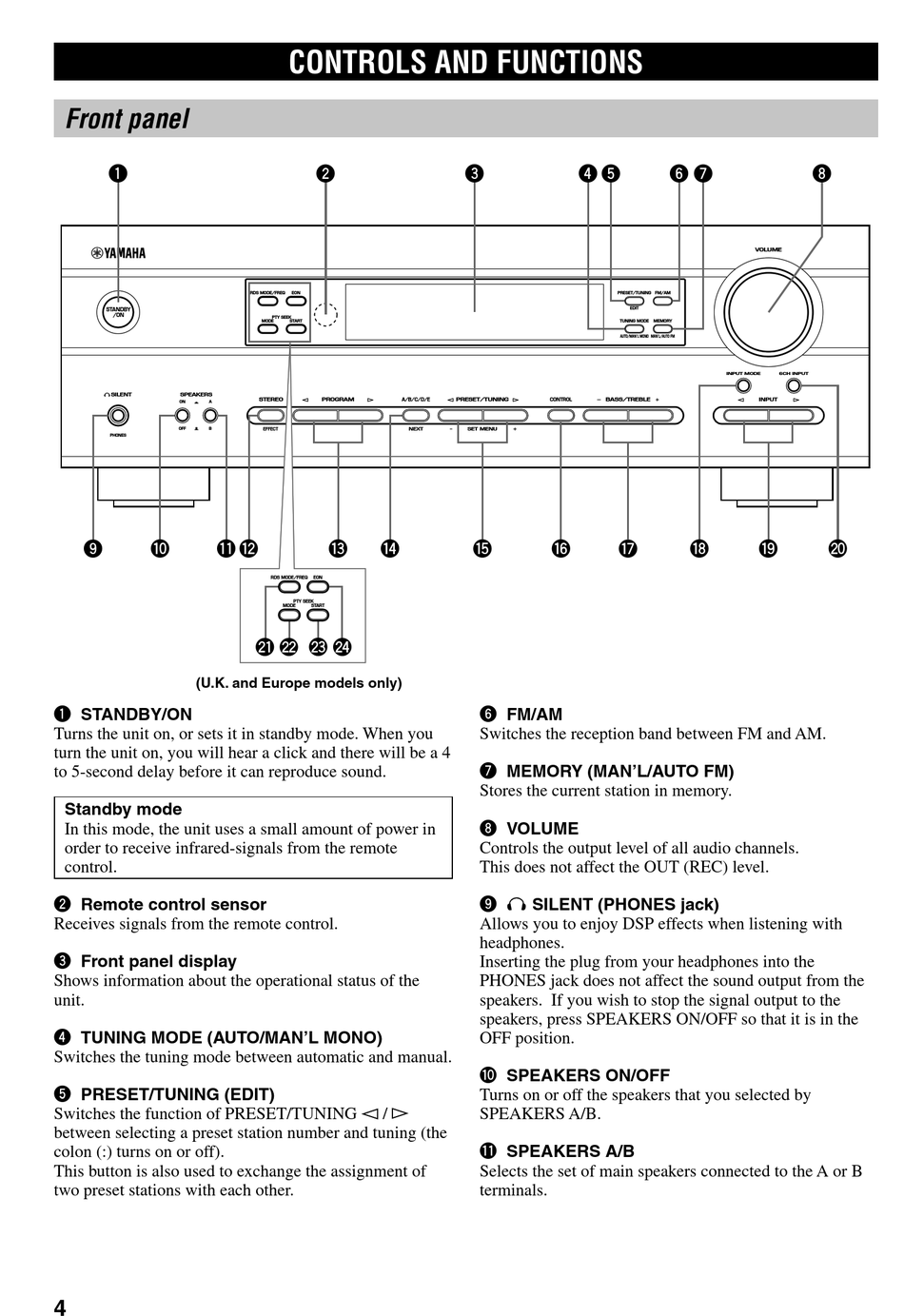

Front panel

1
STANDBY
/ON
SILENT SPEAKERS
ON A
OFF B
PHONES
9 0 q w
(U.K. and Europe models only)
1 STANDBY/ON
Turns the unit on, or sets it in standby mode. When you
turn the unit on, you will hear a click and there will be a 4
to 5-second delay before it can reproduce sound.
Standby mode
In this mode, the unit uses a small amount of power in
order to receive infrared-signals from the remote
control.
2 Remote control sensor
Receives signals from the remote control.
3 Front panel display
Shows information about the operational status of the
unit.
4 TUNING MODE (AUTO/MAN'L MONO)
Switches the tuning mode between automatic and manual.
5 PRESET/TUNING (EDIT)
Switches the function of PRESET/TUNING l / h
between selecting a preset station number and tuning (the
colon (:) turns on or off).
This button is also used to exchange the assignment of
two preset stations with each other.
4

CONTROLS AND FUNCTIONS

2
RDS MODE/FREQ EON
PTY SEEK
MODE START
STEREO PROGRAM A/B/C/D/E
EFFECT NEXT
e r
RDS MODE/FREQ EON
PTY SEEK
MODE START
a s d f
3 4 5
PRESET/TUNING FM/AM
TUNING MODE
AUTO/MAN`L MONO MAN`L/AUTO FM
PRESET/TUNING CONTROL BASS/TREBLE
SET MENU
t y u
6 FM/AM
Switches the reception band between FM and AM.
7 MEMORY (MAN'L/AUTO FM)
Stores the current station in memory.
8 VOLUME
Controls the output level of all audio channels.
This does not affect the OUT (REC) level.
9
SILENT (PHONES jack)
Allows you to enjoy DSP effects when listening with
headphones.
Inserting the plug from your headphones into the
PHONES jack does not affect the sound output from the
speakers. If you wish to stop the signal output to the
speakers, press SPEAKERS ON/OFF so that it is in the
OFF position.
0 SPEAKERS ON/OFF
Turns on or off the speakers that you selected by
SPEAKERS A/B.
q SPEAKERS A/B
Selects the set of main speakers connected to the A or B
terminals.
6 7
VOLUME
EDIT
MEMORY
INPUT MODE 6CH INPUT
INPUT
i o
8
p
