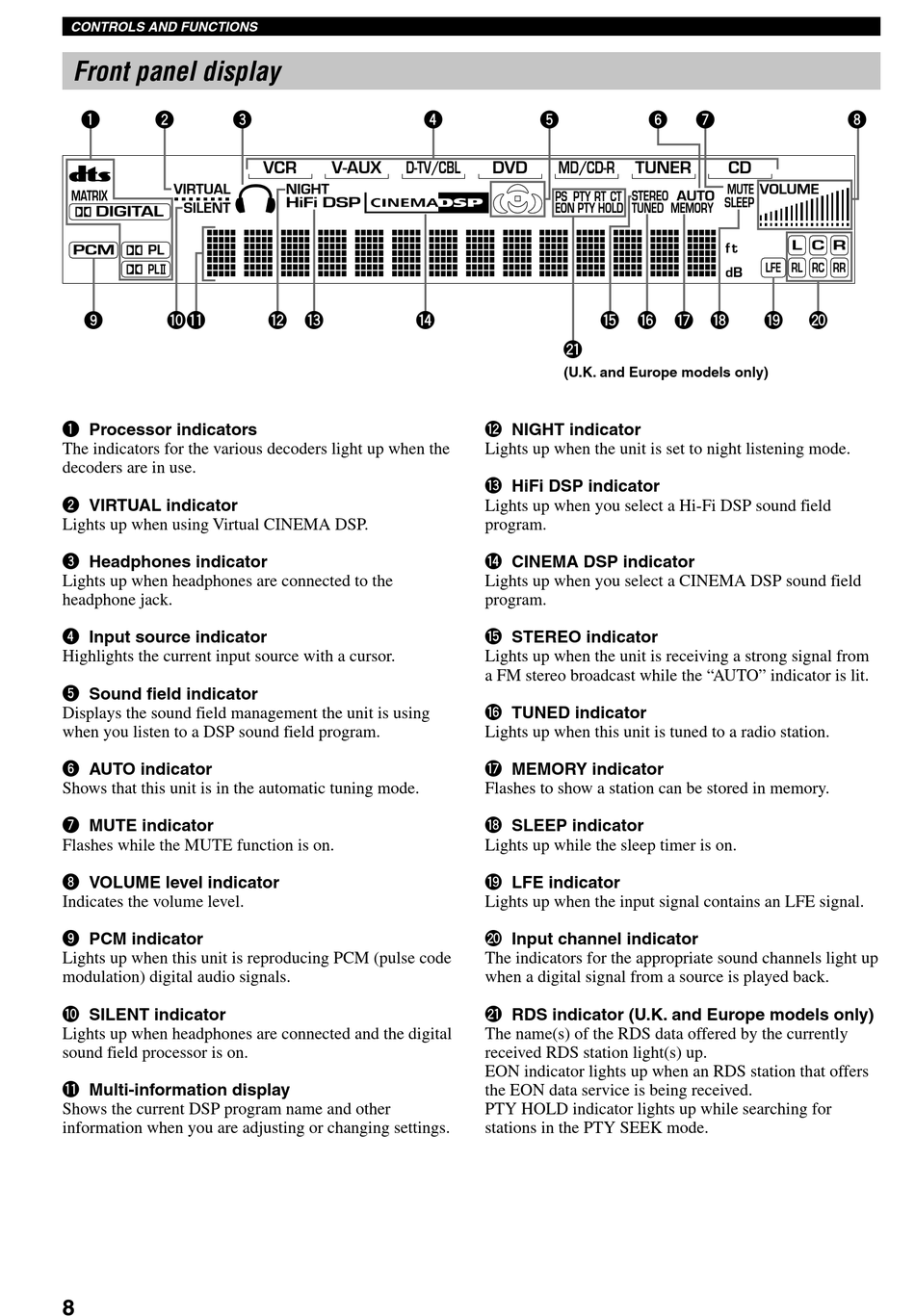

CONTROLS AND FUNCTIONS

Front panel display

1 2 3
VIRTUAL
MATRIX
SILENT
DIGITAL
~~~~~~~~~~~~~~
PCM PL
PL
9 0q
1 Processor indicators
The indicators for the various decoders light up when the
decoders are in use.
2 VIRTUAL indicator
Lights up when using Virtual CINEMA DSP.
3 Headphones indicator
Lights up when headphones are connected to the
headphone jack.
4 Input source indicator
Highlights the current input source with a cursor.
5 Sound field indicator
Displays the sound field management the unit is using
when you listen to a DSP sound field program.
6 AUTO indicator
Shows that this unit is in the automatic tuning mode.
7 MUTE indicator
Flashes while the MUTE function is on.
8 VOLUME level indicator
Indicates the volume level.
9 PCM indicator
Lights up when this unit is reproducing PCM (pulse code
modulation) digital audio signals.
0 SILENT indicator
Lights up when headphones are connected and the digital
sound field processor is on.
q Multi-information display
Shows the current DSP program name and other
information when you are adjusting or changing settings.
8
4
VCR V-AUX D-TV/CBL
NIGHT
HiFi DSP
w e r
5 6
DVD MD/CD-R TUNER
STEREO
PS PTY RT CT
EON PTY HOLD TUNED
t y
a
(U.K. and Europe models only)
w NIGHT indicator
Lights up when the unit is set to night listening mode.
e HiFi DSP indicator
Lights up when you select a Hi-Fi DSP sound field
program.
r CINEMA DSP indicator
Lights up when you select a CINEMA DSP sound field
program.
t STEREO indicator
Lights up when the unit is receiving a strong signal from
a FM stereo broadcast while the "AUTO" indicator is lit.
y TUNED indicator
Lights up when this unit is tuned to a radio station.
u MEMORY indicator
Flashes to show a station can be stored in memory.
i SLEEP indicator
Lights up while the sleep timer is on.
o LFE indicator
Lights up when the input signal contains an LFE signal.
p Input channel indicator
The indicators for the appropriate sound channels light up
when a digital signal from a source is played back.
a RDS indicator (U.K. and Europe models only)
The name(s) of the RDS data offered by the currently
received RDS station light(s) up.
EON indicator lights up when an RDS station that offers
the EON data service is being received.
PTY HOLD indicator lights up while searching for
stations in the PTY SEEK mode.
