Before connecting components

CAUTION
Do not connect this unit or other components to the
mains power until all connections between the
components have been completed.
• Be sure all connections are made correctly, that is to
say L (left) to L, R (right) to R, "+" to "+" and "–" to
"–". Some components require different connection
methods and have different jack names. Refer to the
operation instructions for each component you wish to
connect to this unit.
• After you have completed all connections, check them
again to make sure they are correct.
• The jack names correspond to the names on the input
selector.

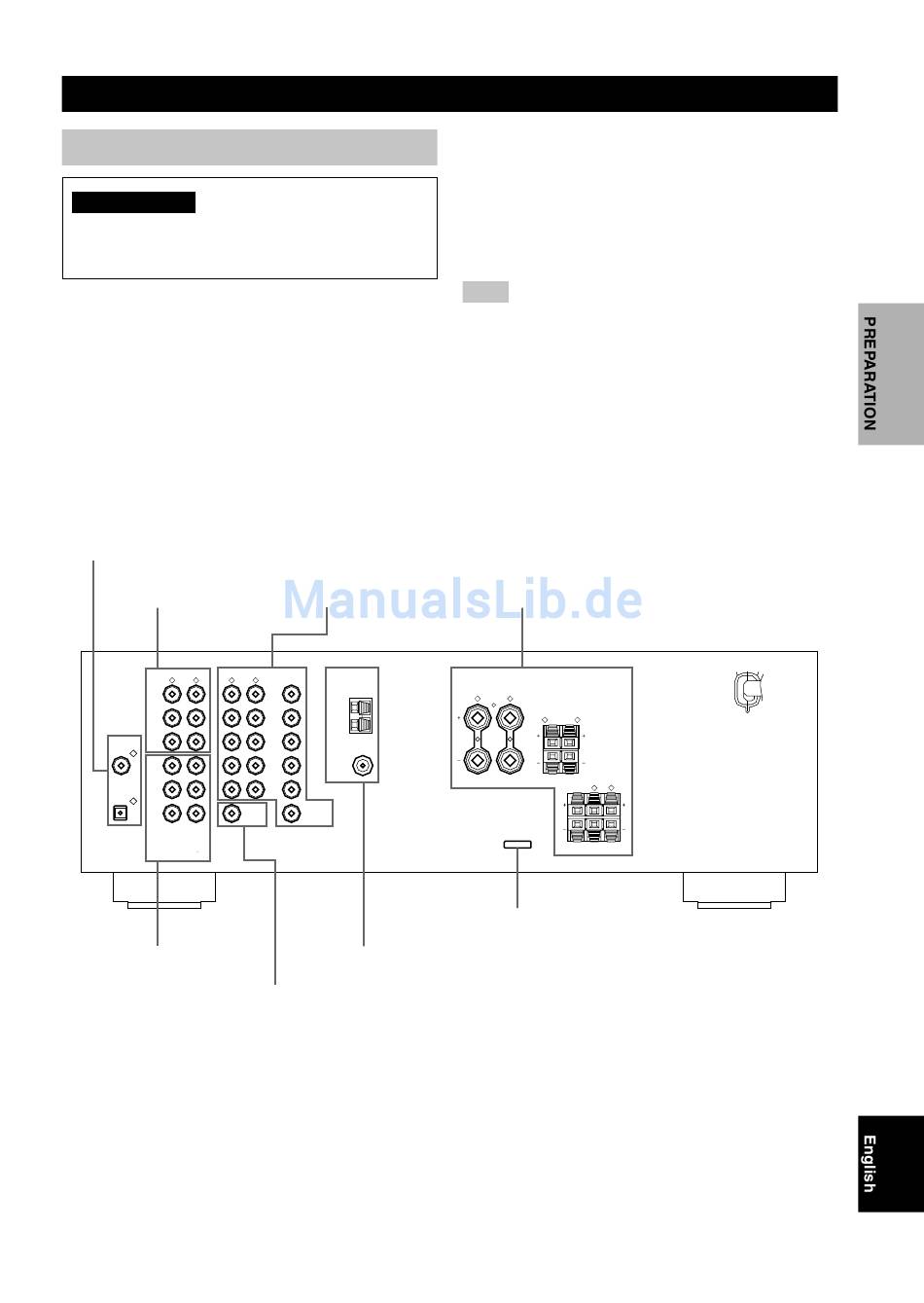

DIGITAL INPUT jacks
(pages 9 – 11)
Audio component jacks
(page 11)
AUDIO AUDIO
R L R
CD
IN
(PLAY)
MD
/CD-R
OUT
DIGITAL
(REC)
INPUT
2
CD
MAIN
COAXIAL
SURROUND
OPTICAL
1
DVD
SUB
WOOFER CENTER
6CH INPUT OUTPUT
6CH INPUT jacks
(page 13)

CONNECTIONS

Video component jacks
(page 10)
VIDEO TUNER
L
DVD
AM
ANT
D-TV
/CBL
GND
V-AUX
75Ω UNBAL.
FM
IN
ANT
VCR
OUT
SUB MONITOR
WOOFER OUT
Antenna input terminals
(page 12)
SUBWOOFER OUTPUT
jack (page 16)
I Connecting to digital jacks
This unit has digital jacks for direct transmission of
digital signals through either a coaxial or fiber optic
cable. You can use the digital jacks to input PCM, Dolby
Digital and DTS bitstreams. Use digital connections if
you wish to enjoy the multi-channel sound track of DVD
material, etc. with DSP effects. Both digital input jacks
are acceptable for 96 kHz sampling digital signals.
Note
• The OPTICAL jack on this unit conform to the EIA standard.
If you use a fiber optic cable that does not conform to this
standard this unit may not function properly.
Speaker terminals
(page 16)
SPEAKERS
CLASS 2 WIRING
A
R MAIN L
B
R MAIN L
REAR
MAIN A OR B : 6Ω MIN./SPEAKER
(SURROUND)
CENTER R L
CENTER : 6Ω MIN./SPEAKER
REAR : 6Ω MIN./SPEAKER
This jack is reserved for factory use.
Do not connect any equipment to this jack.
