Operating instructions

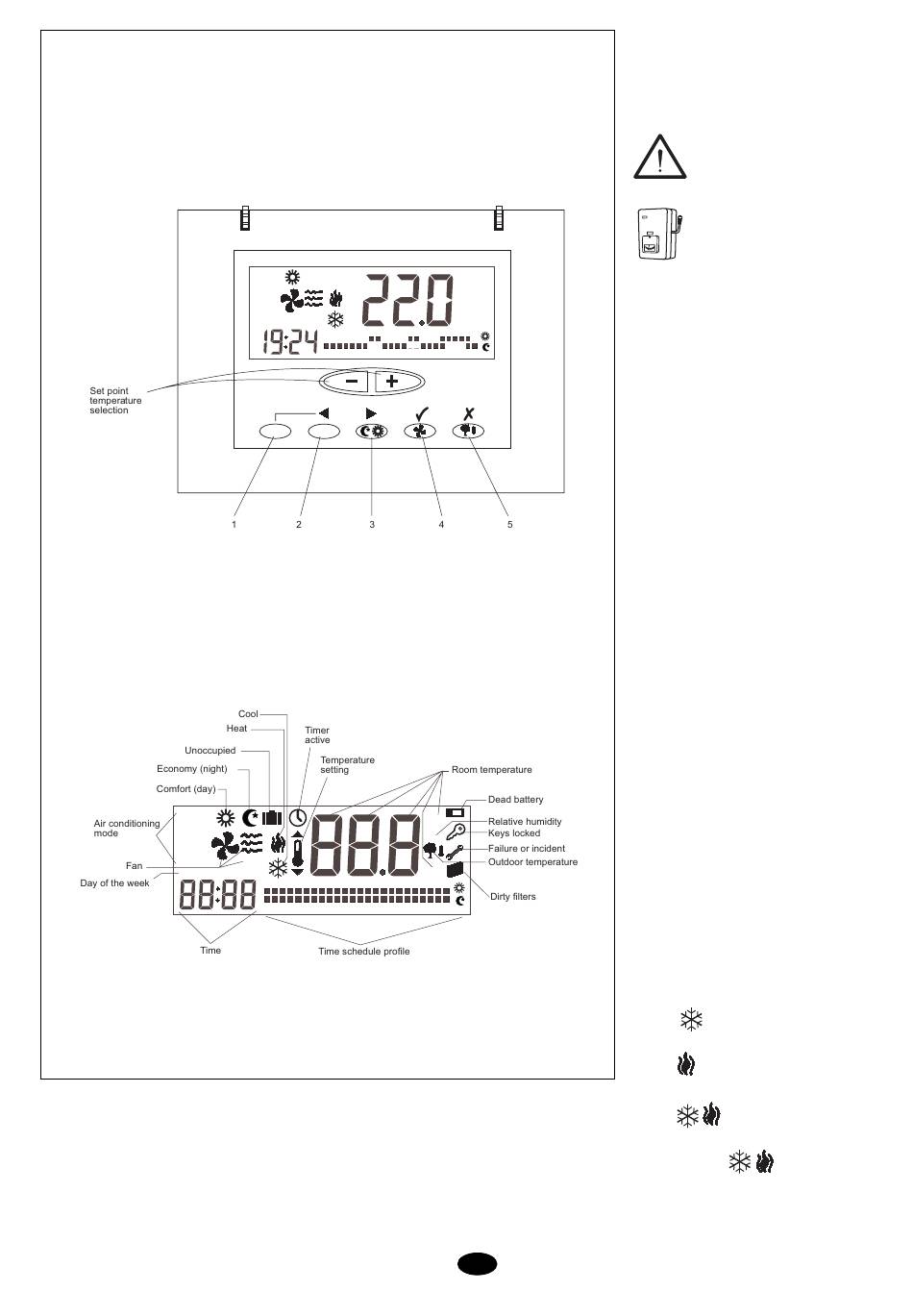

Controls and indicators
1.- Program mode selection.
2.- Operating mode selection.
3.- Day/night/unoccupied selection.
4.- Fan speed selection
5.- Outdoor temperature reading
OFF
EMERG
HEAT
COOL
AUTO
PROG
1 2 3 4 5 6 7
General information
Automatic temperature start-up and regu-
lation is carried out by means of an ambient
thermostat.
Locate the thermostat at approximately 1.5
m. above floor level, where no obstacle can
avoid measuring the real temperature of the
room.
AUTO
AUTO
PROG
4
0h 2 4 6 8 10 12 14 16 18 20 22 24
PROG MODE
Fig. 1
AUTO
0h 2 4 6 8 10 12 14 16 18 20 22 24
Fig. 2
Important warning
The thermostat should be placed on a wall
not exposed to direct sunlight; otherwise,
temperatures would not be real and opera-
tion would be poor. Before starting up, turn
the general switch on so as to supply power
to the electrical heater of the compressor
crankcase.
°C
°F
%RH
°C
GB
The compressor should not be started
until a minimum of eight hours later.
This is done to evaporate any refrigerant in
liquid form that may be been mixed in with
the oil in the compressor.
Caution:
Connection:
To preheat the system, the elec-
trical heater should be tourned
on at least 8 hours prior to start-
POWER
ing the air conditioning unit.
SUPPLY
Leave power supply on, unless
ON
the air conditioner is not to be
used during long periods of time.
Recommendations for best op-
eration
- Turn the air conditioning on before the
room gets warm. Any heat accumulated
on furniture, walls, etc., makes the unit
take longer to reach the desired tempera-
ture.
- It is advisable to inspect and service your
equipment whenever necessary; this
avoids damage and ensures long service
life of your air conditioner.
Ambient thermostat DPC-1R
These thermostats are designed to give pre-
cise ambient temperature control and
graphic information with regard to heat pump
operation. In compliance with the differen-
tial between the programmed and ambient
temperatures, it varies the on/off cycles.
The liquid crystal display (LCD) normally
shows the ambient temperature, the oper-
ating mode and whether the cooling or heat-
ing system is in operation.
It allows selecting different temperature set
points for cooling and heating, as well as
their indication in °C or °F.
The fan can be set to operate in a continu-
ous or automatic mode, stopping and oper-
ating jointly with the compressor..
The controls are located beneath a cover.
Operation and start-up
Start-up is carried out by means of the ther-
mostat controls.
1.- MODE
Pressing this button sets the heat pump op-
erating mode. When pressed alternatively,
the LCD screen shows the following oper-
ating modes:
COOL Controls the system in cooling
mode.
HEAT Controls the system in heating
mode.
AUTO Controls the system in either
the cooling or heating modes, as needed.
AUTO PROG. Controls the system
in cooling or heating, depending upon the
time schedule profile selected. (If micro-
switch pin 2 is set to OFF, this option does
not appear.
