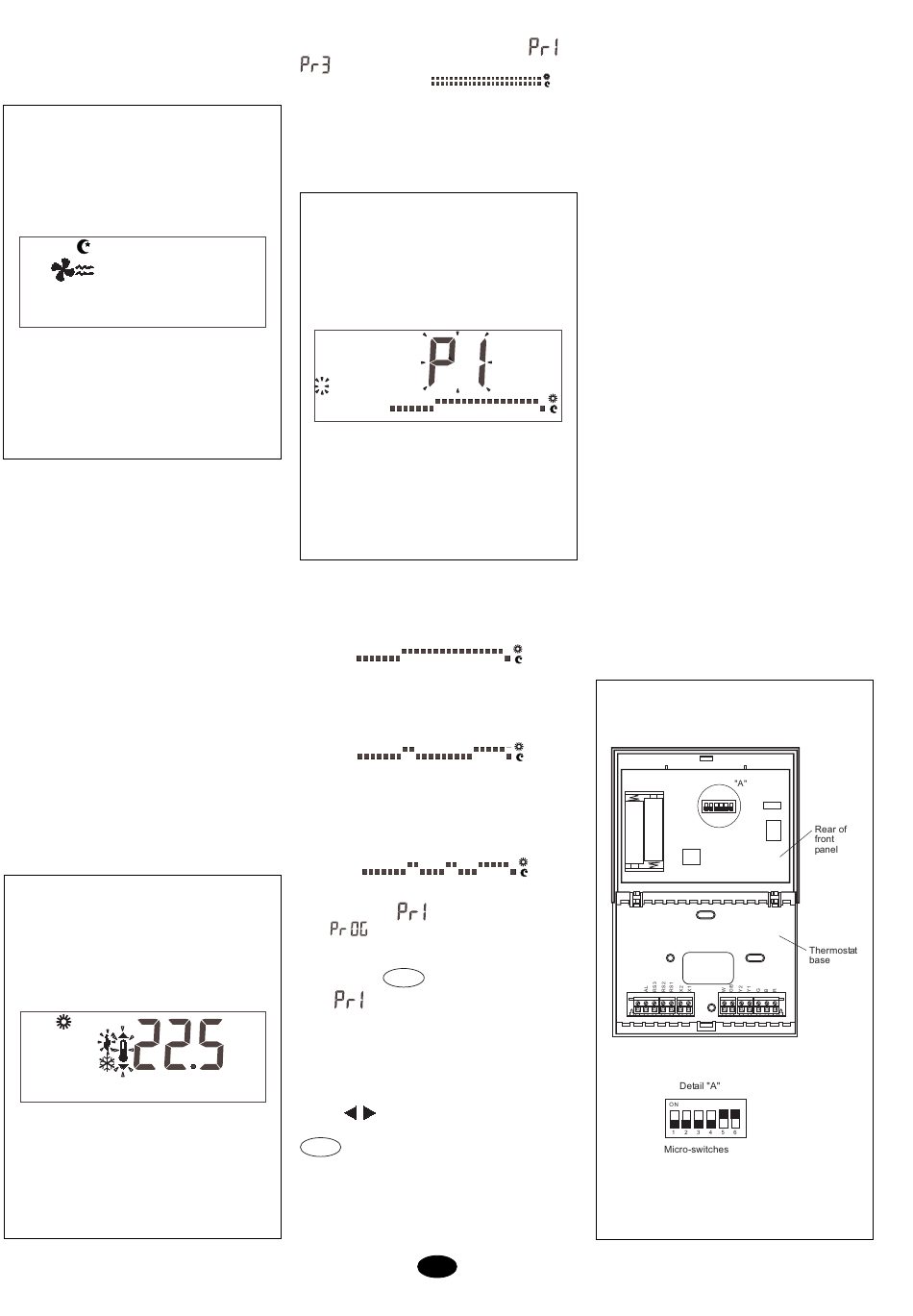

2- Fan setting
Allows programming fan status in the differ-
ent occupation periods ( Day, Night or Un-
occupied ). Periods and fan status are dis-
played.
AUTO
3- Day, Night or Unoccupied tempera-
tures setting
There is a total of six programmable tem-
perature settings that correspond to the heat
and cool modes of the three occupation
periodes (Day, Night and Unoccupied).
These settings must follow an order from
cooler (a) to warmer (f).
a. Cool set point in Unoccupied mode.
b. Cool set point in Night mode.
c. Cool set point in Day mode.
d. Heat set point in Day mode.
e. Heat set point in Night mode.
f. Heat set point in Unoccupied mode.
The thermostat will never allow differencial
of less than 1°C (2°F) between each set-
ting. If when moving one of the setting we
come to less than 1°C (2°F) from the next
one, it will be "dragged" so as to avoid the
unsuitability of settings. When this occurs,
the thermostat will show it by flashing the
period icon of the setting being dragged.
12
4- Selection of time schedule profiles
There are three pre-defined profiles (P1 and
P5), and three additional profiles
that can be programmed by the user.
Upon selecting the
tion on the programming menu, all days of
the week are displayed on screen, with day
1 of the week (Monday) flashing, the pro-
gram presently memorized for this day,
flashing and the corresponding profile.
1 2 3 4 5 6 7
0h 2
The predetermined profiles are 3:
1. P1, with comfort cycle of 7-23 hours, the
rest economy (night),
0h 2 4 6
2. P2, with two comfort cycles of 7-9 and
18-23 hours, the rest economy (night),
0h 2 4 6
3. P3, with three comfort cycles of 7-9, 13-
15 and 18-23 hours, the rest economy
(night),
0h 2 4 6
When the user
text appears in clock digits to indi-
cate that the key with this denomination is
ready to program the profile.
PROG
Pressing the
user profile during Selection of time
schedule profiles accesses the configura-
tion of this profile.
°C
Monitoring program menu
Entering the program menu, and pressing
keys simultaneously, the first
monitoring menu appears. Pressing the
, key, the different submenus will
PROG
appear.
- P1, Programming of temperature read out
calibrations. Maximum allowed are ± 3°C.
- P2, Programming of temperature read out
origin.
to
op-
0h 2 4 6 8 10 12 14 16 18 20 22 24
4 6 8 10 12 14 16 18 20 22 24
8 10 12 14 16 18 20 22 24
8 10 12 14 16 18 20 22 24
8 10 12 14 16 18 20 22 24
profile is displayed, the
key while displaying the
GB
S1: Indoor probe. Default value.
S2: Remote probe, RS1.
S3: Duct remote probe, DS1.
S4: Economiser probe.
S5, S6, S7 and S8: Average digital remote
probe AS1.
- P3, Programming of temperature control
operating mode.
TURBO; Quick temperature control, tur.
NORMAL; Normal temperature control,
nor. Default value.
ECONOMY; Economy temperature con-
trol, eco.
- P4 Activation and deactivation of commu-
nication error read out.
C-Y Error Er.93 is displayed.
C-N Error Er.93 is not displayed.Default
value.
- P5 Selection of indoor probe type.
EA; The thermostat displays the analogi-
cal outdoor probe value. Installed on the
YKlon loard or the economiser board.
Default value.
Ed; The thermostat displays the digital
outdoor probe value, AS1 (S8). Optional
accessory.
Micro-switches for configura-
tion of the thermostat
The thermostat has a configuration system
through micro-switches located in rear of the
front panel.
For standard thermostat operation, these
pins are factory-set to OFF. Nevertheless,
these settings can be change in accordance
to user needs. The functions of each one
are described below.
SW1
