Kontrol af ledningstilslutning (checkliste)
Connection checklist
Prüfung der elektrischen Verdrahtung
Vérification des raccordements
Verificacion de conexiones
Med et ohm-meter kontrolleres forbindelsen mellem terminalerne. (
The connection between the terminals must be measured with an ohm-meter. (
- - - Additional function)
Mit einem Widerstands-Meßgerät wird der Anschluß zwischen den Klemmen kontrolliert.
- - - "Kann" - Verbindung, funktionsabhängig)
Contrôler la connexion entre bornes avec un ohmmètre. (
Las conexiones entre los terminales se deben medir con un polimetro (medir ohmios) (—— conexion necesaria,
- - - - funcion adicional)

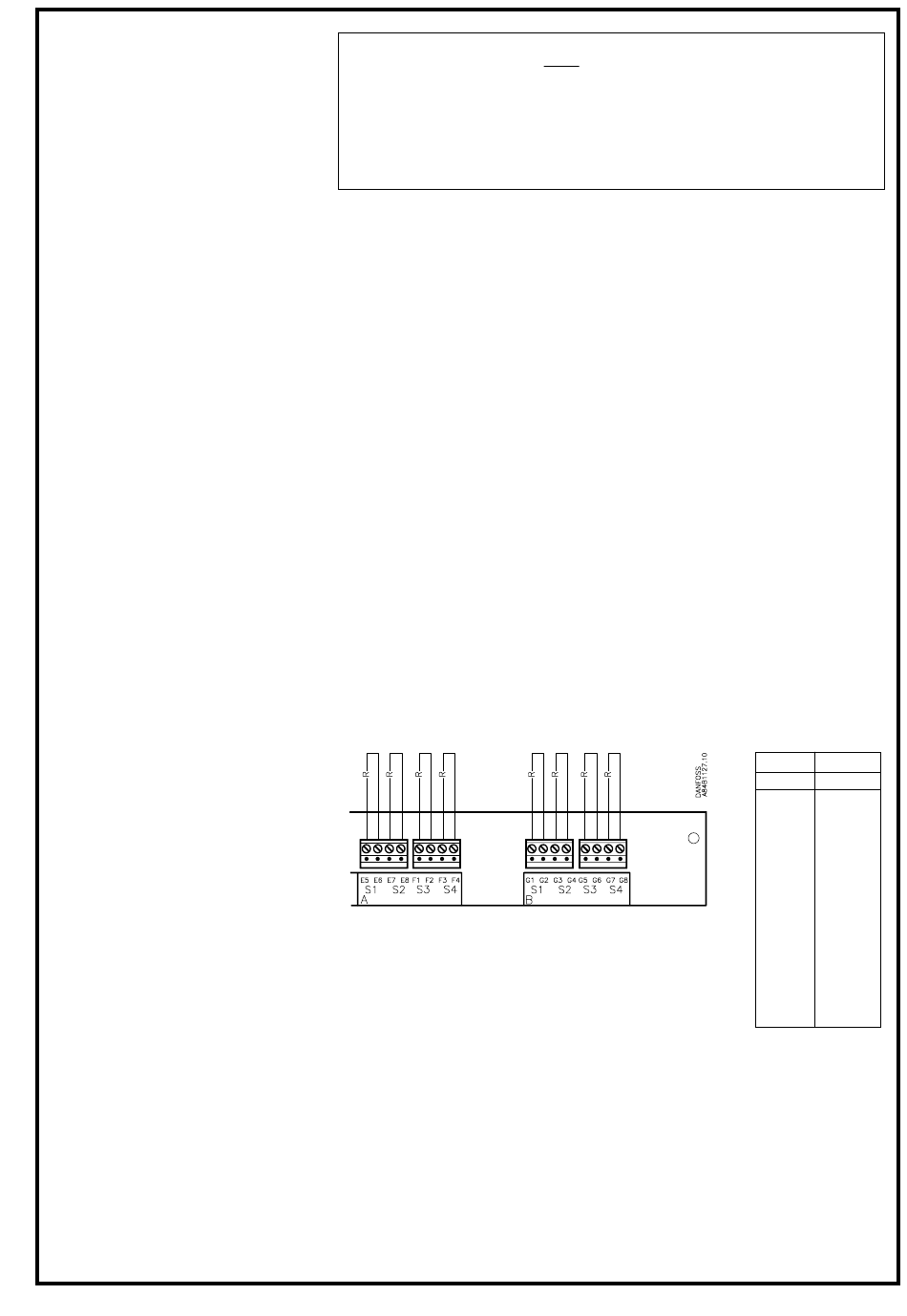

1)
Følertilslutning
Sensors
Fühleranschluß
Raccordement des capteurs
Sensores
AKC 24P
Forsyningsspænding skal være afbrudt!
Voltage supply must be cutout!
Bei Prüfung Spannungsversorgung ausschalten!
S'assurer toujours que la tension d'alimentation est coupée!
La alimentacion debe estar cortada!
Instructions RI.1J.A4.53 © Danfoss 6/96
___
Nødvendig tilslutning, - - - Tillægsfunktion)
___
Necessary connection,
___
Raccordement nécessaire, - - - Fonction accessoire)
(
___
"Soll" - Verbindung,
S1-S4
R
°C
Ohm
-30
882
-25
802
-20
921
-15
941
-10
961
-5
980
0
1000
5
1020
10
1039
15
1059
20
1078
25
1097
30
1117
Approx. 4 ohm/K
7
