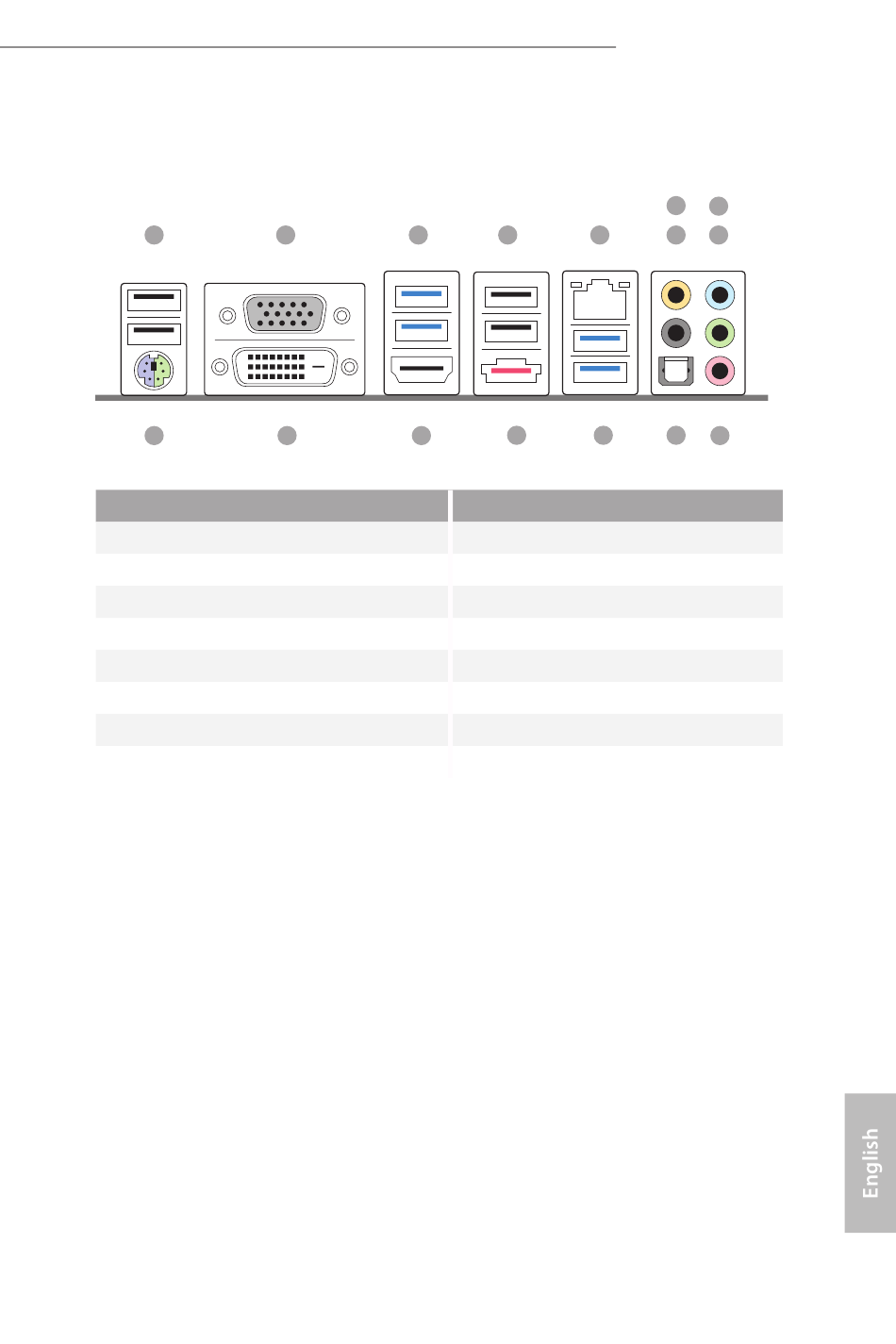

I/O Panel
1
16
No. Description
1 USB 2.0 Ports (USB01)
2 D-Sub Port
3 USB 3.0 Ports (USB3_01)
4 USB 2.0 Ports (USB23)
5 LAN RJ-45 Port*
6 Central / Bass (Orange)
7 Rear Speaker (Black)
8 Line In (Light Blue)
2 3
15 14
4 5
13 12
No. Description
9 Front Speaker (Lime)**
10 Microphone (Pink)
11 Optical SPDIF Out Port
12 USB 3.0 Ports (USB3_23)
13 eSATA Connector***
14 HDMI Port
15 DVI-D Port
16 PS/2 Mouse/Keyboard Port
Z97M OC Formula
6 8
7 9
11
10
