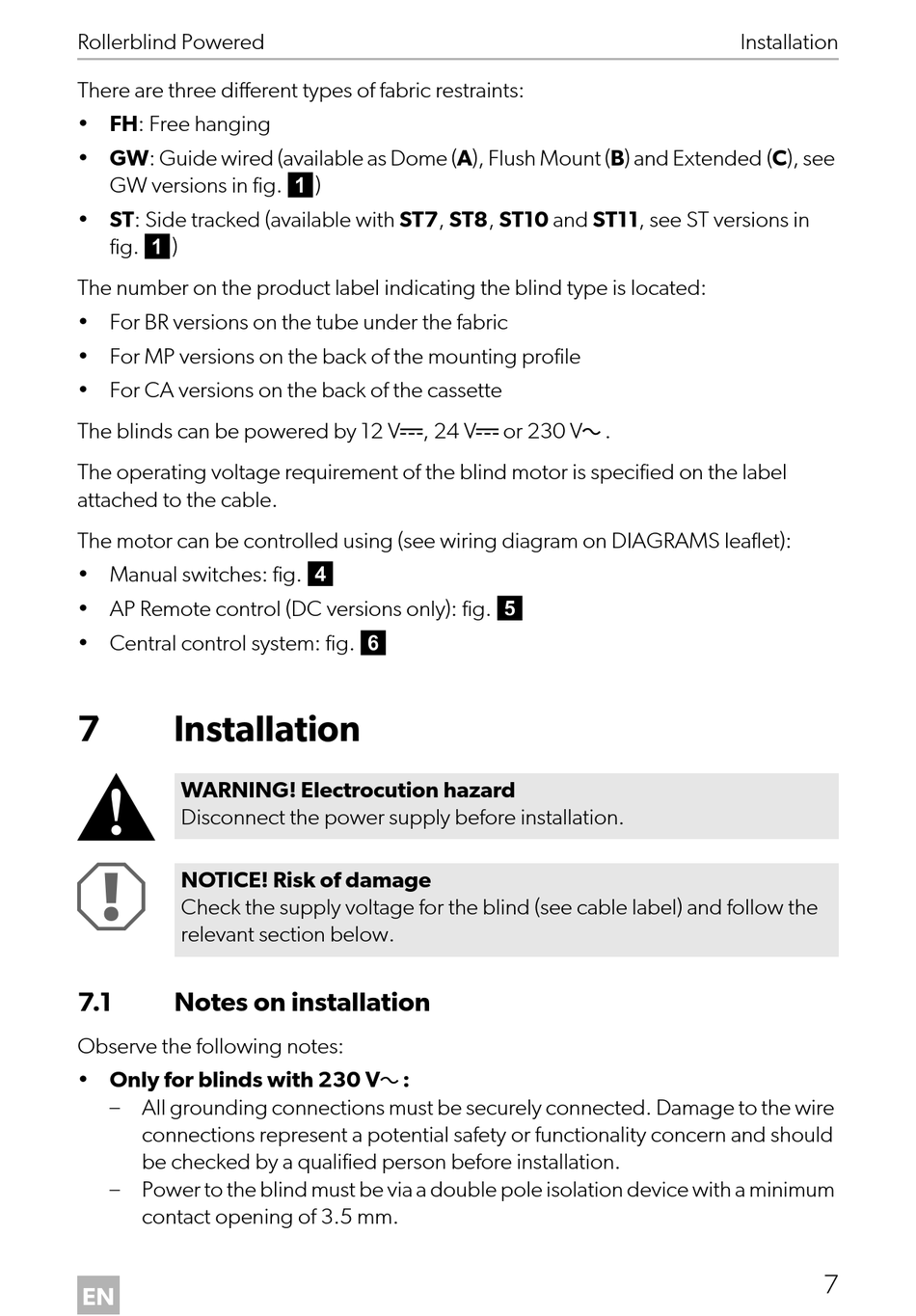

There are three different types of fabric restraints:
• FH: Free hanging
• GW: Guide wired (available as Dome (A), Flush Mount (B) and Extended (C), see
GW versions in fig. 1)
• ST: Side tracked (available with ST7, ST8, ST10 and ST11, see ST versions in
fig. 1)
The number on the product label indicating the blind type is located:
• For BR versions on the tube under the fabric
• For MP versions on the back of the mounting profile
• For CA versions on the back of the cassette
The blinds can be powered by 12 Vg, 24 Vg or 230 Vw.
The operating voltage requirement of the blind motor is specified on the label
attached to the cable.
The motor can be controlled using (see wiring diagram on DIAGRAMS leaflet):
• Manual switches: fig. 4
• AP Remote control (DC versions only): fig. 5
• Central control system: fig. 6
7

Installation

!
WARNING! Electrocution hazard
Disconnect the power supply before installation.
A
NOTICE! Risk of damage
Check the supply voltage for the blind (see cable label) and follow the
relevant section below.
7.1 Notes on installation
Observe the following notes:
• Only for blinds with 230 Vw:
– All grounding connections must be securely connected. Damage to the wire
connections represent a potential safety or functionality concern and should
be checked by a qualified person before installation.
– Power to the blind must be via a double pole isolation device with a minimum
contact opening of 3.5 mm.
