HMW-LC-Bl1-DR
• Load per channel in 230 V power supply of up to 4
A motor load.

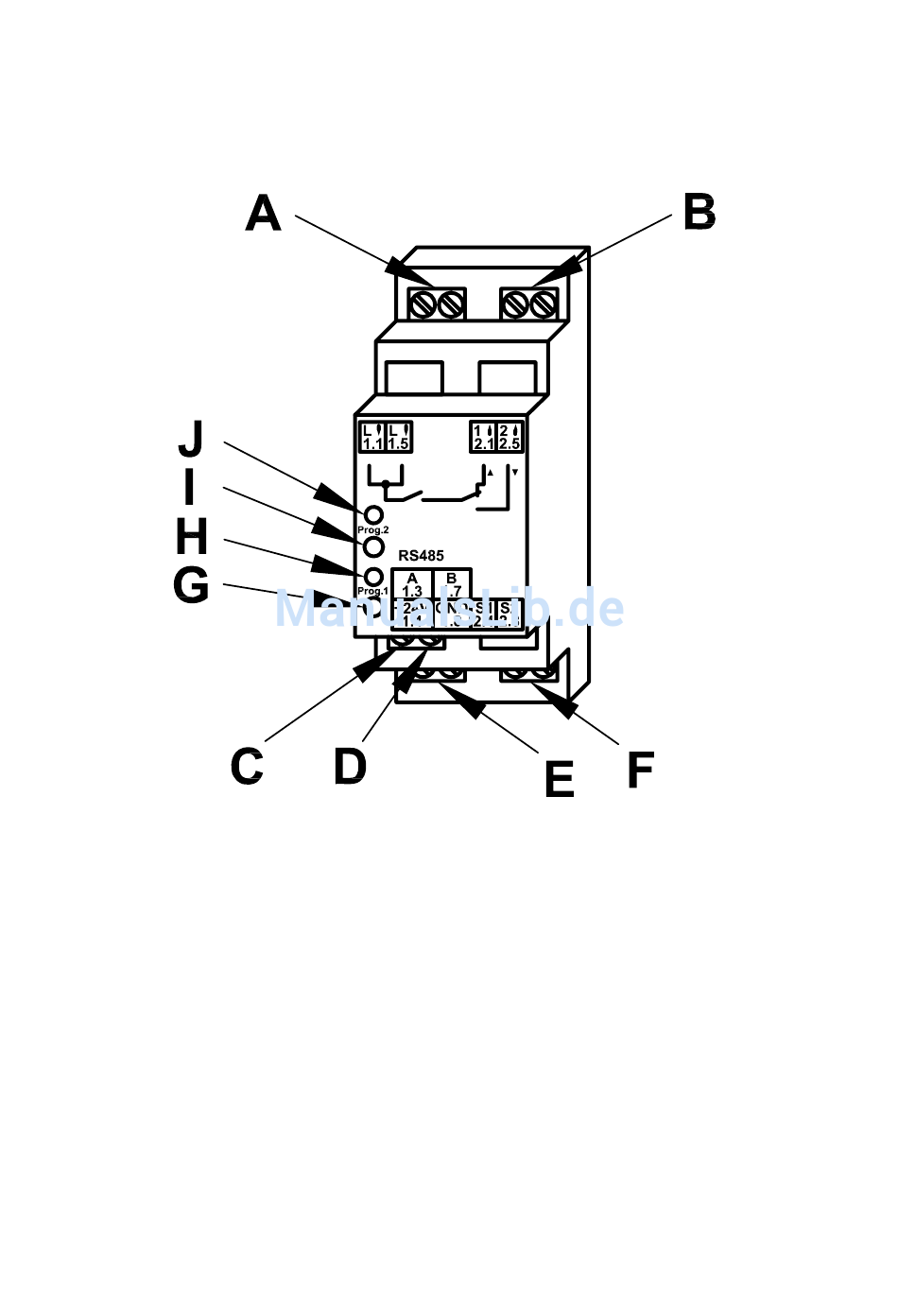

(A) Terminal External conductor connection
(B) Terminals Switch output "Open" and "Close"
(C) Bus A
(D) Bus B
(E) Bus voltage supply
(F) Terminal button inputs
(G) Programming button "Close"
(H) Channel LED "Close"
(I) Programming button "Open"
(J) Channel LED "Open"
