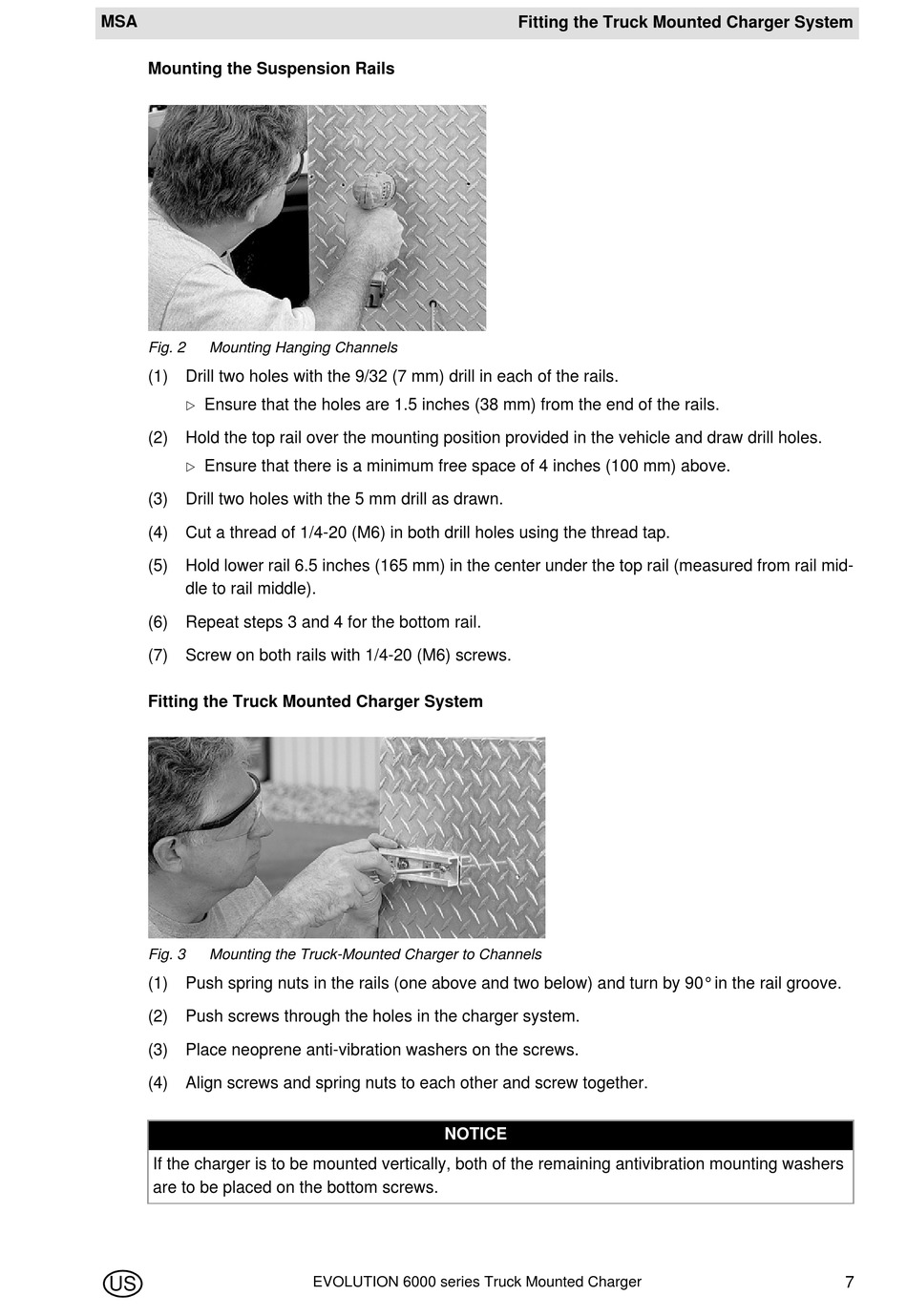

Mounting the Suspension Rails
Fig. 2 Mounting Hanging Channels
(1) Drill two holes with the 9/32 (7 mm) drill in each of the rails.
Ensure that the holes are 1.5 inches (38 mm) from the end of the rails.

(2) Hold the top rail over the mounting position provided in the vehicle and draw drill holes.
Ensure that there is a minimum free space of 4 inches (100 mm) above.

(3) Drill two holes with the 5 mm drill as drawn.
(4) Cut a thread of 1/4-20 (M6) in both drill holes using the thread tap.
(5) Hold lower rail 6.5 inches (165 mm) in the center under the top rail (measured from rail mid-
dle to rail middle).
(6) Repeat steps 3 and 4 for the bottom rail.
(7) Screw on both rails with 1/4-20 (M6) screws.
Fitting the Truck Mounted Charger System
Fig. 3 Mounting the Truck-Mounted Charger to Channels
(1) Push spring nuts in the rails (one above and two below) and turn by 90° in the rail groove.
(2) Push screws through the holes in the charger system.
(3) Place neoprene anti-vibration washers on the screws.
(4) Align screws and spring nuts to each other and screw together.
If the charger is to be mounted vertically, both of the remaining antivibration mounting washers
are to be placed on the bottom screws.
