Die drei Philips/Kreuzschlitzschrauben am Bodenstück
werden herausgeschraubt. Dann wird der gesamte
Innenaufbau mit Hilfe eines angeschraubten Steckverb-
inders herausgezogen. Die Verstärkerplatine wird sofort
sichtbar und auf ihrer Unterseite kann die oben er-
wähnte Brücke durchtrennt werden (siehe Abb. 4).
Vor dem Zusammenbau muß die Kappe vorne am
Gehäuserohr abgeschraubt werden. Danach kann der
gesamte Innenaufbau wieder in das Gehäuserohr ge-
schoben werden, wobei darauf geachtet werden muß,
daß das Interferenzrohr des Mittensystems nicht am
vorderen Rohrende anstößt, sondern mittig vorsteht.
Erst dann kann die Kappe wieder aufgeschraubt wer-
den. Ein in der Kappe liegender Gummiring zentriert
und hält dabei das Interferenzrohr.
Achtung:
Auf keinen Fall darf mit den Finger auf die Kontaktiso-
lierelemente für die Aufnahme der Kapseln und auf
die hochohmigen Anschlüsse der Hybridbausteine ge-
faßt werden, da geringste Schmutz- oder Fettrückstände
die Isolation herabsetzen und Störspannungen verur-
sachen können.
The three Philips screws at the base are unscrewed;
after which the entire inner construction is lifted out
with the aid of a screwed-on plug connector. The am-
plifier board is immediately visible, and the bridge men-
tioned above can be unsoldered from the underside
(see fig. 4).
Before re-assembly, the cap at the front of the micro-
phone must be unscrewed, after which the entire in-
ner construction can be slipped into the housing tube.
Here, care must be taken to ensure that the interfer-
ence tube of the middle system does not come up
against the front end of the tube, but comes centrally
through it. When this is assured, the cap can be re-
placed, whereby a rubber ring located in the cap centers
and holds the interference tube in position.
Note:
Under no circumstances should fingers come into con-
tact with the contact insulating elements which hold
the capsules, nor with the high-resistance terminals
of the hybrid modules, as the slightest residue of dirt
or grease will reduce the insulation and may give rise
to interference voltages.

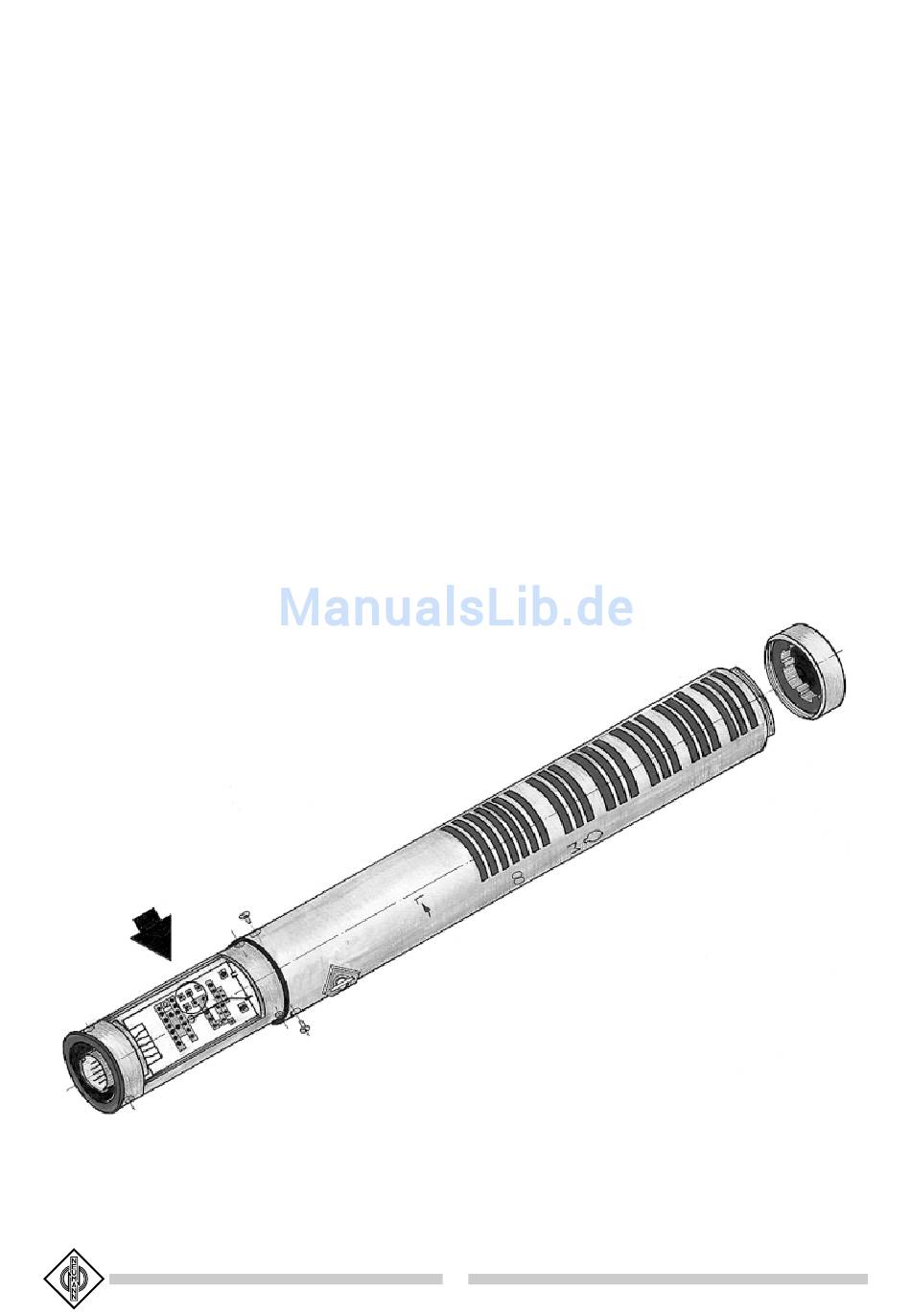

Abb. / Fig. 4
10
