Transmitter Startup

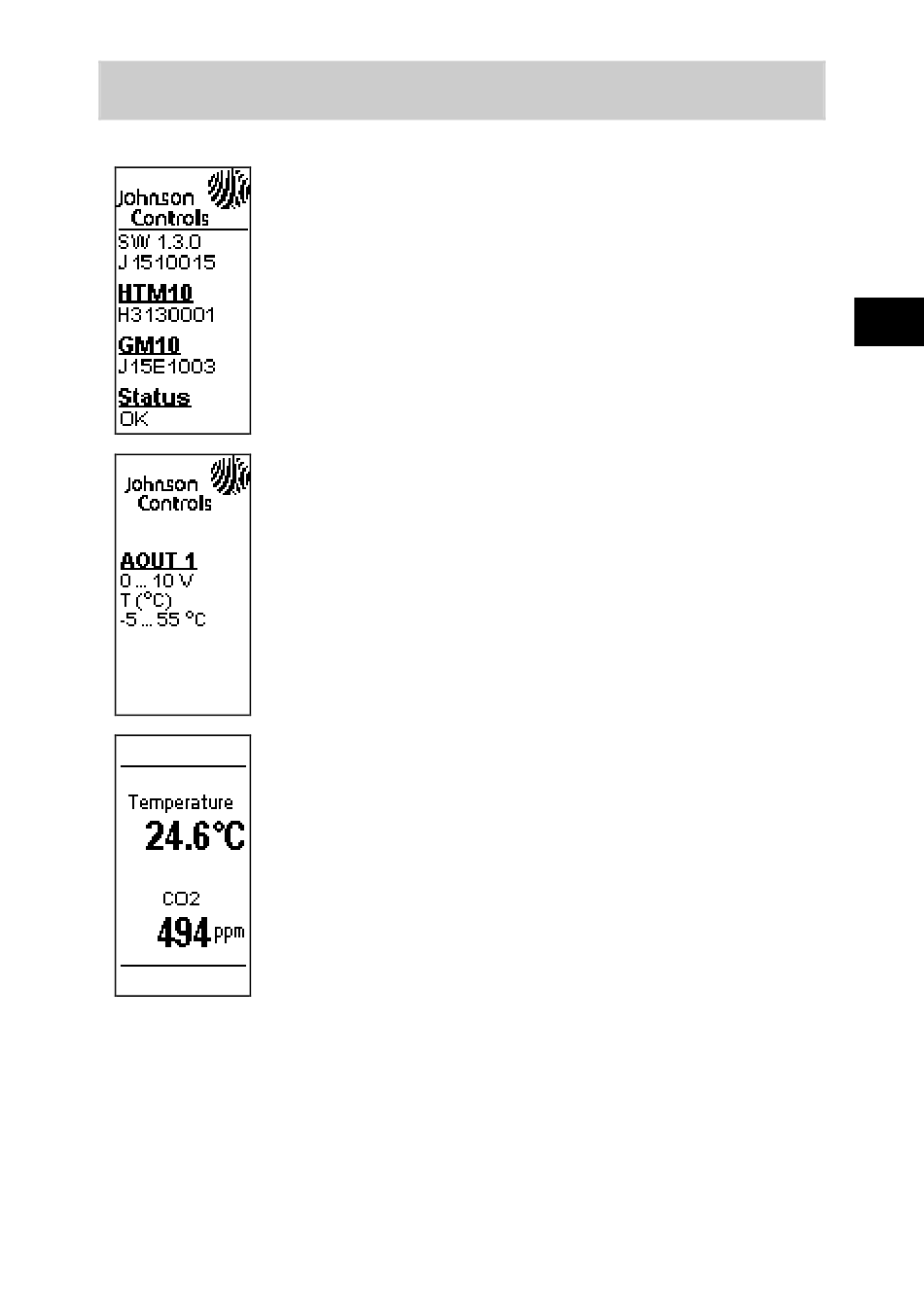

When the transmitter is powered on, it
displays a sequence of information screens.
The screens are shown for a few seconds
each.
The first screen identifies the transmitter and
EN
the connected measurement modules,
and shows if the transmitter is operating
normally (status OK) or if there is an error
(status ERROR).
The following screen(s) show the
configuration of the analog output channels.
After the startup screens the transmitter
shows the measurement screen. It shows
the measured parameters and currently
active indicators.
It is normal for CO measurement to read
2
0 ppm for a few seconds after the startup.
