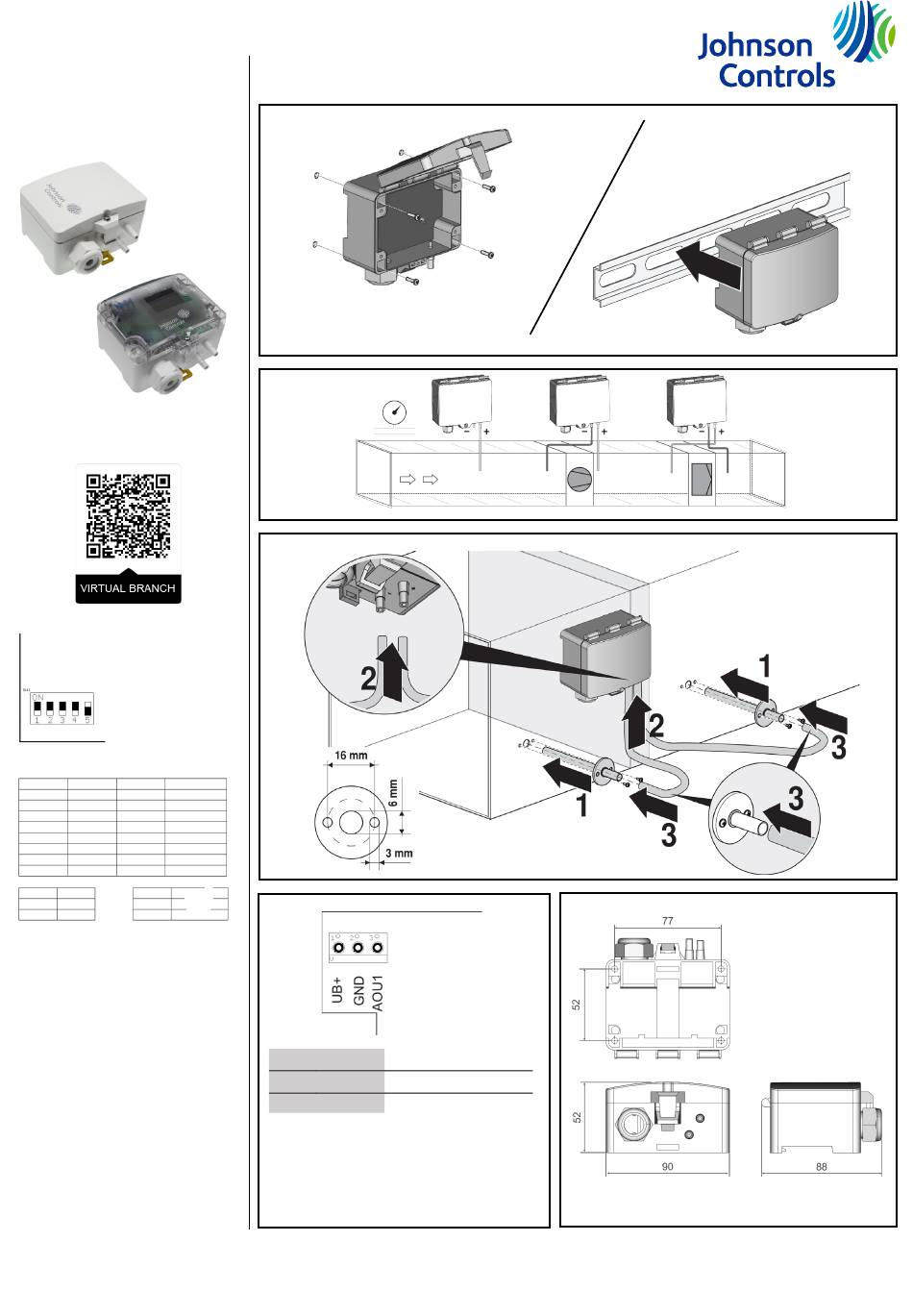

SDP2500
Differential pressure transmitter
Subject to technical alteration
Issue date: 05.10.2020
Technical datasheet SDP2500
DIP settings
DIP1
DIP2
DIP3
Range
OFF
OFF
OFF
0..+2500
ON
OFF
OFF
0..+2000
OFF
ON
OFF
0..+1500
ON
ON
OFF
0..+1000
OFF
OFF
ON
0..+500
ON
OFF
ON
0..+250
OFF
ON
ON
0..+100
ON
ON
ON
-100..+100
DIP4
t
DIP5
LCD
OFF
4 s
OFF
☼ OFF
ON
10 s
ON
☼ ON
☼
1
UB+
2
GND
3
AOU1
________________________________
UB+
→ Power supply 24V
GND
→ Ground
AOUx
→ Analog output 0..10 V
Johnson Controls Systems & Service GmbH, Westendhof 3, 45143 Essen, Germany
OP_SDP2500_Installation_Manual_10-2020.docx © 2020
24 V = | 24 V ~
GND
0..10 V
www.johnsoncontrols.com
