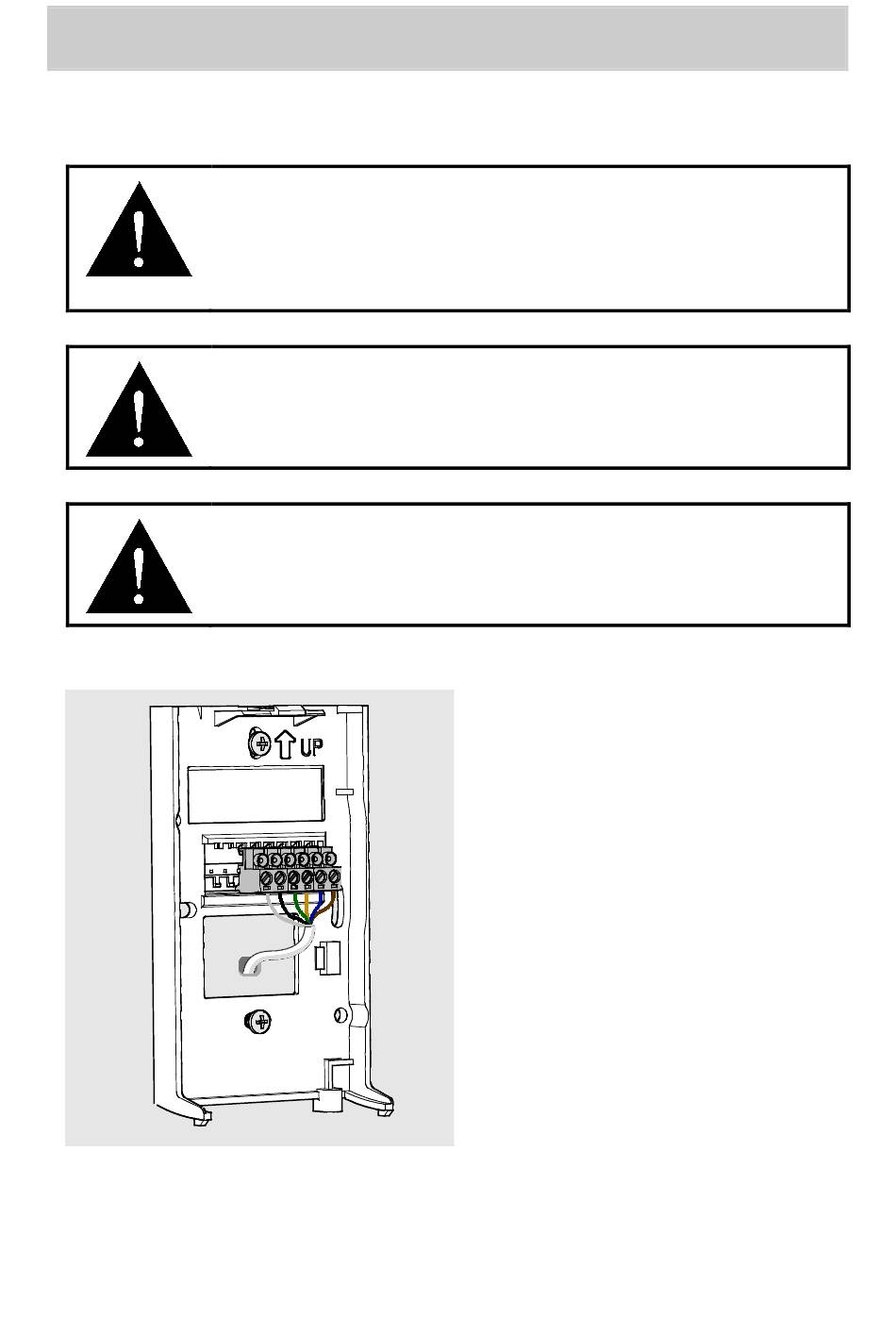

General Wiring Instructions
When wiring, observe the terminal label on the mounting base.
Maximum wire size is 2 mm
10
If the cable between the sensor and the
controller is over 3 meters, it should be shielded.
The shield would be connected at the controller
end of the cable.
Keep high and low voltage wiring separated.
When using multi-stranded wire apply a cable
ferrule to the cable end.
2
(AWG14).
You can bring the cable to the
housing from above or from
behind (recommended).
If you are wiring a
CD-WAx-00-2 series
transmitter from above, use a
< Ø 5 mm cable, and route it
from the left side of the
mounting base.
