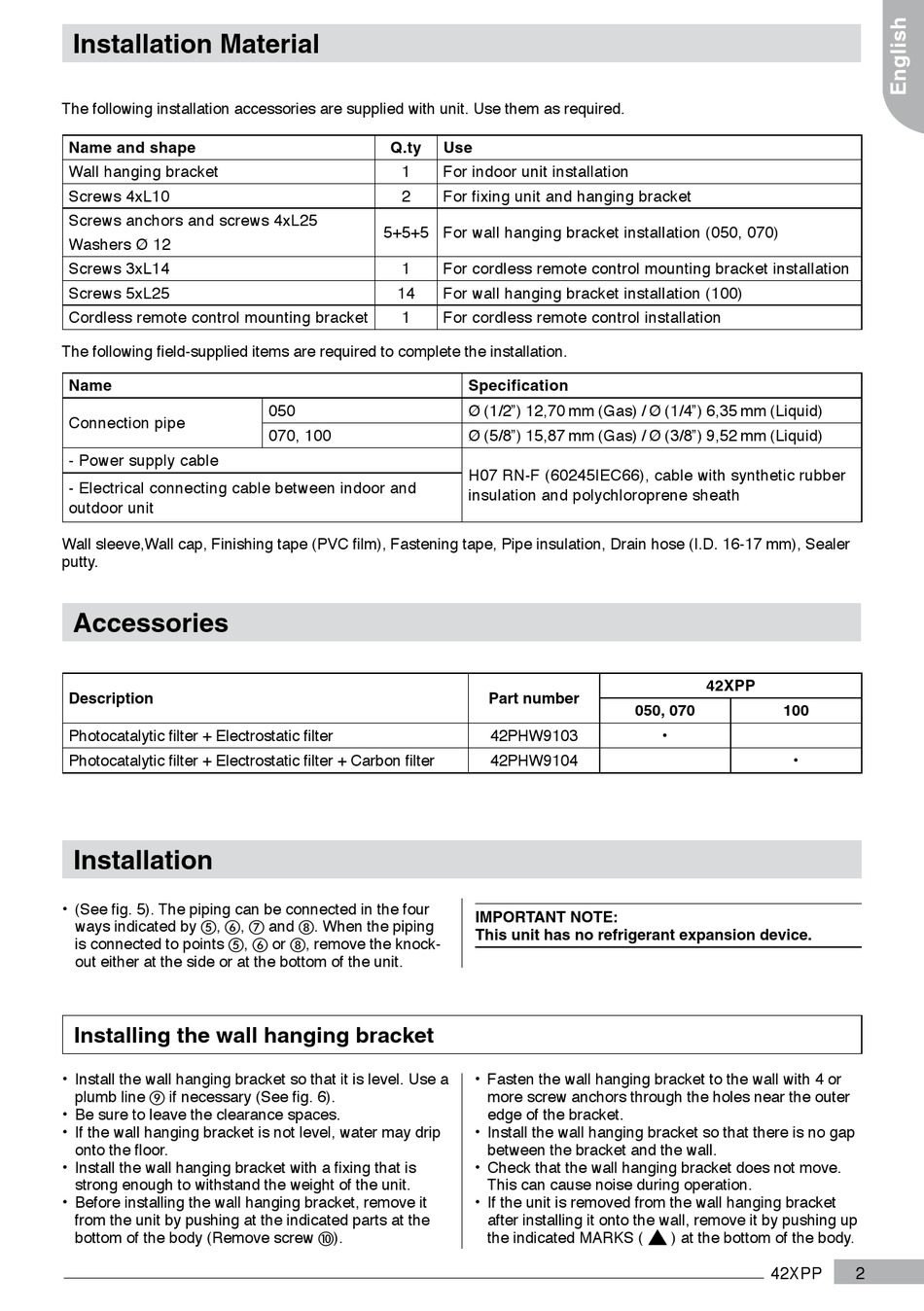

Installation material

The following installation accessories are supplied with unit. Use them as required.
name and shape
Wall hanging bracket
Screws 4xL10
Screws anchors and screws 4xL25
Washers Ø 12
Screws 3xL14
Screws 5xL25
Cordless remote control mounting bracket
The following field-supplied items are required to complete the installation.
name
Connection pipe
- Power supply cable
- Electrical connecting cable between indoor and
outdoor unit
Wall sleeve,Wall cap, Finishing tape (PVC film), Fastening tape, Pipe insulation, Drain hose (I.D. 16-17 mm), Sealer
putty.

Accessories

Description
Photocatalytic filter + Electrostatic filter
Photocatalytic filter + Electrostatic filter + Carbon filter

Installation

• (See fig. 5). The piping can be connected in the four
ways indicated by e, f, g and h. When the piping
is connected to points e, f or h, remove the knock-
out either at the side or at the bottom of the unit.
Installing the wall hanging bracket
• Install the wall hanging bracket so that it is level. Use a
plumb line i if necessary (See fig. 6).
• Be sure to leave the clearance spaces.
• If the wall hanging bracket is not level, water may drip
onto the floor.
• Install the wall hanging bracket with a fixing that is
strong enough to withstand the weight of the unit.
• Before installing the wall hanging bracket, remove it
from the unit by pushing at the indicated parts at the
bottom of the body (Remove screw j).
Q.ty Use
1 For indoor unit installation
2 For fixing unit and hanging bracket
5+5+5 For wall hanging bracket installation (050, 070)
1 For cordless remote control mounting bracket installation
14 For wall hanging bracket installation (100)
1 For cordless remote control installation
050
070, 100
Specification
Ø (1/2") 12,70 mm (Gas) / Ø (1/4") 6,35 mm (Liquid)
Ø (5/8") 15,87 mm (Gas) / Ø (3/8") 9,52 mm (Liquid)
H07 RN-F (60245IEC66), cable with synthetic rubber
insulation and polychloroprene sheath
Part number
050, 070
42PHW9103
42PHW9104
ImPORTAnT nOTE:
This unit has no refrigerant expansion device.
• Fasten the wall hanging bracket to the wall with 4 or
more screw anchors through the holes near the outer
edge of the bracket.
• Install the wall hanging bracket so that there is no gap
between the bracket and the wall.
• Check that the wall hanging bracket does not move.
This can cause noise during operation.
• If the unit is removed from the wall hanging bracket
after installing it onto the wall, remove it by pushing up
the indicated MARKS (
42XPP
100
•
•
) at the bottom of the body.
42XPP 2
