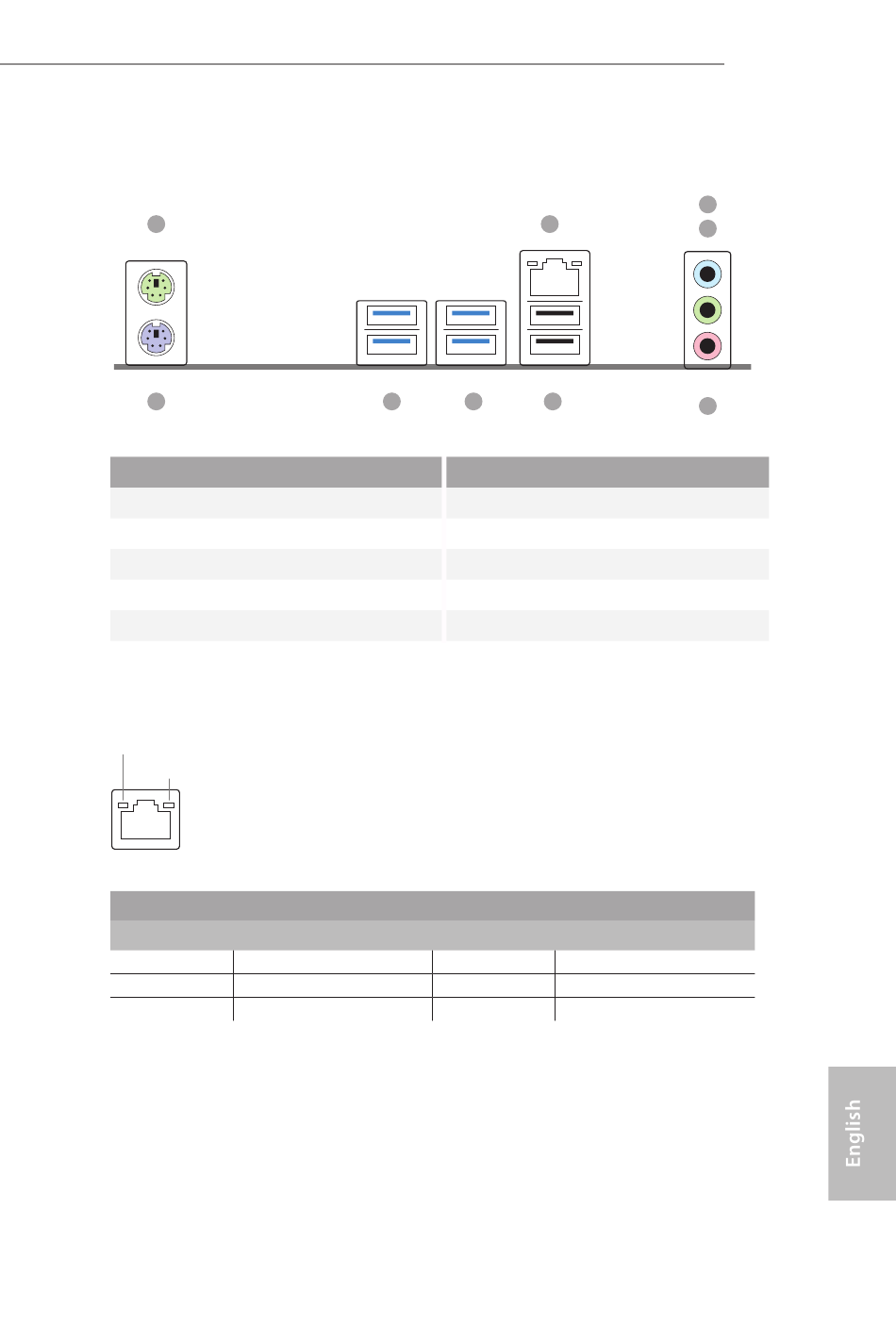

I/O Panel
1
9
No. Description
1 PS/2 Mouse Port
2 LAN RJ-45 Port*
3 Line In (Light Blue)
4 Front Speaker (Lime)**
5 Microphone (Pink)
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
2
8 7 6
No. Description
6 USB 2.0 Ports (USB_01)
7 USB 3.0 Ports (USB3_23)
8 USB 3.0 Ports (USB3_01)
9 PS/2 Keyboard Port
Speed LED
Status
Off
Orange
Green
3
4
5
Description
10Mbps connection
100Mbps connection
1Gbps connection
E3V5 WS
