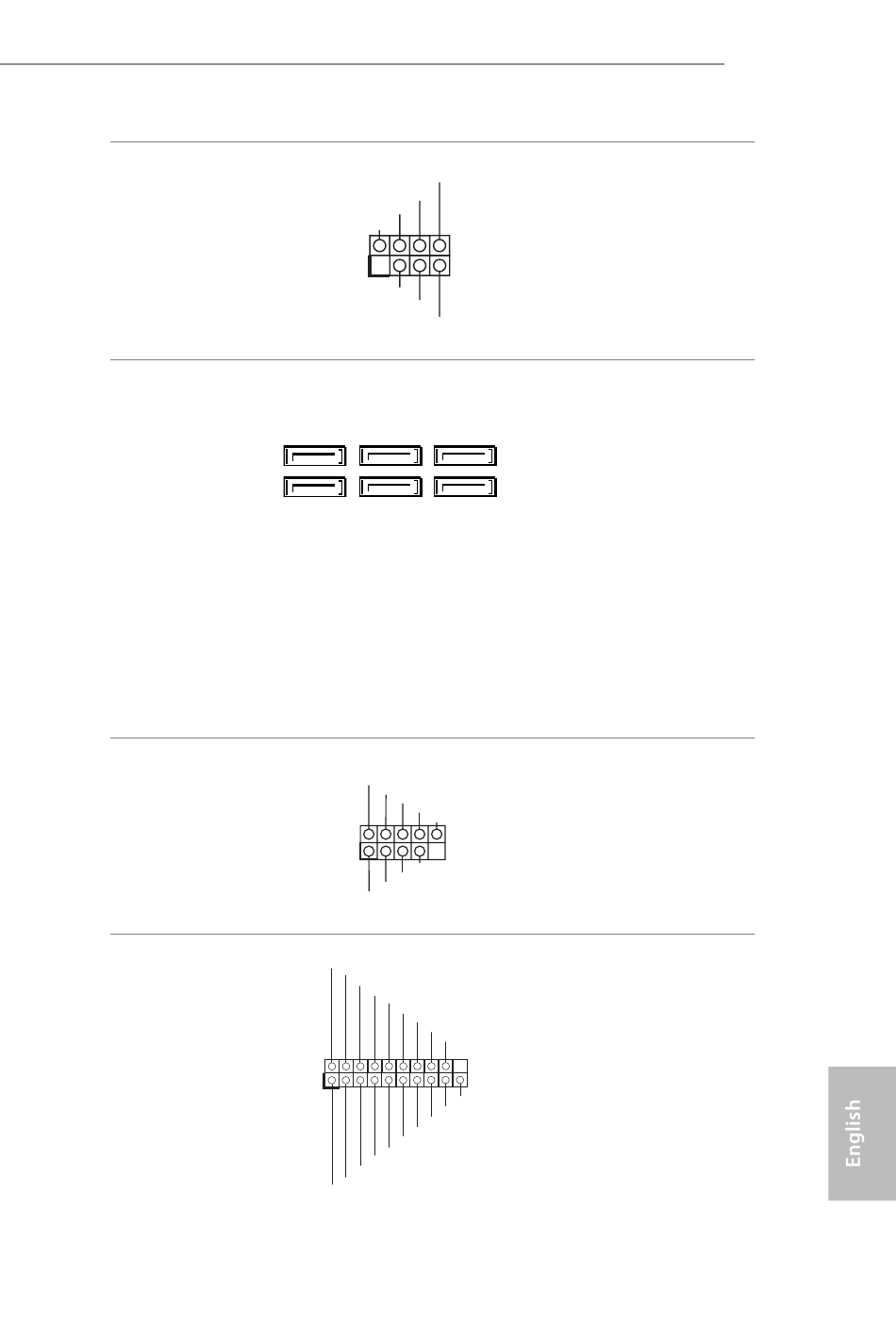

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.1, No. 11)
Serial ATA3 Connectors
(SATA3_0:
SATA3_4
see p.1, No. 12)
(SATA3_1:
see p.1, No. 14)
SATA3_5
(SATA3_2:
see p.1, No. 9)
(SATA3_3:
see p.1, No. 15)
(SATA3_4:
see p.1, No. 17)
(SATA3_5:
see p.1, No. 16)
USB 2.0 Headers
(9-pin USB2_3)
(see p.1, No. 18)
(9-pin USB4_5)
(see p.1, No. 19)
USB 3.0 Header
(19-pin USB3_4_5)
(see p.1, No. 6)
SPEAKER
DUMMY
DUMMY
+5V
1
PLED+
PLED+
PLED-
SATA3_2 SATA3_0
SATA3_3 SATA3_1
USB_PWR
P-
P+
GND
DUMMY
1
GND
P+
P-
USB_PWR
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
1
Vbus
IntA_P_SSRX-
IntA_P_SSRX+
GND
IntA_P_SSTX-
IntA_P_SSTX+
GND
IntA_P_D-
IntA_P_D+
ID
Please connect the
chassis power LED and
the chassis speaker to this
header.
These six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
There are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
Besides four USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. Each USB
3.0 header can support
two ports.
E3V5 WS
