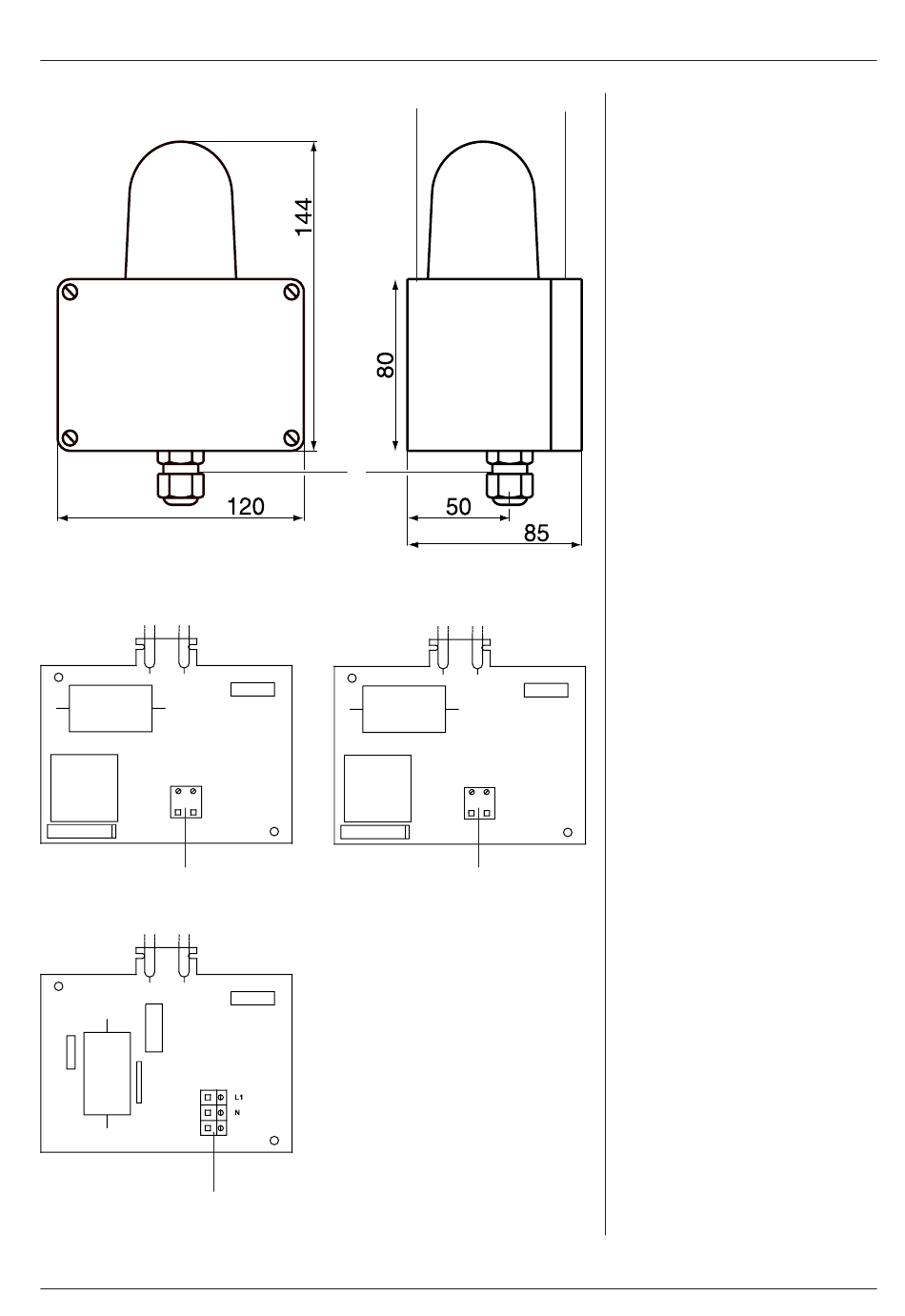

Overview of components
WBLR / WBSR
1 Housing base compri-
sing flash shroud, PCB
and flash tubes
Flash shroud colours:
red, yellow, orange,
green, blue, clear, white
2 Housing cover
3 M20x1,5 cable entry
4 Terminals
a) DC version
b) AC version
extra-low voltage
(<42 V)
c) AC version
low voltage
(>110 V)
Assembly and connection
1. Screw the housing base
in place.
2. Place the connecting
cable on the terminal.
Ensure correct polarity
on DC units!
3. Close the cable entry.
4. Place the housing cover
in place and screw in
place.
5. Check that the unit
functions properly.
