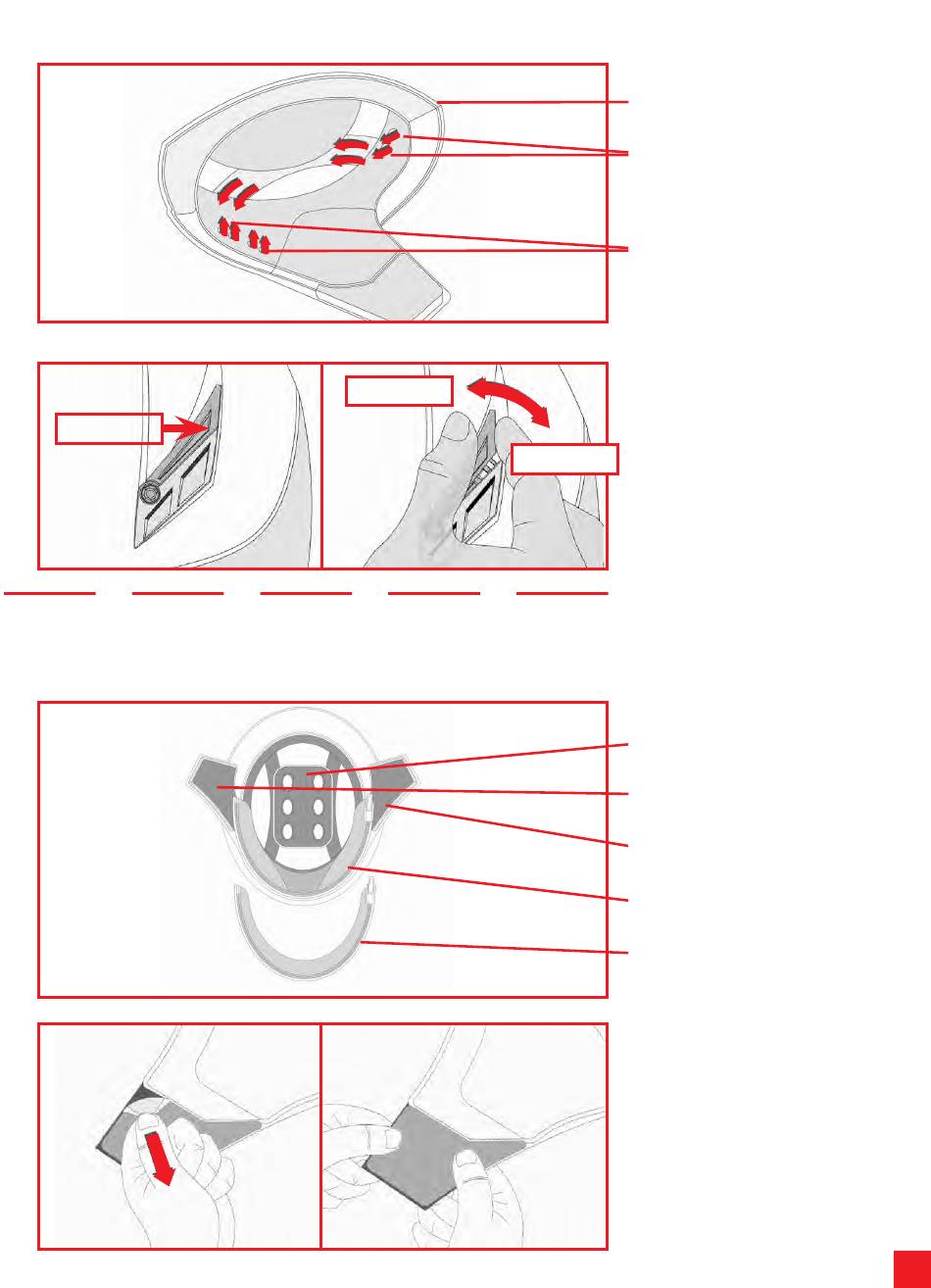

2) VENTILATION SYSTEM

2.1) Opening/closing air vents
Cursor
3) Inners
The crown pad, right and left cheek pads, neck roll and throat cover are removable and washable. To remove and install the inners,
follow the instructions and observe the figures below.
Open
Closed
Front air vents
Channels through polystyrene
Side air extractors
To open or close the air vents, move
the cursor as shown in the figure, until it
clicks into position.
Crown pad
Right cheek pad
Left cheek pad
Fabric neck roll (Blade)
Padded neck roll (Blade LX)
3.1) Cheek pad Removal / Installation
To remove the cheek pads, grasp them
and pull in the direction indicated by the
arrow (1) to remove the Velcro (applied to
the cheek pads), as shown in the figure
below.
To refit the cheek pads, place them in
their housings attaching the Velcro per-
fectly, as shown in the figure below.
