FAN DISMOUNTING AND DISPOSAL
Air Basic 100 / 125 / 150
Disconnect the fan from power mains prior to any
operations on the device.

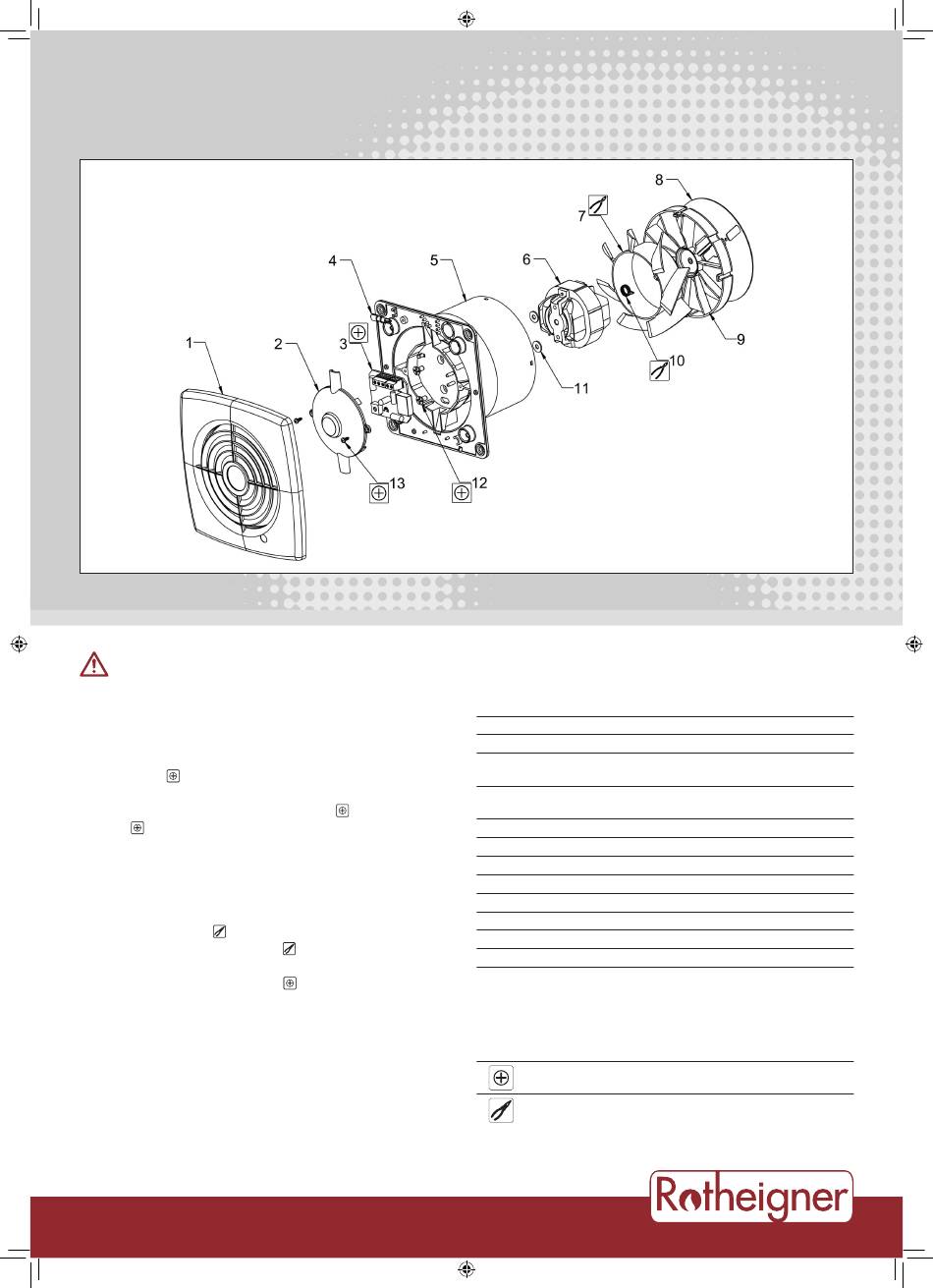

DISMOUNTING
1. Remove the front panel 1.
2. Remove the driver chamber cover 2 by unscrewing its two
screws 13 .
3. Disconnect the power supply and the connection cables at
the connection terminal of the driver 3 . Remove the driv-
er 3 from the fan housing 5.
4. Unscrew the screws of the fan housing 5 and remove it from
the installation site.
5. Remove the non-return valve 9 from the fan housing 5, then
carefully take off the valve shutter 8 from the non-return
valve 9.
6. Pull the impeller 7 from the motor 6.
7. Remove the impeller band 10
impeller 7.
8. Unscrew the motor screws 12 .
9. Remove the motor 6.
10. Remove the elastic washers 11.
NOTE: The plastic screwdriver 4 must only be used to adjust the
timer potentiometer.
HORNBACH Baumarkt AG
Hornbachstraße 11
76879 Bornheim / Germany
from the drive shaft of the
www.hornbach.com
Dispose of the individual components according to the
applicable regulations!
Component
1 Front panel
2 Driver chamber cover
3 Driver
4 Plastic screwdriver to ad-
just timer potentiometer
5 Fan housing
6 Motor
7 Impeller
8 Valve shutter
9 Non-return valve
10 Impeller band
11 Elastic washers
12 Motor screws
13 Driver chamber cover
screws
Tool
Cross-tip screwdriver
Pliers
Material
ABS
ABS
Laminate, copper, solder,
others ( electronic part)
ABS
ABS
Steel, copper, others
PP
PET
ABS
Steel
Fiber
Stainless steel
Stainless steel
