Illustration 2
Alternative 1 Rear of
panel 3010, without black,
red or yellow sockets.

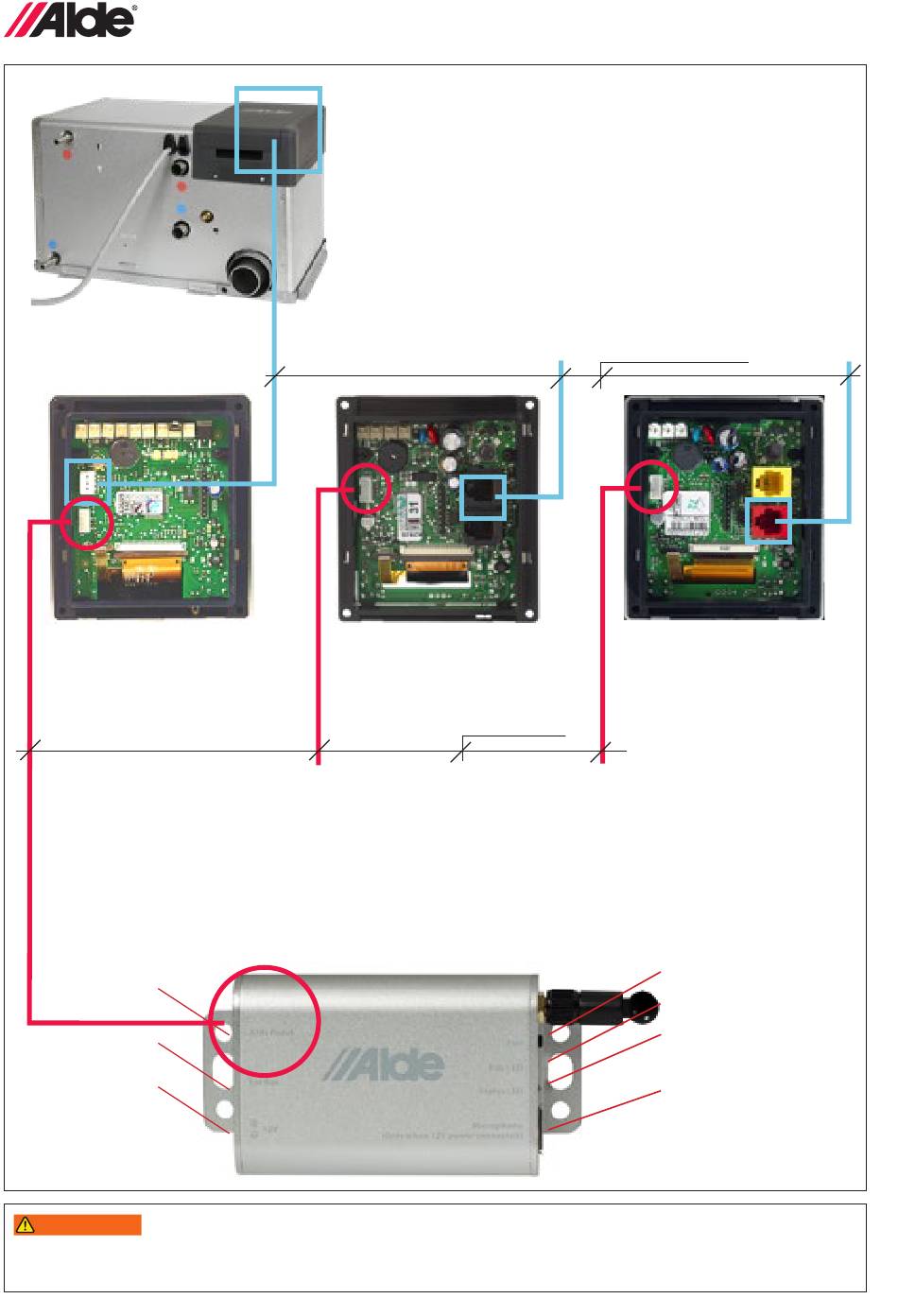

Connecting the Gateway with the Alde control panel
Depending on which heating system and Alde control panel version you have, the rear may look
different and the connection socket for accessories will be in a different place.
To identify the panel version, compare your Alde control panel with the three alternatives above.
Once you have identified the correct Alde control panel version, connect the panel cable to the
socket marked with a red circle on the alternative above, as well as to the socket marked Alde
Panel on the Gateway.
Alde Panel
incoming
connection
LIN bus
12 V incoming
connection when
connecting to
12 V battery
Risk of damaging the Alde Voice Control electronics
WARNING
The microphone may only be connected to the USB socket if the Gateway is directly connected to
a 12 V battery.
22
Disconnecting the power supply
Before you begin connecting the Gateway to the Alde
control panel, you must disconnect the power supply. You
do this on the rear of the Alde control panel.
Depending on which heating system and Alde control panel
version you have, the rear may look different and the con-
nections will be made in different places.
To identify the power supply connection socket, compare
your Alde control panel with the three alternatives marked
with a blue square, see below.
Alternative 2 Rear of
panel 3020 HE and 3020,
with black sockets.
Panel cable
Power supply
Alternative 3 Rear of
panel 3020 HE, with
yellow/red sockets.
Pair button
Blue Pair LED
Multicoloured
Status LED
USB socket
to microphone if
connected to
12 V battery
