Danger from energised parts!
All connections and wiring must be disconnected from the power supply
and secured against unauthorised activation.
Danger from energised parts!
After disconnecting, the energised plug and socket connection
components must be immediately closed off using the protective caps!

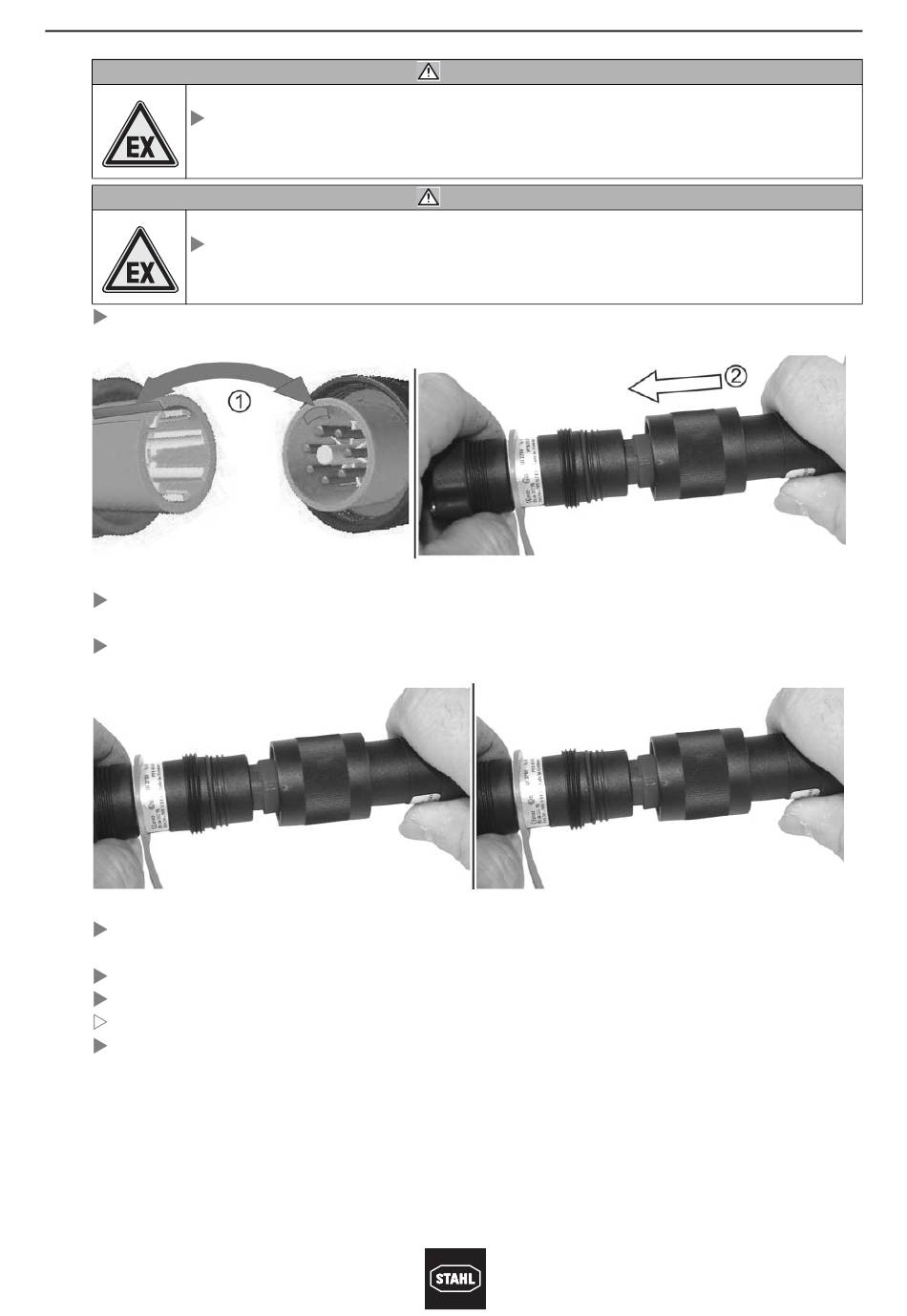

Check for damage before the plug is inserted into the socket.
Make sure the plug with its guide nose is oriented correctly while plugging into the
corresponding guide groove (1).
Insert until the plug encounters the first end-stop (2).
Rotate the connector plug/coupler by about 30° to the right until you reach the second
stop.
Fully insert the plug into the socket.
Screw on the coupling ring/union nut.
The mechanical connection as well as the IP protection are now established.
Disconnection of the plug connection proceeds by reversing the order.
8591609300
S-BA-8591/2-01-en-04/09/2009
WARNING
WARNING
Ex Plug Connector miniCLIX
8591/2
Commissioning
