Before fitting of flange sockets, device plugs and angled adaptors in flameproof
enclosures, verify the following:
Isolate all connections and cabling from the mains power supply and secure against
being switched ON inadvertently.
Threaded openings in the flameproof protective enclosure must meet the minimum
requirements of IEC/EN 60079-1, Section 5.3, Table 3.
Flange sockets, device plugs and angled adaptors as well as the corresponding
openings and threaded apertures are to be checked for intactness and cleanliness.
Threads and threaded opening correspond to each other.
Seal ring is checked for correct positioning and intactness.

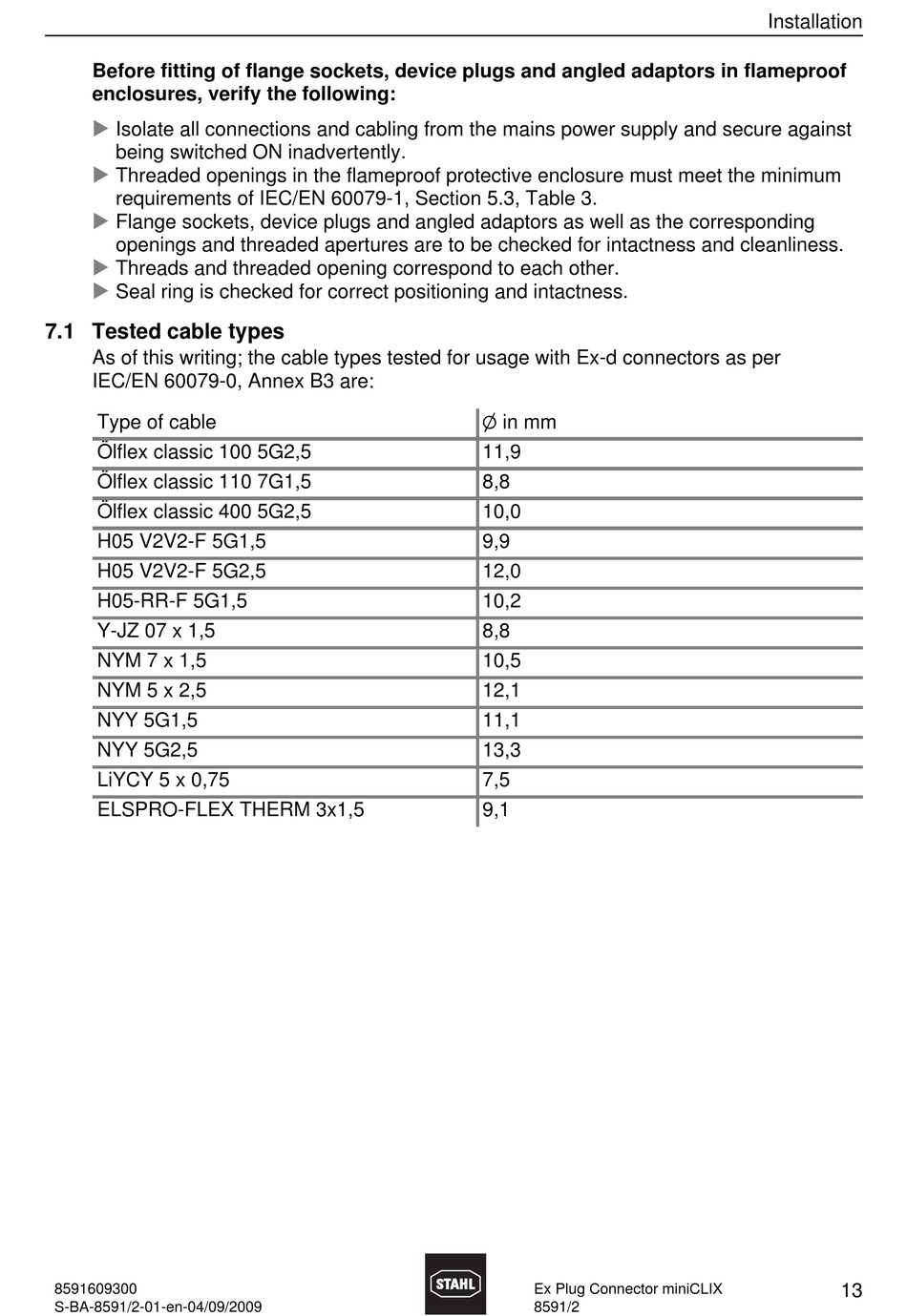

7.1 Tested cable types

As of this writing; the cable types tested for usage with Ex-d connectors as per
IEC/EN 60079-0, Annex B3 are:
Type of cable
Ölflex classic 100 5G2,5
Ölflex classic 110 7G1,5
Ölflex classic 400 5G2,5
H05 V2V2-F 5G1,5
H05 V2V2-F 5G2,5
H05-RR-F 5G1,5
Y-JZ 07 x 1,5
NYM 7 x 1,5
NYM 5 x 2,5
NYY 5G1,5
NYY 5G2,5
LiYCY 5 x 0,75
ELSPRO-FLEX THERM 3x1,5
8591609300
S-BA-8591/2-01-en-04/09/2009
d in mm
11,9
8,8
10,0
9,9
12,0
10,2
8,8
10,5
12,1
11,1
13,3
7,5
9,1
