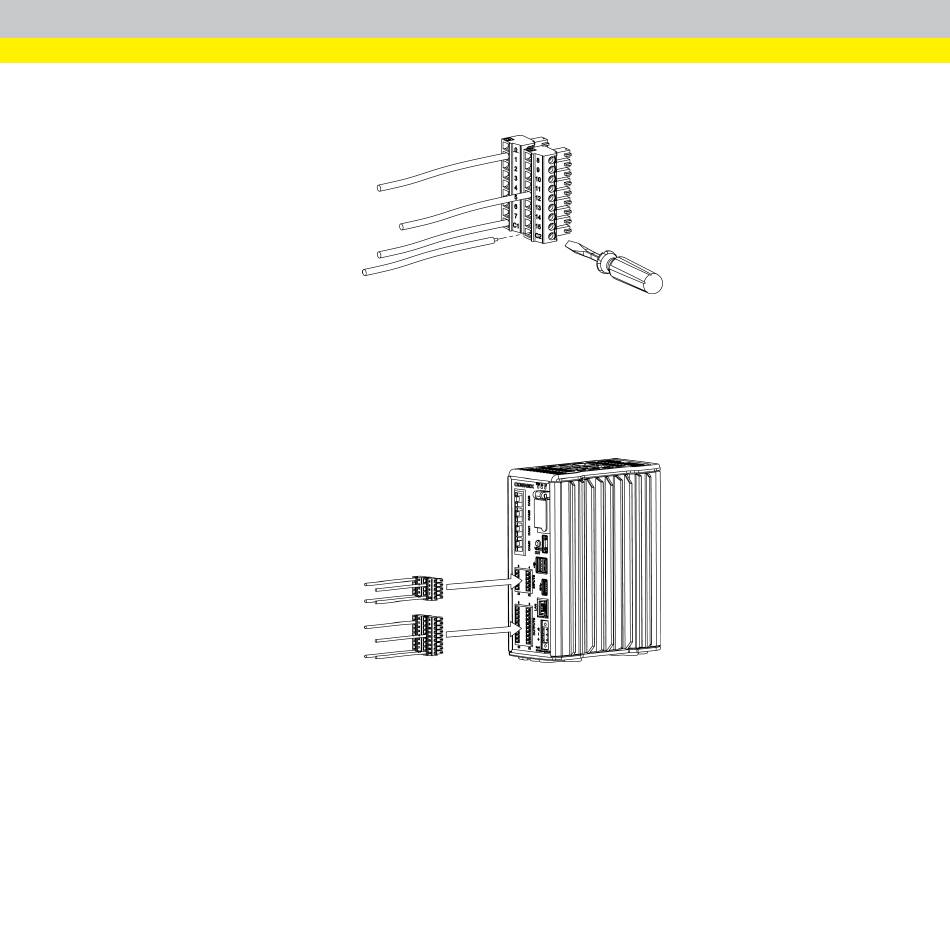

3. Insert the input and output wires (16 - 26 AWG, solid or stranded wire) into
the terminals.
4. Tighten the wire retention screws to secure the wire leads in the terminal
block; the maximum torque is 0.25 Nm (2.2 in-lb).
5. Insert the terminal blocks into the corresponding INPUTS and OUTPUTS
terminal block connectors on the vision controller, and push in until firmly
seated.
6. Connect the other end of the input and output wires to the applicable I/O
device.
