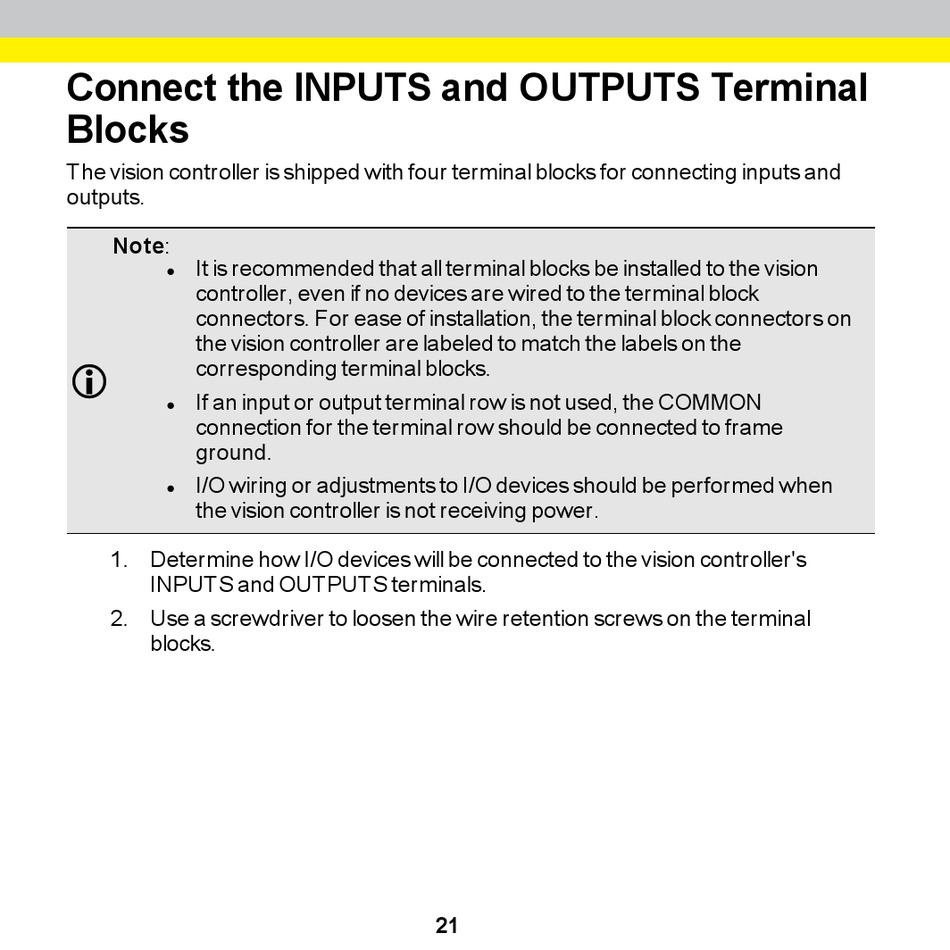

Connect the INPUTS and OUTPUTS Terminal
Blocks
The vision controller is shipped with four terminal blocks for connecting inputs and
outputs.
Note:
It is recommended that all terminal blocks be installed to the vision
l
controller, even if no devices are wired to the terminal block
connectors. For ease of installation, the terminal block connectors on
the vision controller are labeled to match the labels on the
corresponding terminal blocks.
If an input or output terminal row is not used, the COMMON
l
connection for the terminal row should be connected to frame
ground.
I/O wiring or adjustments to I/O devices should be performed when
l
the vision controller is not receiving power.
1. Determine how I/O devices will be connected to the vision controller's
INPUTS and OUTPUTS terminals.
2. Use a screwdriver to loosen the wire retention screws on the terminal
blocks.
21
