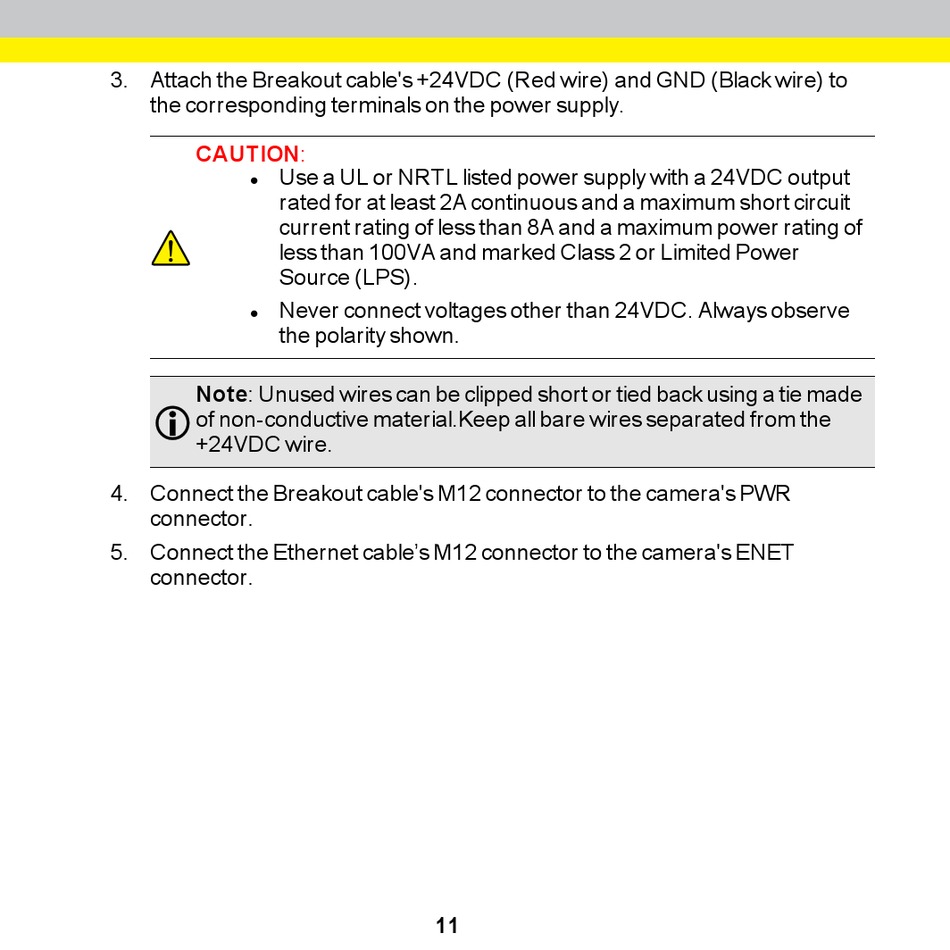

3. Attach the Breakout cable's +24VDC (Red wire) and GND (Black wire) to
the corresponding terminals on the power supply.
CAUTION:
Use a UL or NRTL listed power supply with a 24VDC output
l
rated for at least 2A continuous and a maximum short circuit
current rating of less than 8A and a maximum power rating of
less than 100VA and marked Class 2 or Limited Power
Source (LPS).
Never connect voltages other than 24VDC. Always observe
l
the polarity shown.
Note: Unused wires can be clipped short or tied back using a tie made
of non-conductive material.Keep all bare wires separated from the
+24VDC wire.
4. Connect the Breakout cable's M12 connector to the camera's PWR
connector.
5. Connect the Ethernet cable's M12 connector to the camera's ENET
connector.
11
