1.2 Front Panel LEDs

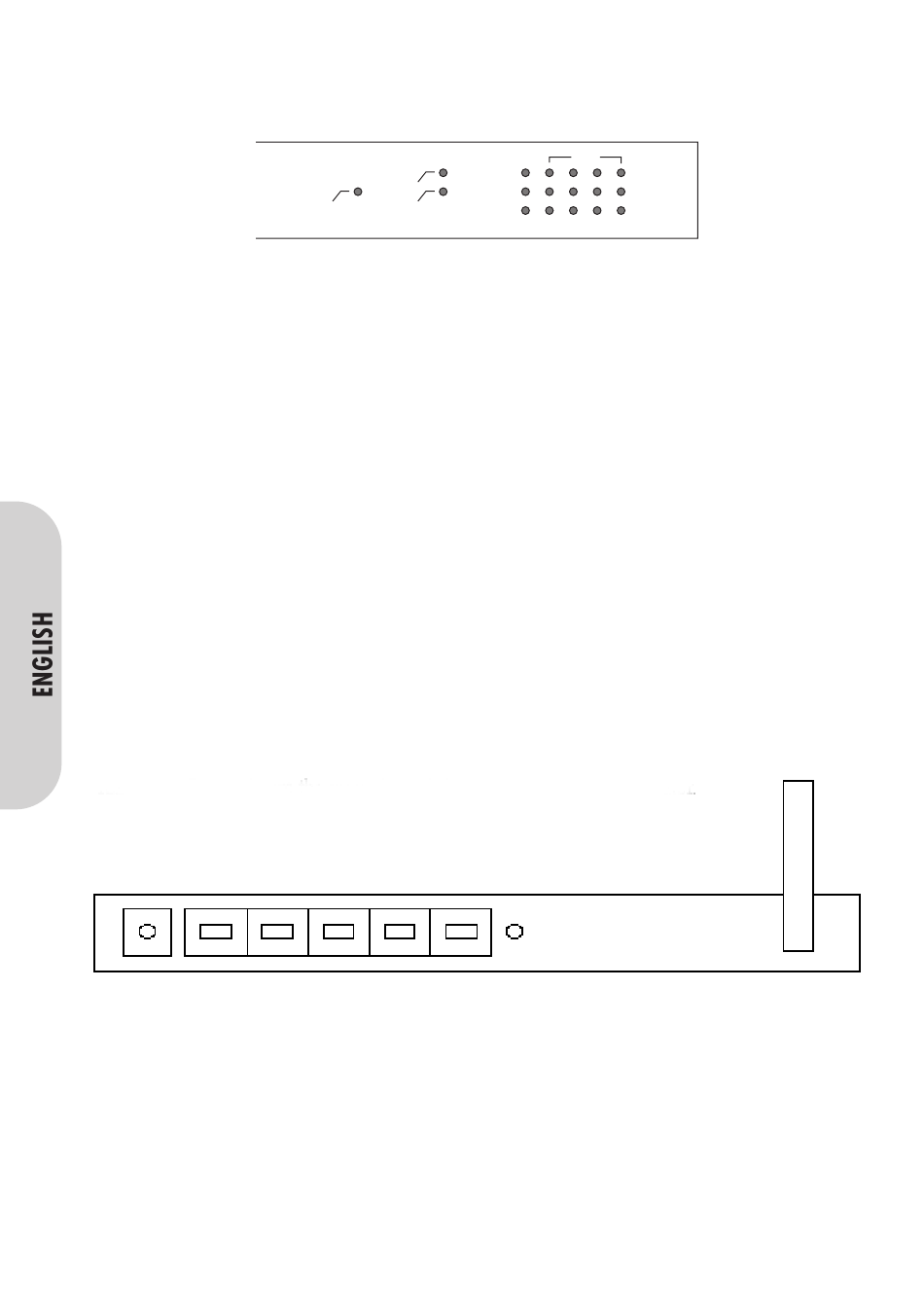

The following figure shows the front view of the BAR-WL Wireless Router.
• PWR (Power)
• DIAG (Diagnostic)
• WLAN (Wireless LAN)
Enable:
Activity:
• WAN (WAN port)
Link:
Activity:
• LAN (LAN ports)
Link/Act:
FD/Col:
1.3 Rear Panel & Connections
The following figure shows the rear view of the BAR-WL Wireless Router.
Power WAN
• Init Press the Initialization button quickly to reboot and re-initialize the device. Press the Initialization button of
longer than 3 seconds to clear any configuration and reset the router back to factory default values.
This port is for connecting to the Wide Area Network ADSL or Cable Modem.
• WAN
• LAN 1-4 These ports are used to connect computers and peripherals to the BAR-WL.
• Power This socket is used to connect the external power supply to the router.
5
WLAN
Link
Power
Act
Green Steady on when power is on.
Red Light up during power on self-check. Not lit in normal operation.
Green Steady on when AP (Access Point) is enabled.
Green Blinking when data is following through AP.
Green Steady on when ADSL/Cable Modem is properly connected.
Yellow Blinking when data is following through WAN port.
Green Steady on when link is up and it operates at 100Mbps.
Yellow Steady on when link is up and it operates at 10Mbps.
Green/Yellow Blinking when data is following through this LAN port.
Green Steady on when it operates at full duplex mode.
Off at half duplex mode.
Blinking when collision is occurred on this port.
1 2 3
WAN LAN
100M
Link/Act
Col/Fdx
1 2 3 4
4 Init
